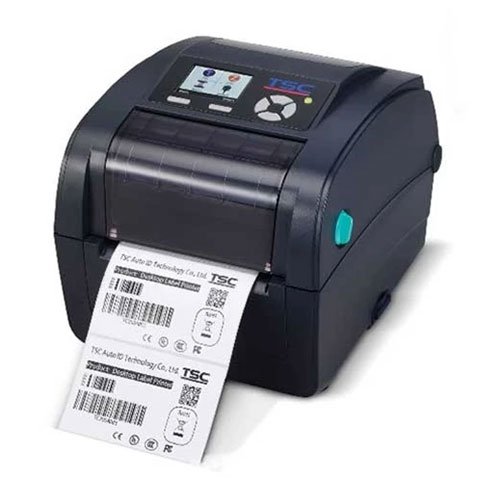

TSC TC310 – Barcode Label Printer – 300 dpi – Thermal Transfer
Full specifications (PDF)
TSC TC Series Barcode Label Printer Model Overview
Key Features:
- Compact size for space-saving design.
- High print quality at resolutions of 203 DPI and 300 DPI.
- Standard memory: 128 MB Flash and 64 MB SDRAM for TC210 and TC310.
- Durable double-walled clamshell design.
- Color TFT display for easier navigation (available in TC210 & TC310).
- Multiple interfaces: USB 2.0, parallel, serial, Ethernet, and optional Bluetooth.
- Cerner certified and compliant with safety regulations.
Specifications:
- Printing Method: Thermal Transfer & Direct Thermal
- Max Print Speed: 152 mm/s (6") for TC210/TC310; 102 mm/s (4") for TC300
- Max Print Width: 108 mm (4.25") for TC210; 105.6 mm (4.15") for TC300
- Max Print Length: 2,286 mm (90 inches) up to 25,400 mm (1,000 inches)
- Physical Dimension: 203 mm (W) x 191.5 mm (H) x 259.3 mm (D)
- Weight: 2.2 kg (4.85 lbs)
- Label Roll Capacity: 110 mm (1.57" to 4.33") diameter
- Power Supply: External universal switching power supply, AC input: 100-240V
- Environmental Condition: Operating: 5 to 40 °C, 25-85% non-condensing
Recommended Accessories
Category
- Printer Accessories (2)
Recommended Accessories for Model: TSC 99-059A002-2001 Barcode Label Printer
Top Printer Accessories Purchased With TSC 99-059A002-2001
-
TSC 98-0590021-01LF AccessoryMain Board, Real-Time Clock, Compatible with TC210Item on backorder — chat for lead time$339.23 -
TSC 98-0590021-03LF AccessoryMain Board, Real-Time Clock, Compatible with TC310Item on backorder — chat for lead time$339.23
Frequently Asked Questions
What are the key features of the TSC TC310 barcode label printer?
The TSC TC310 is a desktop thermal barcode printer featuring a small footprint, 300 dpi print resolution, and 4-inch-wide label capacity. It delivers fast, reliable performance at up to 6 ips (inches per second) for labels, tags, and receipts, offering an excellent price-performance combination for warehouse and logistics operations.
What connectivity options does the TSC 99-059A002-2001 printer support?
This TSC TC310 model supports multiple connectivity options including Ethernet, RS-232 Serial, USB, and USB-A Host connections. This versatility allows seamless integration with various warehouse management systems and legacy equipment in your facility.
How does the TSC TC310 compare to the TTP-245C Series?
The TSC TC310 is based on the best features of the bestselling TTP-245C Series with colorful improvements and maintains the same small footprint and high performance standards. Both models deliver the durable, reliable performance that customers expect from TSC desktop thermal printers.
What print width and resolution does this TSC barcode printer offer?
The TSC TC310 provides a 4.16-inch print width with 300 dpi resolution, making it suitable for producing detailed barcodes, labels, tags, and receipts in warehouse and logistics environments. The combination of resolution and width supports standard label formats used across supply chain operations.
Is the TSC TC310 suitable for high-volume label printing?
Yes, the TSC TC310 is designed for reliable, fast performance with print speeds up to 6 ips, making it well-suited for warehouse and logistics operations that require consistent label production. Its durable construction and thermal transfer technology support continuous operational demands.
What display features does the TSC 99-059A002-2001 include?
The TSC TC310 features an LCD display for easy operation and monitoring. The printer does not include a real-time clock, but the LCD display provides clear feedback for printer status and job management during label production.
