Tripp-Lite B042-016 Holder

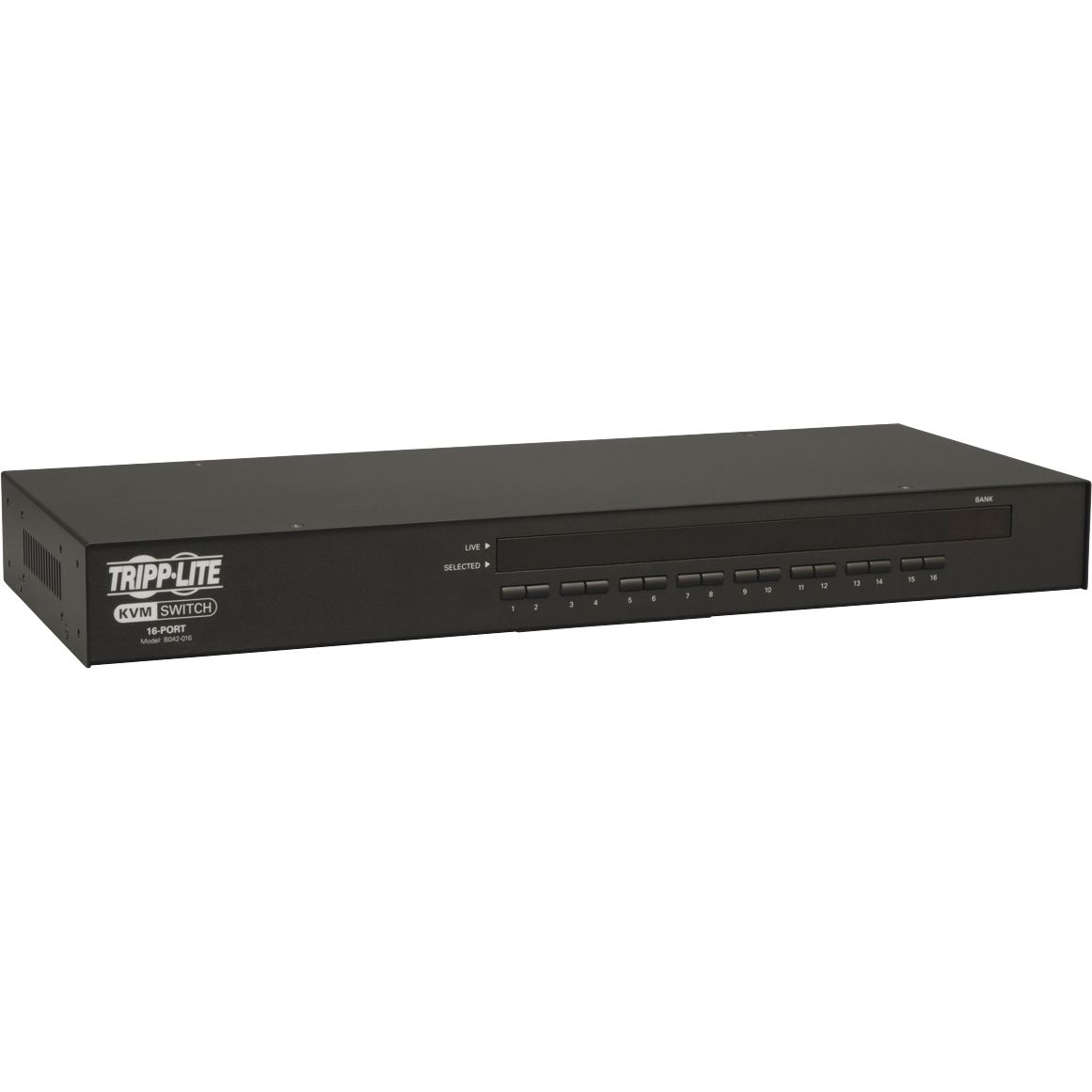

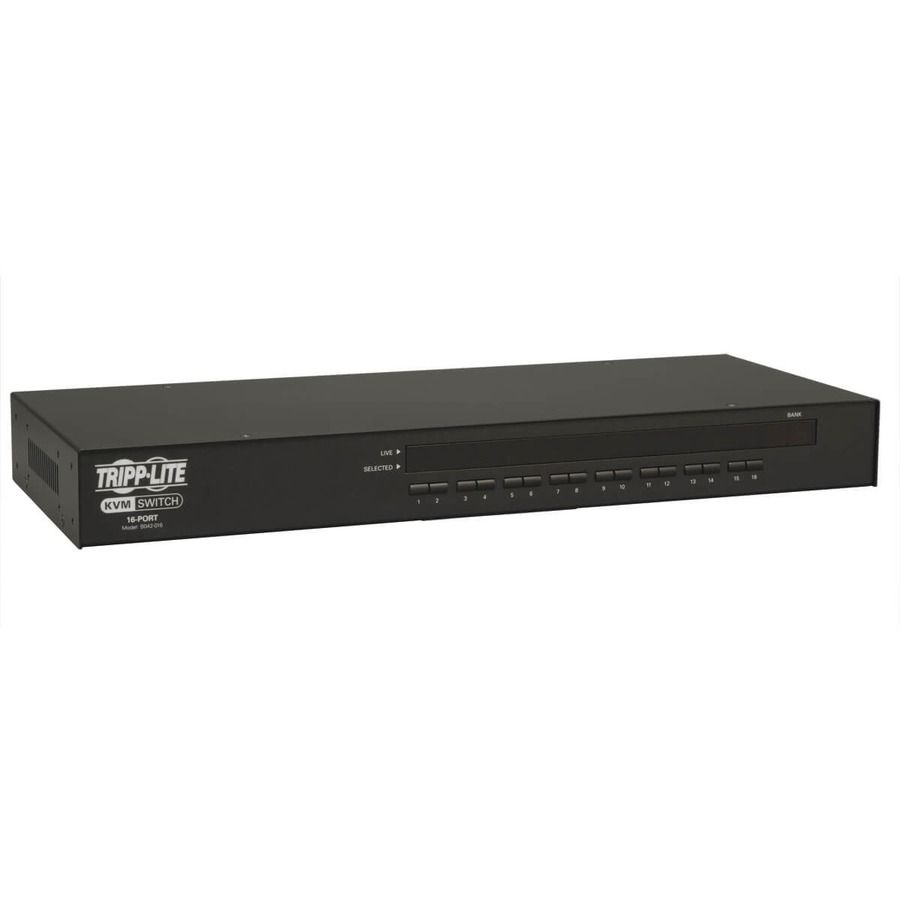

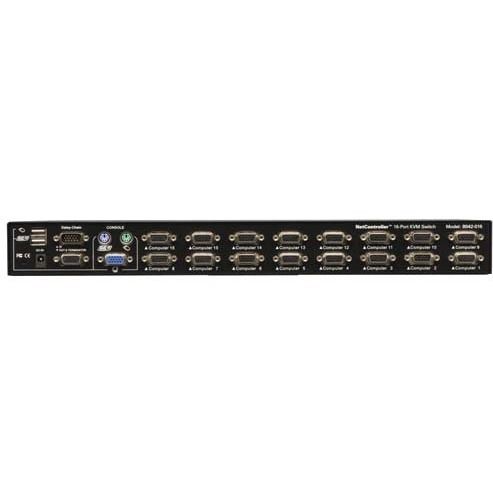

Tripp-Lite - Tripp Lite 16-Port Rackmount USB / PS2 KVM Switch w/ On-Screen Display 1U - 16 x 1 - 16 x HD-15 - 1U - Rack-mountable
  • NetController 16-Port, 1U rackmount KVM switch
  • Control 16 computers via a single VGA monitor and USB or PS/2 keyboard/mouse
  • Control up to 256 computers by daisychaining up to 15 additional B040/42-Series KVM switches (Compatible with B040/42-Series KVM's only. Cannot be daisychained to other KVM series)
  • P780-Series USB/PS2 combo KVM cables kits allow you to connect either USB or PS/2 computers, without the need to purchase separate cables or adapters
  • Compatible with all major operating systems
Read More

Need a different version? See all Tripp-Lite Parts Accessories

$1,020.00
In Stock
Add to Quote
Add to My Shopping List Add to Compare
Tripp-Lite B042-016 Holder
Tripp-Lite B042-016 Holder Tripp-Lite B042-016 Holder Tripp-Lite B042-016 Holder
Tripp-Lite B042-016 Holder
Tripp-Lite B042-016 Holder
Tripp-Lite B042-016 Holder
Tripp-Lite Parts Accessory Model Overview
Products and parts from Tripp-Lite.
Tripp-Lite B042-016 Holder Overview

Tripp Lite's NetController 16-Port, 1U rackmount KVM Switch is an affordable, highly-flexible enterprise class KVM Switch, which allows the user to connect either USB or PS/2 keyboards and mice. In addition, P780-Series USB/PS2 combo KVM cable kits allow you to connect either USB or PS/2 computers, without the need to purchase separate cables or adapters. Control up to 16 directly connected computers, or expand the number of connected computers to up to 256 by daisychaining up to 15 additional B042-Series KVM switches. Switch between connected computers via the On-Screen Display (OSD), pushbuttons, or keyboard hotkey commands. Other features include: password protection, auto-scanning, auto-logout, firmware upgrade and video support up to 2048 x 1536 (QXGA). Mounts easily in a standard 19" rack/cabinet and includes all necessary mounting hardware. Compatible with all major operating systems. Constructed of heavy-duty steel housing. 3 year limited warranty.

Technical Information
Number of Computers Supported:
16
Daisy Chain Supported:
Yes
Video
Graphic Mode:
  • VGA
  • SVGA
  • QXGA
Maximum Video Resolution:
2048 x 1536
Interfaces/Ports
PS/2 Port:
Yes
Number of PS/2 Ports:
1
Power Description
Input Voltage:
9 V DC
Physical Characteristics
Form Factor:
Rack-mountable
Rack Height:
1U
Height:
1.8"
Width:
16.1"
Depth:
6.5"
Miscellaneous
Package Contents:
  • KVM Switch
  • External Power Supply
  • Rackmount Hardware
  • 8 In Daisy Chain Cable
  • Daisy Chain Terminator
  • 4 ft HD15 to DB9 Firmware Upgrade Cable
  • CD with Owner's Manual and Quick Start Guide
  • Quick Start Guide
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0012951723532, 0037332141408, 0818242533954, 0853585446752
UPC: 003733214140, 012951723532, 037332141408, 728072401906, 818242533954, 853585446752
EAN: 0012951723532, 0037332141408, 0818242533954, 0853585446752
UNSPSC: 43211601
Questions? Get help from
an ID Expert!

How many IDs will you
print per year?

The Tripp-Lite B042-016 Holder is also known as B042016
