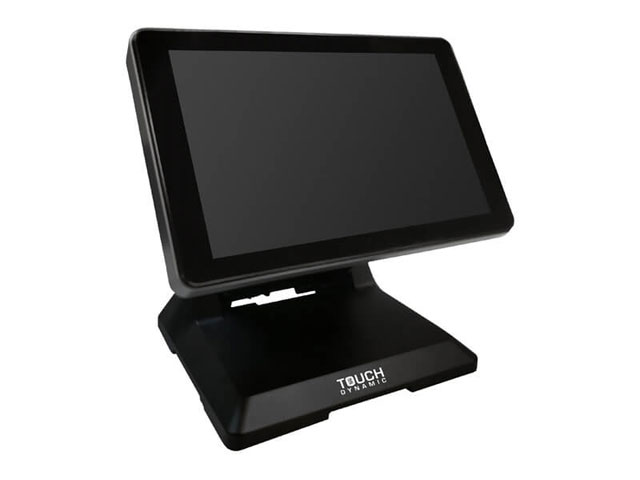

Touch Dynamic QK10-JA4KW1W All-in-One PC
Part Number:
QK10-JA4KW1W
Model:
QK10
Full specifications (PDF)
Touch Dynamic QK10 Touchscreen Model Overview
The QK Series Panel PC delivers exceptional computing performance with its ultra-slim design, making it a perfect choice for kiosks, digital signage, and healthcare environments. Utilizing the latest Intel® Celeron® Quad-Core technology, this device combines style with functionality, featuring a rugged, fanless structure that ensures reliability in diverse conditions. Available in sleek black or white bezels, the QK Series comes in multiple display sizes, allowing customization to fit your specific needs.
Key Features:
Specifications:
Key Features:
- Fanless design for silent operation
- Ultra-slim profile less than 2 inches deep
- Ruggedized 3-piece housing with NEMA 4 & IP65 certification
- High brightness LED display for visibility in various environments
- True flat capacitive touch screen for intuitive interaction
- Customizable options including MSR, Rear LCD, Wireless, and Integrated Webcam
Specifications:
- Motherboard: Intel® Celeron® Quad-Core SoC Processor J1900 2.0GHz
- Cache: 2MB
- PASSMARK CPU MARK SCORE: 1930 Points
- System Memory: 1x DDR3L SoDimm up to 8GB, 1333MHz
- Graphics: Intel® HD Graphics (Max Dynamic frequency up to 792MHz), DX11
- Displays Supported: 2 (built-in and external VGA)
- Available Sizes: 10.1", 15.6", 18.5", 21.5"
- Touch: True Flat Capacitive Touch (P-CAP)
- Storage: 2.5" SATA SSD
- Expansion: 1 MiniPCI-e slot
- External I/O Ports: 4 x USB 2.0, 1 x USB 3.0, 3 x RJ45 Serial ports (jumper power option), 1 Cash Drawer Port
- Operating Temperature: 0°C to 35°C (32°F ~ +95°F)
- Storage Temperature: -20°C to 60°C (-4°F ~ 140°F)
- Operating Humidity: 20% ~ 85% RH non-condensing
- Storage Humidity: 20% ~ 85% RH non-condensing
- OS Support: Windows 7, Windows 8.1, Windows 10 IOT, and more
