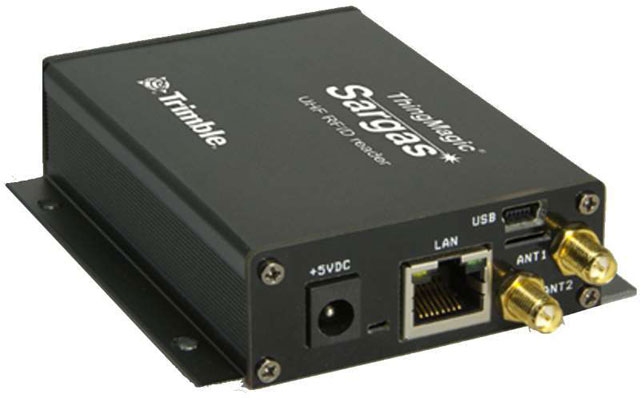

ThingMagic Sargas RFID Reader

ThingMagic Sargas  -  The ThingMagic Sargas reader is a high-performance, 2-antenna-port, networked, UHF reader in a low profile enclosure. Built around the ThingMagic Micro reader module, the device reads more than 750 tags per second at distances over 9 meters (30 feet) when configured with appropriate antennas. With an onboard processor, memory and removable flash storage, the reader has features designed for enterprise applications, and easy system integration.
Full specifications (PDF)

Price Match Guarantee

Found a better price? We'll match it within 60 days of your purchase.

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Starting at:
$1,300.00
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

ThingMagic Sargas RFID Reader
ThingMagic Sargas RFID Reader
Accessories For ThingMagic Sargas RFID Reader

ThingMagic Sargas RFID Reader Options

  • ThingMagic S6-NA RFID Reader

    ThingMagic S6-NA RFID Reader
    Sargas Reader - North America. Requires an AC power adapter (PWRADP) unless the reader is powered over Ethernet. Non-returnable/Non-cancellable.
    $1,300.00
    Add to Quote
Full specifications (PDF)

ThingMagic Sargas RFID Reader Model Overview

The ThingMagic Sargas 2-Port UHF RFID Reader is designed for high-performance applications, delivering exceptional tag reading capabilities at speeds up to 750 tags per second over distances exceeding 9 meters (30 feet). Housed in a low-profile enclosure, this reader integrates effortlessly into various systems, thanks to its onboard processor and comprehensive connectivity options, including an HDMI port for direct display integration. The advanced architecture and extensive software support make it an ideal choice for enterprises seeking reliable and efficient RFID solutions.


Key features:

  • Reads up to 750 tags per second
  • World-wide frequency coverage
  • Unique on-board HDMI interface
  • Mercury API support for easy integration
  • Independent RF control for read and write operations

Specifications:

  • Dimensions: 87 mm L x 80 mm W x 23.8 mm H
  • Weight: 0.27 Kg (0.6 lbs)
  • Operating Temperature: -20 to +60°C (-4 to +140°F)
  • Storage Temperature: -40 to +85°C (-40 to +185°F)
  • Antenna Ports: 2 ports with RP-SMA connectors
  • RF Power Output: 0 dBm to 30 dBm (1W), ±1.0 dBm
  • Tag Read Distance: > 9 m (30 ft) with appropriate antenna
  • Protocols: EPC Gen 2V2 ISO 18000-63, ISO 18000-6B
  • USB Ports: 2 (one host, one client)
  • Power Supply: 4.5 to 5.5 V dc, 15 W max

Recommended Accessories

Category

  • Cables, Connectors, and Adapters (1)
  • RFID Reader Accessories (3)
  • Service Contract (4)
  • Spare Parts (2)

Recommended Accessories for Model: ThingMagic Sargas RFID Reader

Top Cables, Connectors, and Adapters Purchased With ThingMagic Sargas

Top RFID Reader Accessories Purchased With ThingMagic Sargas

Top Service Contract Purchased With ThingMagic Sargas

See All Service Contract for ThingMagic Sargas RFID Reader >

Top Spare Parts Purchased With ThingMagic Sargas

  • ThingMagic S6-DEVKIT Spare Parts
    ThingMagic S6-DEVKIT Spare Parts
    Sargas Development Kit. Includes a 7.5" sample antenna, RF cables, Ethernet cable, multi-region power adapter, packet of sample tags and instructions for obtaining the SDK/API. Reader is not included. Non-returnable/Non-cancellable.
    $386.15
    Add to Quote
  • ThingMagic PWRADP-S6-MR Spare Parts
    ThingMagic PWRADP-S6-MR Spare Parts
    Sargas Multi-Region Power Adapter (indoor use). Non-returnable/Non-cancellable.
    $49.23
    Add to Quote
