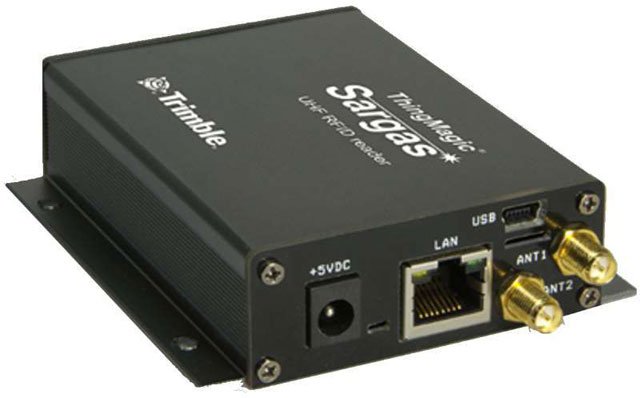

ThingMagic S6-NA RFID Reader

The ThingMagic Sargas 2-Port UHF RFID Reader is designed for high-performance applications, delivering exceptional tag reading capabilities at speeds up to 750 tags per second over distances exceeding 9 meters (30 feet). Housed in a low-profile enclosure, this reader integrates effortlessly into various systems, thanks to its onboard processor and comprehensive connectivity options, including an HDMI port for direct display integration. The advanced architecture and extensive software support make it an ideal choice for enterprises seeking reliable and efficient RFID solutions.

Key features:

• Reads up to 750 tags per second
• World-wide frequency coverage
• Unique on-board HDMI interface
• Mercury API support for easy integration
• Independent RF control for read and write operations

Specifications:

• Dimensions: 87 mm L x 80 mm W x 23.8 mm H
• Weight: 0.27 Kg (0.6 lbs)
• Operating Temperature: -20 to +60°C (-4 to +140°F)
• Storage Temperature: -40 to +85°C (-40 to +185°F)
• Antenna Ports: 2 ports with RP-SMA connectors
• RF Power Output: 0 dBm to 30 dBm (1W), ±1.0 dBm
• Tag Read Distance: > 9 m (30 ft) with appropriate antenna
• Protocols: EPC Gen 2V2 ISO 18000-63, ISO 18000-6B
• USB Ports: 2 (one host, one client)
• Power Supply: 4.5 to 5.5 V dc, 15 W max
