Symbol WSAP-5110-100-WWR Access Point

Motorola AP-0650-66030-WW Access Point A newer version of this item is available.
It is replaced by the Motorola AP-0650-66030-WW Access Point.

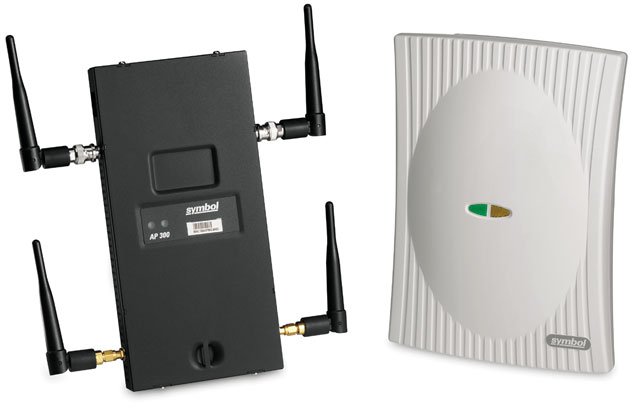

Symbol AP 300 - Access Port, 802.11a/b/g with internal antennas
  • When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
  • This wireless access point uses IEEE 802.11a/b/g technology with steadfast speed of up to 54 Mbit/s for optimal wireless signals
  • Link your Wi-Fi traffic to your wired network with Fast Ethernet port
Read More
Discontinued See Replacement
Add to Quote
Symbol AP 300 Access Point Model Overview
The Symbol AP 300 provides simultaneous wireless service to 802.11a, 802.11b and 802.11g mobile devices with high-bandwidth wireless connectivity at speeds of up to 54 Mbps in both the 2.4 GHz and 5.2 GHz ISM bands. The AP 300 requires no configuration or manual firmware maintenance. The Symbol Wireless Switch discovers Access Ports on the network and automatically downloads all configuration parameters and firmware. Installation, maintenance and troubleshooting costs are greatly reduced.
Symbol WSAP-5110-100-WWR Access Point Overview

Symbol's AP300 delivers rich 802.11a/b/g connectivity, working in conjunction Symbol's wireless switches as the point of connection between your mobile devices and your wireless LAN. This thin next-generation access point is a low-cost device that is centrally and remotely managed through a Symbol wireless switch. Rapid configuration and the ability to quickly and easily upgrade the devices to support new functionality, features and security protocols substantially reduces the cost of deploying, implementing and managing your wireless LAN, while significantly increasing features, functionality and security of your wireless LAN infrastructure.

Technical Information
Wireless LAN Standard:
IEEE 802.11a/b/g
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.73 GHz
Antenna Type:
Dual Diversity Antenna
Wireless Transmission Speed:
54 Mbit/s
Wireless Security:
  • Basic Service Set Identifier (BSSID)
  • Extended Service Set ID (ESSID)
  • 802.1x-EAP
  • TKIP
  • AES
Interfaces/Ports
Ethernet Technology:
Fast Ethernet
Number of Network (RJ-45) Ports:
1
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Ceiling Mountable
Height:
2"
Depth:
9.5"
Weight (Approximate):
1 lb
Miscellaneous
Additional Information:
  • Wireless medium: Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM)
  • 2 LED indicators with multiple modes indicating 802.11a/802.11g Activity, Power, Adoption and Errors
  • Load Balancing
  • Pre-Emptive Roaming
  • Rate Scaling

Antenna Gain:

  • 0.0 dBi: 2.4 GHz
  • 3 dBi: 5.2 GHz

Frequency Range:

  • IEEE 802.11g:
  • 2.412 GHz to 2.462 GHz
  • IEEE 802.11a:
  • 5.150 GHz to 5.250 GHz (UNII -1)
  • 5.250 GHz to 5.350 GHz (UNII -2)
  • 5.725 GHz to 5.825 GHz (UNII -3)
Item Numbers
GTIN: 0609015022528
UPC: 609015022528
EAN: 0609015022528
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol WSAP-5110-100-WWR Access Point is also known as SYM-WSAP5110100WWR or WSAP5110100WWR.
