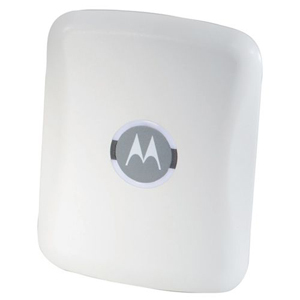

Motorola AP-0650-66030-WW Access Point

The Motorola AP-0650-66030-WW Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

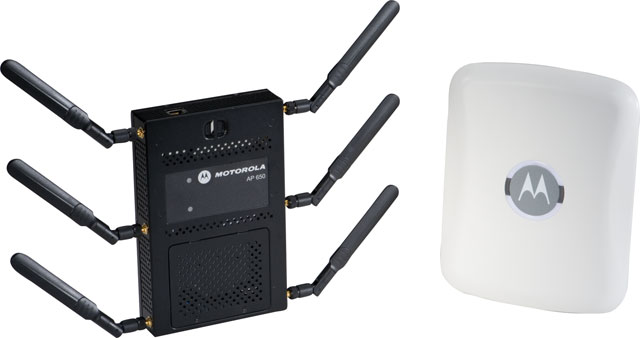

Motorola AP650 - Wireless Access Point/Bridge
  • When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
  • This wireless access point uses IEEE 802.11n technology with steadfast speed of up to 300 Mbit/s for optimal wireless signals
  • Gigabit Ethernet port for ultra-fast wired network speeds
  • With PoE Port, transfer data and power from a single cable to places where a power outlet is not present
Read More
Motorola AP650 Access Point Model Overview
The Motorola AP650 is a thin multi-purpose access point designed to lower the cost of deploying and operating a secure, reliable 802.11n wireless LAN (WLAN) in branch offices or headquarters facilities. The AP650 combines simultaneous WLAN access and sensing, providing 24x7 wireless security and enabling IT administrators to remotely troubleshooting network performance issues at any location. The AP650 is designed to optimize network availability through its central and pre-emptive intelligence which dynamically senses weak or failing signals, securely moves mobile users to alternate APs, and boosts signal power to ensure uninterrupted access. Common problems, often seen with other products on the market such as building attenuation, electronic interference or sub-optimal access point placement are minimized, as SMART RF automatically optimizes power and channel selection allowing users high-quality wireless access and mobility.
Motorola AP-0650-66030-WW Access Point Overview

The AP650 is a thin (dependent) multipurpose wireless access point designed to lower the cost of deploying and operating a secure, reliable 802.11n wireless LAN (WLAN) in branch offices or headquarters facilities. The AP650 offers simultaneous WLAN access and sensing enabling remote over-the-air helpdesk support, or Wireless intrusion prevention.

Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.46 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.85 GHz
Antenna Gain:
  • 2 dBi
  • 4.8 dBi
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
  • IEEE 802.1x
  • IEEE 802.11i
  • WPA2-CCMP (AES)
  • WPA2-TKIP
  • WPA-TKIP
Interfaces/Ports
Ethernet Technology:
Gigabit Ethernet
PoE (RJ-45) Port:
Yes
Management & Protocols
Management:
  • QoS
  • VLAN
Power Description
Input Voltage:
48 V DC
Physical Characteristics
Form Factor:
  • Ceiling Mountable
  • Wall Mountable
Height:
1.7"
Depth:
9.5"
Weight (Approximate):
2 lb
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
GTIN: 0080479167480
UPC: 080479167480
EAN: 0080479167480
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola AP-0650-66030-WW Access Point is also known as SYM-AP065066030WW
