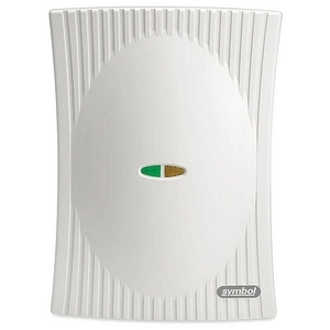

Symbol WSAP-5110-100-WW Access Point

Symbol WSAP-5110-100-WWR Access Point A newer version of this item is available.
It is replaced by the Symbol WSAP-5110-100-WWR Access Point.
Symbol AP 300 - Access Port (802.11a+bg Access Port with internal antennas).
  • When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
  • Ensure speedy data transfer of up to 54 Mbit/s with the IEEE 802.11a/b/g wireless technology
  • Link your Wi-Fi traffic to your wired network with Fast Ethernet port
Read More

Need a different version? See all Symbol AP 300 Access Points

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Symbol WSAP-5110-100-WW Access Point
Symbol WSAP-5110-100-WW Access Point Symbol WSAP-5110-100-WW Access Point
Symbol WSAP-5110-100-WW Access Point
Symbol WSAP-5110-100-WW Access Point
Full specifications (PDF)

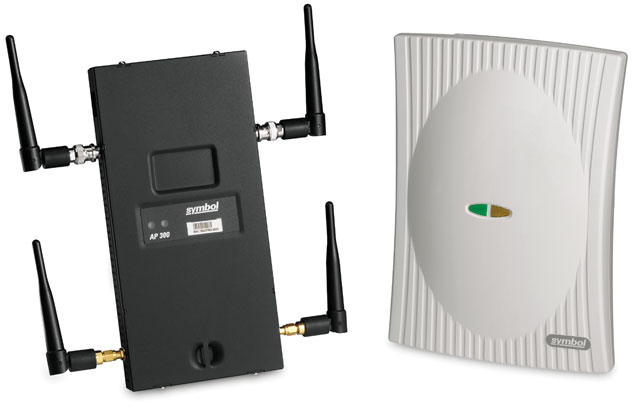

Symbol AP 300 Access Point Model Overview
The Symbol AP 300 provides simultaneous wireless service to 802.11a, 802.11b and 802.11g mobile devices with high-bandwidth wireless connectivity at speeds of up to 54 Mbps in both the 2.4 GHz and 5.2 GHz ISM bands. The AP 300 requires no configuration or manual firmware maintenance. The Symbol Wireless Switch discovers Access Ports on the network and automatically downloads all configuration parameters and firmware. Installation, maintenance and troubleshooting costs are greatly reduced.
Symbol WSAP-5110-100-WW Access Point Overview
  • Gain: 2.4 GHz: 0.0 dBi , 5.2 GHz: 3.0 dBi
  • Operating Channels: 802.11b/g: ETSI: 13
  • Uplink: Auto-sensing 10/100Base-T Ethernet
  • Frequency: 2.4 and 5.2 GHz Dual-Antenna Elements with diversity
  • Ceiling-Mount (to suspended ceiling T-bars below tile); Wall-Mount
Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11a/b/g
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.46 GHz
UNII Minimum Frequency:
5.83 GHz
UNII Maximum Frequency:
5.85 GHz
Total Number of Antennas:
2
Antenna Gain:
3 dBi
Wireless Transmission Speed:
54 Mbit/s
Wireless Security:
  • AES
  • TKIP
  • Authentication and Key Management (802.1x-EAP)
Interfaces/Ports
Ethernet Technology:
Fast Ethernet
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Ceiling Mountable
Height:
2"
Depth:
9.5"
Weight (Approximate):
1 lb
Miscellaneous
Additional Information:
  • Integrated 2.4 GHz and 5.2 GHz Dual-Antenna Elements with diversity

FCC (US and Canada):

  • 5.150 GHz to 5.250 GHz (UNII -1)
  • 5.250 GHz to 5.350 GHz (UNII -2)
  • 5.725 GHz to 5.825 GHz (UNII -3)

Nominal Transmitter Power:

  • IEE 802.11b/g
  • 17.5 dBm +/- 1 dBm @ 1, 2, 5.5, 11 Mbps
  • 17.0 dBm +/- 1 dBm @ 6 and 9 Mbps
  • 16.5 dBm +/- 1 dBm @ 12 and 18 Mbps
  • 14.0 dBm +/- 1 dBm @ 24 and 36 Mbps
  • 12.5 dBm +/- 1 dBm @ 48 and 54 Mbps
  • IEEE 802.11a
  • 17.5 dBm +/- 1 dBm @ 6 and 9 Mbps
  • 16.0 dBm +/- 1 dBm @ 12 and 19 Mbps
  • 14.0 dBm +/- 1 dBm @ 24 and 36 Mbps
  • 12.0 dBm +/- 1 dBm @ 48 and 54 Mbps

Electrostatic Discharge:

  • +/- 15 kV (Air)
  • +/- 8 kV (Contact)
Certifications & Standards:
  • TUV
  • FCC
  • cUL
  • UL 60950
  • EU EN 60950
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.3af
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.11i
  • IEEE 802.11h
  • IEEE 802.1x
Item Numbers
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol WSAP-5110-100-WW Access Point is also known as SYM-WSAP5110100WW or WSAP5110100WW.
