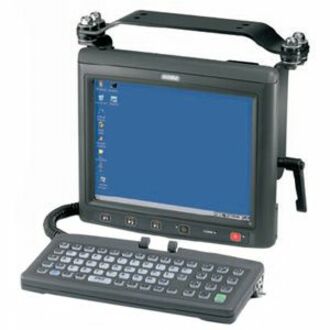

Motorola VC5090-MA0TMQGH66R Fixed/Vehicle Mount Data Terminal


0.0

(No reviews)

Be the first to

Write a Review
Symbol VC5090 - Half screen, 10.5" 1/2 SVGA (800x320) color touch panel, integrated 64 key keyboard, Windows CE 5.0 Pro, 128MB RAM, 192MB Flash, Ships with mounting braket and bots, 9' power wiring harness with fuses/holders, screen protector, desiccant packs, Wavelink emulation software. FOR VEHICLES WITH 12VDC BATTERY.
High-Performance Vehicle/Fixed Mount Computer

The VC5090 Vehicle/Fixed-Mount Mobile Computer allows real-time data access and collection while combining rugged construction and high performance wireless networking. Rich application support, centralized management and a common Symbol architecture reduce the cost and complexity of mobility, enabling the cost-effective streamlining of warehouse operations for improved productivity and profitability.

General Information

  • Product Type: Vehicle Mount Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: VC5090
  • Product Name: VC5090 Vehicle Mount Computer

Technical Information

  • Connectivity Technology: Wireless

Physical Characteristics

  • Width: 12.2"
  • Depth: 5"
  • Length: 11.3"
  • Weight (Approximate): 16.31 lb

Interfaces/Ports

  • Interfaces/Ports:
    • RS-232 Serial
    • USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • VC5090 Vehicle Mount Computer
    • 9' Wiring Harness
    • Fuses/Holders
    • Mounting Bracket
    • Misc Mounting Bolts
    • Wavelink Emulation Software
    • Screen Protector
    • Desiccant Packs
    • VC5090 Vehicle Mount Computer
    • 9' Wiring Harness
    • Fuses/Holders
    • Mounting Bracket
    • Misc Mounting Bolts
    • Wavelink Emulation Software
    • Screen Protector
    • Desiccant Packs
  • Certifications & Standards:
    • EMC:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • EN 55022
    • EN 301 489-1
    • EN 301 489-17
    • RF:
    • FCC Part 15.247
    • FCC Part 15.205
    • FCC Part 15.209
    • FCC Part 15.203
    • FCC Part 15.407
    • FCC Part 15.207
    • EN 300 328
    • EN 301 893
    • RSS-210
    • ARIB STD-66
    • ARIB STD-33
    • T70
    • T71
    • Safety:
    • UL 60950-1
    • CSA C22.2 No. 60950-1
    • EN 60950-1
    • IEC 60950-1
  • Additional Information:
    • Expansion Slot: SD Memory Card
    • Power Supply: 12 VDC
    • Communication Options:
    • Voice(VoIP, Voice Picking)
    • Audio

Network & Communication

  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA Enterprise
    • Wi-Fi Certified
    • TKIP
    • WEP 40 bit
    • WEP 128 bit
    • 802.1
    • WPA Enterprise
    • Wi-Fi Certified
    • TKIP
    • WEP 40 bit
    • WEP 128 bit
    • 802.1
  • Wireless Technology:
    • Wi-Fi
    • Bluetooth

Display & Graphics

  • Touchscreen: Yes
  • Display Color: Color
  • Screen Size: 10.5"
  • Graphics Modes: SVGA

Environmental Conditions

  • Electrostatic Discharge (ESD):
    • 20 kV DC Air Discharge
    • 8 kV DC Contact Discharge

Keyboard/Keypad

  • Keyboard Form Factor: Integrated
  • Number of Keys: 64

Memory

  • Flash Memory: 192 MB
  • Standard Memory: 128 MB

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows

Full specifications (PDF)



Customer Review Summary

Recommended Accessories for Model: Symbol VC5090 Terminal
Symbol (25-71919-04R)
Cable Assembly (VC5090 DC Power Cable - Cold Temp)
In Stock: Ships Same Day
$182.30
+ Add to Quote
Symbol Cable (25-71918-01R)
Assembly, 9 ft, Extended, Coiled. Connects LS34XX to the VC5090. Non-standard USB, call for more information.
In Stock: Ships Same Day
$84.60
+ Add to Quote
Symbol (VC5090KYBD-02R)
Keyboard (64 key, Backlit, IP66 Sealed, Heated, QWERTY)
In Stock: Ships Same Day
$362.70
+ Add to Quote
Symbol (25-71919-03R)
Cable Assembly (DC Power, SJTOW Rated) for the VC5000
In Stock: Ships Same Day
$73.00
+ Add to Quote
Symbol (90500116-R)
Spare mounting bracket, With hardware, Handles not included
In Stock: Ships Same Day
$209.80
+ Add to Quote

The Symbol VC5090-MA0TMQGH66R is also known as Symbol Technologies SYM-VC5090MA0TMQGH66 or VC5090MA0TMQGH66R .
