Full specifications (PDF)
Connectivity Technology:
Wireless
Motorola VC5090-MA0TMQGH7WR Data Terminal
Part Number:
VC5090-MA0TMQGH7WR
Model:
VC5090
Motorola VC5090 Data Terminal Model Overview

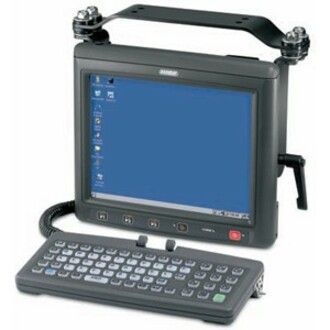

The VC5090 Vehicle/Fixed-Mount Mobile Computer allows real-time data access and collection while combining rugged construction and high performance wireless networking. Rich application support, centralized management and a common Motorola architecture reduce the cost and complexity of mobility, enabling the cost-effective streamlining of warehouse operations for improved productivity and profitability.
Motorola VC5090-MA0TMQGH7WR Data Terminal Overview
The VC5090 combines rugged construction and high performance wireless networking to enable real-time data access and collection in the harshest environments from the loading dock and freezer to the warehouse floor.
Technical Information
Processor & Chipset
Processor Manufacturer:
Intel
Processor Type:
XScale
Processor Speed:
624 MHz
Memory
Standard Memory:
128 MB
Flash Memory:
192 MB
Display & Graphics
Screen Size:
10.5"
Graphics Modes:
SVGA
Touchscreen:
Yes
Display Color:
Color
Network & Communication
Antenna Form Factor:
Internal
Bluetooth:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g
Keyboard/Keypad
Number of Keys:
65
Keyboard Type:
QWERTY
Software
Operating System:
Windows CE 5.0 Professional
Physical Characteristics
Width:
12.2"
Depth:
5"
Length:
11.3"
Weight (Approximate):
16.31 lb
Miscellaneous
Certifications & Standards:
- Environmental Meets IP66
EMC:
- FCC Part 15B
- ICES-003 Class B
- EN 55022
- EN 301 489-1 & 17
RF:
- FCC Part 15.247
- 15.205
- 15.209
- 15.203
- 15.407
- 15.207
- EN 300 328
- EN 301 893
- RSS-210
- ARIB STD-66 & 33
- T70 & T71
Safety:
- UL 60950-1
- CSA C22.2 No. 60950-1
- EN 60950-1
- IEC 60950-1
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
GTIN:
0682017474588, 0799471566602
UPC:
682017474588, 799471566602
EAN:
0682017474588, 0799471566602
UNSPSC:
43211505
