Full specifications (PDF)
Connectivity Technology:
Wireless
Symbol VC5090-MA0QL0GH6WW Data Terminal
Part Number:
VC5090-MA0QL0GH6WW
Model:
VC5090
Symbol VC5090 Data Terminal Model Overview

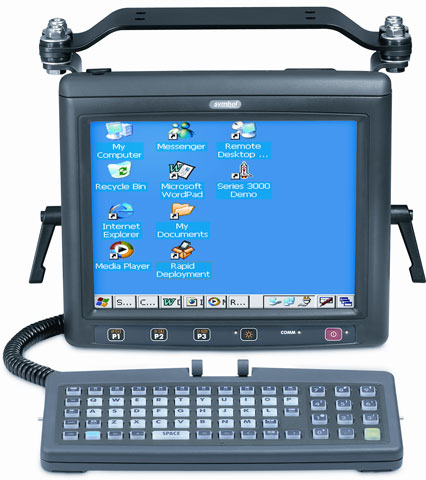

The VC5090 Vehicle/Fixed-Mount Mobile Computer allows real-time data access and collection while combining rugged construction and high performance wireless networking. Rich application support, centralized management and a common Symbol architecture reduce the cost and complexity of mobility, enabling the cost-effective streamlining of warehouse operations for improved productivity and profitability.
Symbol VC5090-MA0QL0GH6WW Data Terminal Overview
The VC5090 Vehicle/Fixed-Mount Mobile Computer from Symbol Technologies combines rugged construction and high performance wireless networking to enable real-time data access and collection in the harshest environments from the loading dock and freezer to the warehouse floor. The VC5090 is the right solution when a forklift mounted computer or an industrial grade large display.
Technical Information
Processor & Chipset
Processor Manufacturer:
Intel
Processor Speed:
624 MHz
Memory
Standard Memory:
64 MB
Flash Memory:
192 MB
Display & Graphics
Screen Size:
12.1"
Graphics Modes:
SVGA
Touchscreen:
Yes
Display Color:
Color
Network & Communication
Antenna Form Factor:
Internal
Bluetooth:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g
Interfaces/Ports
Serial:
Yes
USB:
Yes
Software
Operating System:
Windows
Physical Characteristics
Width:
12.2"
Depth:
4.5"
Length:
10.6"
Weight (Approximate):
14.50 lb
Miscellaneous
Package Contents:
- VC5090 Vehicle Mount Computer
- 9' Wiring Harness
- Fuses/Holders
- Mounting Bracket
- Misc Mounting Bolts
- Wavelink
- Emulation Software
- Screen Protector
- Desiccant Packs
Additional Information:
Expansion Slot: SD Memory Card
Certifications & Standards:
EMC:
- FCC Part 15 Class B
- ICES-003 Class B
- EN 55022
- EN 301 489-1
- EN 301 489-17
RF:
- FCC Part 15.247
- FCC Part 15.205
- FCC Part 15.209
- FCC Part 15.203
- FCC Part 15.407
- FCC Part 15.207
- EN 300 328
- EN 301 893
- RSS-210
- ARIB STD-66
- ARIB STD-33
- T70
- T71
Safety:
- UL 60950-1
- CSA C22.2 No. 60950-1
- EN 60950-1
- IEC 60950-1
Warranty
Limited Warranty:
1 Year
