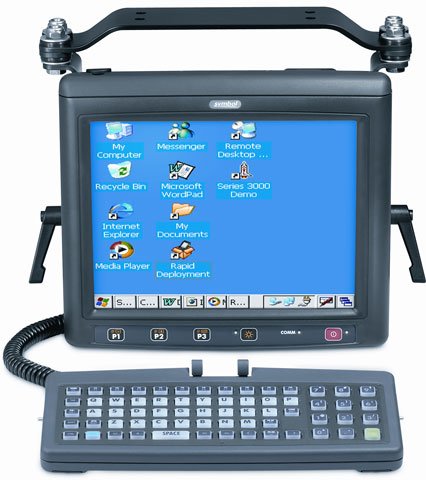

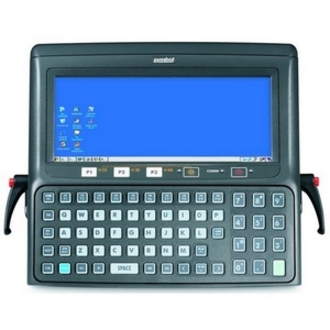

Motorola VC5090-MA0QM0GH6WR Fixed/Vehicle Mount Data Terminal


0.0

(No reviews)

Be the first to

Write a Review
Motorola VC5090 - Windows CE 5.0 Professional, 128MB Sdram/192MB Flash, Wireless, QWERTY, 65 key With Tactile Feedback and Audible Key Beep, Heated and Sealed, Function Keys F1-F24, Full Screen: Color 12.1 In. SVGA 800x600, Intel Xscale Pxa270 @ 624 MHz.
High-Performance Vehicle/Fixed Mount Computer

The VC5090 Vehicle/Fixed-Mount Mobile Computer allows real-time data access and collection while combining rugged construction and high performance wireless networking. Rich application support, centralized management and a common Motorola architecture reduce the cost and complexity of mobility, enabling the cost-effective streamlining of warehouse operations for improved productivity and profitability.

Technical Information

  • Operating System: Windows CE Professional 5.0
  • Processor: Intel PXA270 XScale 624MHz
  • Vibration: MIL-STD-810F
  • Internal Heater: Yes
  • Display: 12.1" Color SVGA - Resistive Touch Screen

General Information

  • Manufacturer:
  • Product Name: VC5090 Vehicle Mount Computer

Physical Characteristics

  • Dimensions: 12.2" (310mm) x 10.6" (269mm) x 4.5" (114mm)
  • Weight: 14.5 lb (7 kg)

Interfaces/Ports

  • I/O Ports:
    • RS-232
    • USB

Network

  • Data Collection Type: Wireless
  • Network Connectivity:
    • WLAN 802.11a/b/g
    • WPAN Bluetooth
  • Maximum RF Data Rate Supported: 54 Mbps
  • Antenna Connectors: Internal
  • Wireless Security:
    • WPA Enterprise
    • Wi-Fi Certified
    • TKIP
    • WEP 40 bit
    • WEP 128 bit
    • CCX
  • Frequency Band/Bandwidth: 2.4GHz to 5GHz

Environmental Conditions

  • Environmental Sealing: IP66
  • Temperature:
    • -30°C (-22°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Operating Non-condensing
  • Electrostatic Discharge (ESD):
    • 20kV Air Discharge
    • 8kV Contact Discharge

Other

  • Additional Information:
    • Expansion Slot: SD Memory Card Communication Options: Voice(VoIP, voice picking) Audio
    • Expansion Slot: SD Memory CardCommunication Options:Voice(VoIP, voice picking)Audio
  • Package Contents:
    • VC5090 Vehicle Mount Computer 9' Wiring Harness Fuses/Holders Mounting Bracket Misc Mounting Bolts Wavelink Emulation Software Screen Protector Desiccant Packs
    • VC5090 Vehicle Mount Computer9' Wiring HarnessFuses/HoldersMounting BracketMisc Mounting BoltsWavelink Emulation SoftwareScreen ProtectorDesiccant Packs

Agency Approvals

  • Agency Approvals:
    • RoHS Compliance EMC: FCC Part 15 Class B ICES-003 Class B EN 55022 EN 301 489-1 EN 301 489-17 RF: FCC Part 15.247 FCC Part 15.205 FCC Part 15.209 FCC Part 15.203 FCC Part 15.407 FCC Part 15.207 EN 300 328 EN 301 893 RSS-210 ARIB STD-66 ARIB STD-33 T70 T71 Safety: UL 60950-1 CSA C22.2 No. 60950-1 EN 60950-1 IEC 60950-1
    • RoHS ComplianceEMC:FCC Part 15 Class BICES-003 Class BEN 55022EN 301 489-1EN 301 489-17RF:FCC Part 15.247FCC Part 15.205FCC Part 15.209FCC Part 15.203FCC Part 15.407FCC Part 15.207EN 300 328EN 301 893RSS-210ARIB STD-66ARIB STD-33T70T71Safety:UL 60950-1CSA C22.2 No. 60950-1EN 60950-1IEC 60950-1

Memory

  • RAM Memory: 128MB
  • Flash Memory: 192MB

Scanner Options

  • Scanner Option: External

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model VC5090
Operating System Windows CE 5.0 Pro
Form Factor Vehicle/Forklift
Network Connectivity 802.11b, 802.11 b/g, 802.11g
Keyboard Touch-based
Display Size 800x600
RAM Memory 128MB
