Symbol MS-904HS-I000 Fixed Barcode Scanner

Zebra MS-954-I000R Fixed Barcode Scanner A newer version of this item is available.
It is replaced by the Zebra MS-954-I000R Fixed Barcode Scanner.
Symbol Mini Scan Series - MiniScan Series Scanner (Housed Scan Engine, PICO, RS232 and Single Line)
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • Powerful laser scan source provides 200 scan/s decode rate
  • Scan barcodes with a staggering speed of 200 scan/s
Read More
Discontinued See Replacement
Add to Quote
Symbol MiniScan MS954 Fixed Barcode Scanner Model Overview
Zebra's MiniScan MS954 Series Fixed Mount Scanner is compact, durable and high performing. The MS954 is capable of scanning all types of 1D barcodes, including poorly printed and low contrast symbols. The MS954 offers a configurable scan angle of 47 degrees and 35 degrees for OEM devices requiring a flexible, expanded working range. As one of the smallest, lightest and brightest fixed-mount scanners available today, the MS954 is ideal for accurate automated data collection in OEM device designs with space constraints. It can also be used as a fixed-mount scanner. With its durable housing and built-in RS-232 interface, the mS954 enables your project teams to quickly and confidently integrate high performance 1D barcode data capture into many applications.

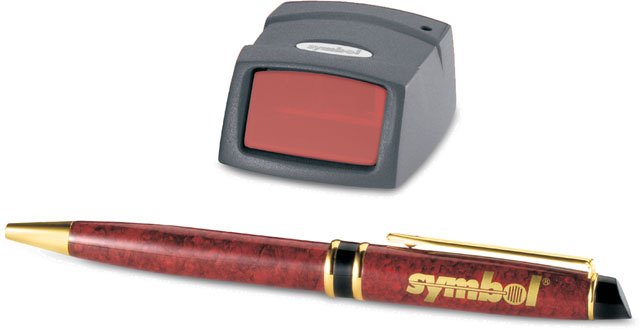

Symbol MS-904HS-I000 Fixed Barcode Scanner Overview

The MS 904HS from symbol Technology is a compact, durable, fixed-mount laser bar scanner that combines 200 scans per second and high performance scanning into a compact size that is the perfect for space-constrained devices.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • UPC/EAN
  • Code 128
  • UCC.EAN128
  • Code 39
  • Code 93
  • I 2 of 5
  • Discrete 2 of 5
  • Codabar
  • MSI

2D:

  • RSS
  • 1D Composite Codes
Light Source:
Laser
Scan Rate:
200 scan/s
Scan Pattern:
Linear
Scanning Distance:
23"
Interfaces/Ports
Host Interface:
Serial
Physical Characteristics
Height:
1"
Width:
1.9"
Depth:
2.3"
Weight (Approximate):
1.70 oz
Miscellaneous
Additional Information:

USB Cable separate

Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol MS-904HS-I000 Fixed Barcode Scanner is also known as SYM-MS904HSI000 or MS-904HS-I000.
