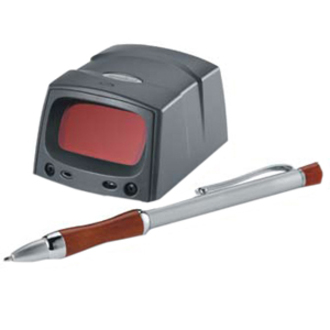

Motorola MS-1207FZY-I000 Fixed Barcode Scanner

Symbol MS1207 - MiniScan (Housed Scan Engine, CL 2, SL, FZY, USB/Synapse)
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Scan barcodes with a staggering speed of 36 scan/s
Read More

Full specifications (PDF)

High performance fixed mount scanner
The MiniScan MS1207 from Symbol is a compact, durable, industrial fixed-mount scanner. The MiniScan MS1207 is an excellent choice for OEM devices requiring accurate, automated data collection, even in the most demanding environments. The MiniScan MS1207 scanner features immunity to ambient light and durable design which combine to deliver premium scanning performance in the most demanding environments. MiniScan MS1207 scanners are easy to program and configure, enabling you to shorten your development time and bring your product to market faster - even if you don't have in-house technical resources for scanner integration. With its rugged durable housing, exit window, integrated beeper and multiple interface options, MiniScan MS1207 scanners enable your project teams to quickly and confidently integrate high-performance 1D barcode data capture into many applications.
Symbol MS-1207FZY-I000 Overview

The Symbol MS1207 is a compact, durable, industrial fixed mount scanner available in fuzzy (FZY) or wide angle (WA) versions for maximum versatility. The Symbol MS1207 FZY versions feature fuzzy logic for premium scanning on 1D bar codes including poorly printed and low contrast. The Symbol MS1207 is an excellent choice for OEM devices requiring accurate, automated data collection, even in the most demanding environments. It can also be used as a standalone fixed mount scanner.

Protect Your Product

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC/EAN
  • Code 128
  • UCC/EAN 128
  • Code 39
  • Code 93
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Codabar
  • MSI
  • RSS
Light Source:
Laser
Scan Rate:
36 scan/s
Depth of Field:
  • 3.25" - 7"@5mil
  • 3" - 12.5"@7.5mil
  • 2.2" - 25.75"@13mil - 100% UPC
  • 1" - 34"@20mil - 80% MRD
  • 1" - 27.25"@20mil - 25% MRD
  • 2.2" - 66.75"@40mil
  • 4" - 75"@75mil
Scan Pattern:
Linear
Interfaces/Ports
Host Interface:
Serial
Physical Characteristics
Form Factor:
In-counter
Height:
1.6"
Width:
2.3"
Depth:
2.9"
Weight (Approximate):
4.45 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • RS 232
  • USB

USB Cable separate

Certifications & Standards:

Laser Classification:

  • CDRH Class II
  • IEC Class 2

Electrical Safety:

  • Certified to UL1950
  • CA C22-2 NO950 ENG60950/IEC950

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B European Union EMC Directive
  • Australian SMA

Environmental:

  • RoHS-compliant
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701

Recommended Accessories for Model: Symbol MiniScan MS1207 Scanner

Category

  • Mounting Hardware & Stands (2)
  • Cables, Connectors, and Adapters (1)
  • Accessories (8)
Recommended Accessories for Model: Symbol MiniScan MS1207 Scanner

Mounting Hardware & Stands

Symbol (20-60136-02R)
Twilight black gooseneck intellistand for MiniScan series. Includes screws for mounting scanner to the stand
In Stock: Ships Same Day
$33.68
+ Add to Quote
Symbol (KT-65578-01R)
Miniscan Adjustable Mounting Bracket for easier mounting of DS457 in a kiosk or other confined space locations
Ships in 3-5 Days
$51.53
+ Add to Quote

Cables, Connectors, and Adapters

Symbol (25-58926-03R)
Cable Assembly (USB)

Accessories

Symbol (25-13227-02)
Cable Assembly (Host, F, TXD-2)
Symbol (25-13228-02)
Cable Assembly (TXD, P2, with Trigger and Beeper)
Symbol (25-58925-01)
Cable Assembly (USB, R-A) for MS1207 Scanners with Trigger and Beep)
Symbol (KT-65578-01)
MiniScan adjustable mounting bracket
Symbol (25-58925-01R)
Cable Assembly (USB, R-A) for MS1207 Scanners with Trigger and Beep).
Symbol (25-13228-02R)
Cable Assembly, TXD, P2 with Trigger and Beeper
Symbol (25-62186-01R)
Cable Assembly (TTL/RS-232)
Symbol (25-13227-02R)
Cable accessory, TxD on Pin2, 9-Pin Female.

The Symbol MS-1207FZY-I000 is also known as Symbol Technologies SYM-MS1207FZYI000 or MS1207FZYI000 .
