Motorola MS-1207FZY-I000R Fixed Barcode Scanner

Symbol MS1207 - Fixed Mount Scanner, CL 2, SL, Fuzzy and USB/Synapse
  • Perfect for applications that require direct association with a workstation or a notebook
  • Laser scan engine guarantees rapid error free data entry
  • Scan barcodes with a staggering speed of 36 scan/s
Read More

Full specifications (PDF)

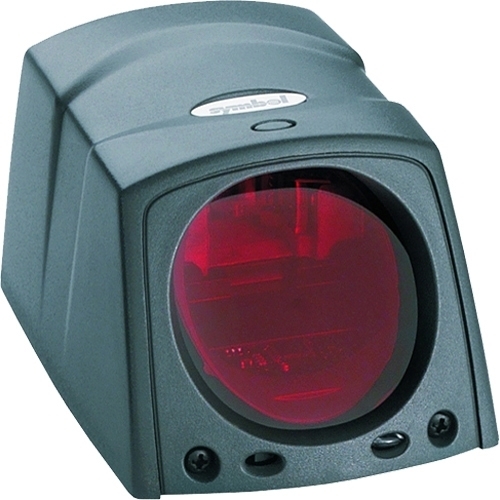

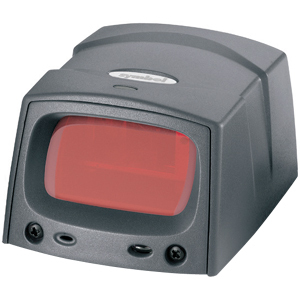

High performance fixed mount scanner
The MiniScan MS1207 from Symbol is a compact, durable, industrial fixed-mount scanner. The MiniScan MS1207 is an excellent choice for OEM devices requiring accurate, automated data collection, even in the most demanding environments. The MiniScan MS1207 scanner features immunity to ambient light and durable design which combine to deliver premium scanning performance in the most demanding environments. MiniScan MS1207 scanners are easy to program and configure, enabling you to shorten your development time and bring your product to market faster - even if you don't have in-house technical resources for scanner integration. With its rugged durable housing, exit window, integrated beeper and multiple interface options, MiniScan MS1207 scanners enable your project teams to quickly and confidently integrate high-performance 1D barcode data capture into many applications.
Symbol MS-1207FZY-I000R Overview

MiniScan MS1207 Bar Code Reader is compact, durable, industrial fixed mount scanner that is available in fuzzy or wide angle versions for maximum versatility. It is ideal for applications such as diagnostic equipment, medical instruments, kiosks, robotic equipment, lottery terminals and many more. When used as a fixed mount scanner, the modules are ideal for manufacturing, warehousing and shipping, conveyer belts, assembly lines, library systems and countless other applications needing reliable unattended scanning.

Protect Your Product

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC/EAN
  • Code 128
  • UCC/EAN 128
  • Code 39
  • Code 93
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Codabar
  • MSI
  • RSS
Light Source:
Laser
Image Sensor Type:
Linear
Scan Rate:
36 scan/s
Depth of Field:
  • 3.25" - 7"@5mil
  • 3" - 12.5"@7.5mil
  • 2.2" - 25.75"@13mil - 100% UPC
  • 1" - 34"@20mil - 80% MRD
  • 1" - 27.25"@20mil - 25% MRD
  • 2.2" - 66.75"@40mil
  • 4" - 75"@55mil
Scan Pattern:
Linear
Interfaces/Ports
Host Interface:
Serial
Physical Characteristics
Height:
1.6"
Width:
2.3"
Depth:
2.9"
Weight (Approximate):
4.45 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • RS 232
  • USB

USB Cable separate

Certifications & Standards:

Laser Classification:

  • CDRH Class II
  • IEC Class 2

Electrical Safety:

  • UL1950
  • CA C22-2 NO950 ENG60950/IEC950

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B European Union EMC Directive
  • Australian SMA

Environmental:

  • RoHS
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0024606509491, 0616174163986, 0682017473635, 0783555024119, 0886201136423
UPC: 024606509491, 616174163986, 682017473635, 783555024119, 886201136423
EAN: 0024606509491, 0616174163986, 0682017473635, 0783555024119, 0886201136423
UNSPSC: 43211701
