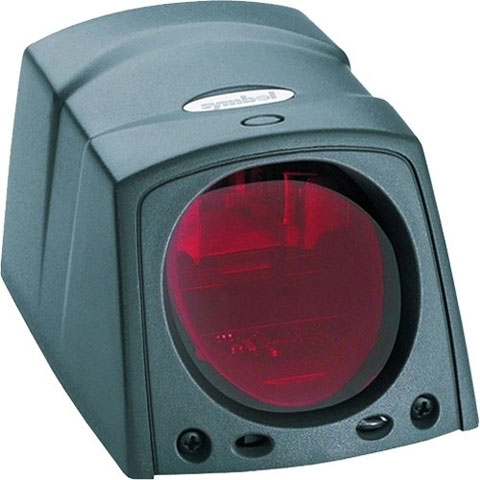

Motorola MS-1204FZY-I000 Fixed Barcode Scanner

Symbol MiniScan MS1204 - MiniScan (Housed Scan Engine, CL 2, SL, FZY and RS-232)

Full specifications (PDF)

Superior scanning for fixed-mount, unattended devices
The Symbol MiniScan MS1204 Barcode Reader is a compact, durable, industrial fixed mount scanner available in fuzzy (FZY) version for maximum versatility. The MiniScan MS1204 Barcode Reader features fuzzy logic for premium scanning on 1D barcodes including poorly printed and low contrast. The Symbol MiniScan MS1204 is an excellent choice for OEM devices requiring accurate, automated data collection, even in the most demanding environments. It can also be used as a standalone fixed mount scanner.

Technical Information

  • Form Factor: Fixed Mount Scanner
  • Barcode Dimension: 1D
  • Symbologies Supported:
    • UPC/EAN
    • Code 128
    • UCC/EAN 128
    • Code 39
    • Code 93
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Codabar
    • MSI
    • RSS
  • Scanner Type: Laser
  • Scan Rate: 36 Scans/sec Bi-directional
  • Interface Options: RS-232
  • Interface Connectivity: Corded
  • Scan Pattern: Linear
  • Input Voltage: 5 V DC

General Information

  • Manufacturer: Symbol
  • Product Line: MiniScan
  • Product Name: MiniScan-1204 Barcode Scanner

Physical Characteristics

  • Dimensions: 1.60" (40.64mm) x 2.28" (57.91mm) x 2.94" (74.68mm)
  • Weight: 4.45 oz

Agency Approvals

  • Agency Approvals:
    • CDRH Class II
    • IEC Class 2
    • UL1950
    • CA C22-2 NO950 ENG60950/IEC950
    • FCC Part 15 Class B
    • ICES-003 Class B European Union EMC Directive
    • Australian SMA

Environmental Conditions

  • Temperature:
    • -20°C (-4°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing


  • Manufacturer Warranty: 1 Year(s)

Full specifications (PDF)

Brand Symbol
Model MiniScan MS1204

The Symbol MS-1204FZY-I000 is also known as Symbol Technologies SYM-MS1204FZY or MS1204FZYI000 .
