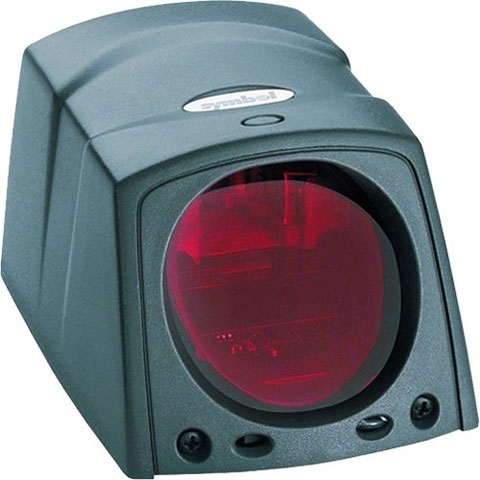

Motorola MS-1204FZY-I000R Fixed Barcode Scanner

Symbol MiniScan MS1204 - Housed Scan Engine: Class 2, Serial, Fuzzy RS-232
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Scan barcodes with a staggering speed of 36 scan/s
Read More

Full specifications (PDF)

Superior scanning for fixed-mount, unattended devices
The Symbol MiniScan MS1204 Barcode Reader is a compact, durable, industrial fixed mount scanner available in fuzzy (FZY) version for maximum versatility. The MiniScan MS1204 Barcode Reader features fuzzy logic for premium scanning on 1D barcodes including poorly printed and low contrast. The Symbol MiniScan MS1204 is an excellent choice for OEM devices requiring accurate, automated data collection, even in the most demanding environments. It can also be used as a standalone fixed mount scanner.
Symbol MS-1204FZY-I000R Overview

MiniScan MS1204 Bar Code Reader is a compact, durable, industrial fixed mount scanner available in fuzzy (FZY) version for maximum versatility. MiniScan MS1204 Bar Code Reader feature fuzzy logic for premium scanning on 1D bar codes including poorly printed and low contrast. The Symbol MS1204 is an excellent choice for OEM devices requiring accurate, automated data collection, even in the most demanding environments. It can also be used as a standalone fixed mount scanner.

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC/EAN
  • Code 128
  • UCC/EAN 128
  • Code 39
  • Code 93
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Codabar
  • MSI
  • RSS
Light Source:
Laser
Image Sensor Type:
Linear
Scan Rate:
36 scan/s
Depth of Field:
  • 3.25" - 7"@5mil
  • 3" - 12.5"@7.5mil
  • 2.2" - 25.75"@13mil - 100% UPC
  • 1" - 34"@20mil - 80% MRD
  • 1" - 27.25"@20mil - 25% MRD
  • 2.2" - 66.75"@40mil
  • 4" - 75"@55mil
Scan Pattern:
Linear
Interfaces/Ports
Host Interface:
Serial
Physical Characteristics
Height:
1.6"
Width:
2.3"
Depth:
2.9"
Weight (Approximate):
4.45 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • RS 232

USB Cable separate

Certifications & Standards:

Laser Classification:

  • CDRH Class II
  • IEC Class 2

Electrical Safety:

  • UL1950
  • CA C22-2 NO950 ENG60950/IEC950

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B European
  • Union EMC Directive
  • Australian SMA

Environmental:

  • RoHS
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0024606509477, 0682017471228
UPC: 024606509477, 682017471228
EAN: 0024606509477, 0682017471228
UNSPSC: 43211701

Loading...

The Symbol MS-1204FZY-I000R is also known as Symbol Technologies MS-1204FZY-I000R or MS1204FZYI000R .
