Motorola MC7090-PU0DJRFA7WR Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review
Symbol MC70 - WLAN 802.11a/b/g, 1D Laser-SE950, Color QVGA Display, 64MB/128MB, Numeric Keypad, Windows Mobile 5.0.0 Premium Edition, Bluetooth, 1X Battery
Windows Mobile 5.0 with WAN/LAN/PAN and Bluetooth

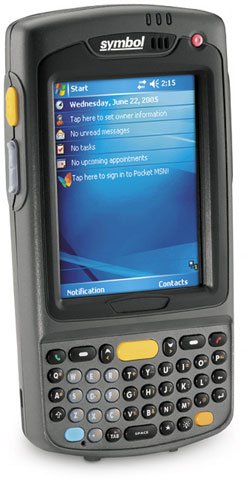

The Symbol MC70 is a rugged, compact, lightweight TNT-based portable data terminal with standard wireless connectivity using WAN/LAN/PAN and Bluetooth. Key features include a color 1/4 VGA display, 1D Laser Scanner/2D Imager, Converged voice and data (Voice over LAN/WAN), User-accessible memory (SDIO) and Windows Mobile 5.0 OS. The MC70 is built to an industrial specification in terms of drop, temperature and sealing, giving industrial users and others in harsh operating environments the ultimate in durable connectivity.

Technical Information

  • Operating System: Windows Mobile 5.0 Premium Edition
  • Processor: Intel PXA270 XScale 624MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit
    • WPA2
  • Scanner Type: Laser
  • Symbologies Supported:
    • Codabar (NW7)
    • Code 39
    • Code 93
    • Code 128
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • UCC/EAN 128
    • UPC/EAN/JAN

General Information

  • Manufacturer:
  • Product Line: Mobile Computer (MC)
  • Product Name: MC70 Mobile Computer

Physical Characteristics

  • Display: 3.5" Color QVGA - Touch Screen TFT LCD
  • Display Resolution: 240 x 320
  • User Accessible Expansion Slot: SDIO
  • Keyboard: 26 Key Numeric Integrated
  • Battery Capacity: 1900 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 1.5" (38mm) x 3" (76mm) x 6" (152mm)
  • Weight: 11.2 oz

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -10°C (14°F) to 68°C (154°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Direct Discharge
    • +/-8kVdc Indirect Discharge
  • Drop Spec:
    • 4' To Concrete
    • 5' To Concrete 23°C
  • Tumble: 1000 1.6 ft./.5 m tumbles (2000 drops)

Agency Approvals

  • Agency Approvals:
    • RoHS Compliance
    • UL / cUL 60950-1
    • IEC / EN60950-1
    • Canada: RSS-102
    • EU: EN 50360
    • USA:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • Australia:
    • AS/NZ 2772.1
    • ARPANSA

Wireless Data Communications

  • Network Connectivity:
    • WLAN 802.11 b/g/a
    • WPAN Bluetooth
  • Maximum RF Data Rate Supported: 54 Mbps
  • Output Power: 100mW
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 5GHz

Other

  • Additional Information:
    • Communication Option: Audio Region: Worldwide Voice Communication: Integrated Voice-over-IP Ready (P2P, PBX, PTT) Wi-Fi Certified
    • Communication Option: AudioRegion: WorldwideVoice Communication: Integrated Voice-over-IP Ready (P2P, PBX, PTT) Wi-Fi Certified
  • Package Contents:
    • MC70 Mobile Computer Lithium-Ion Battery Battery Cover Hand Strap Tethered Stylus Protective Overlay Regulatory Guide Quick Start Guide
    • MC70 Mobile ComputerLithium-Ion BatteryBattery CoverHand StrapTethered StylusProtective OverlayRegulatory GuideQuick Start Guide

Memory

  • RAM Memory: 64MB
  • Flash Memory: 128MB

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model MC70
Style Phone-size
RAM Memory 64 MB
Operating System Windows Mobile, Windows Mobile 5.0 Premium
Processor 624 MHz Intel XScale
Operating Temperature 14 F - 122 F
Keypad 15
IP Rating IP54
Network Connectivity 802.11a/b/g, 802.11g, 802.11a, Bluetooth
Display Resolution 240 x 320
Scanner Type Laser
Data Collection Type Wireless
Scanner Capability 1D
Drop Rating 4 ft.1.2 m
