Motorola MC7090-PK0DJRFA8WR Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review
Symbol MC70 - Windows Mobile 5.0 OS with 64MB RAM/128MB ROM, WLAN/PAN, 802.11a/b/g and Bluetooth, Numeric keypad, 2D Area Imager, extended battery. Cradles, power supply and communication cables not included. See accessories.
Windows Mobile 5.0 with WAN/LAN/PAN and Bluetooth

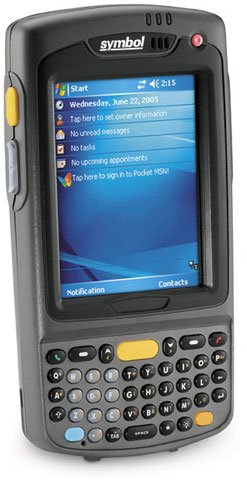

The Symbol MC70 is a rugged, compact, lightweight TNT-based portable data terminal with standard wireless connectivity using WAN/LAN/PAN and Bluetooth. Key features include a color 1/4 VGA display, 1D Laser Scanner/2D Imager, Converged voice and data (Voice over LAN/WAN), User-accessible memory (SDIO) and Windows Mobile 5.0 OS. The MC70 is built to an industrial specification in terms of drop, temperature and sealing, giving industrial users and others in harsh operating environments the ultimate in durable connectivity.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification:
    • 48" To Concrete
    • 60" To Concrete73.4°F (23°C)
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • Composite AB
    • Composite C
    • Coupon Code
    • Data Matrix
    • Discrete 2 of 5
    • Dutch Kix
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • Macro Micro PDF-417
    • Macro PDF-417
    • Micro PDF-417
    • Maxi Code
    • MSI
    • PDF-417
    • QR Code
    • RSS Expanded
    • RSS Limited
    • RSS-14
    • TLC39
    • Trioptic 39
    • UPC/EAN supplementals
    • UPCA
    • UPCE
    • US Planet
    • US Postnet
    • Webcode
    • Australian 4-state
    • Canadian 4-state
    • Japanese 4-state
    • UK 4-state

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC70
  • Product Name: MC70 Mobile Computer

Physical Characteristics

  • Height: 1.5"
  • Width: 3"
  • Length: 6"
  • Weight (Approximate): 11.20 oz

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit
    • WPA2

Other

  • Additional Information:
    • Form Factor:Ruggedized Enterprise Digital Assistant (EDA)
    • Communication Option: Audio
    • Region: Worldwide
    • Tumble: 1,000 1.6 ft./.5 m tumbles (2,000 drops)
    • Voice Communication:
    • Integrated Voice-over-IP Ready (P2P, PBX, PTT)
    • Wi-Fi Certified

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 240 x 320

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 3800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Memory

  • Flash Memory: 128 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes

Keyboard/Keypad

  • Keyboard Type: Numeric

Touchscreen Information

  • Touchscreen: Yes

I/O Expansions

  • Expansion Slot Type: SDIO

Software

  • Operating System: Windows Mobile 5.0 Premium Edition

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model MC70
Network Connectivity Bluetooth, 802.11g, 802.11a, 802.11a/b/g
Display Resolution 240 x 320
Style Phone-size
RAM Memory 64 MB
Operating System Windows Mobile, Windows Mobile 5.0 Premium
Processor 624 MHz Intel XScale
Operating Temperature 14 F - 122 F
IP Rating IP54
Keypad 15
Scanner Type Imager
Data Collection Type Wireless
Scanner Capability 2D
Drop Rating 4 ft.1.2 m
