Motorola MC7090-PK0DCQFA8WR Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review
Symbol MC70 - WLAN 802.11a/b/g, 2D Pico Imager, Color QVGA Display, 128MB/128MB, QWERTY Keypad, Windows Mobile 5.0.0 Premium Edition, Bluetooth, 2X Battery
Windows Mobile 5.0 with WAN/LAN/PAN and Bluetooth

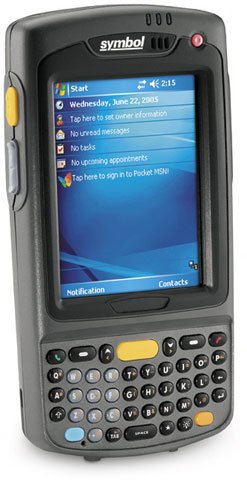

The Symbol MC70 is a rugged, compact, lightweight TNT-based portable data terminal with standard wireless connectivity using WAN/LAN/PAN and Bluetooth. Key features include a color 1/4 VGA display, 1D Laser Scanner/2D Imager, Converged voice and data (Voice over LAN/WAN), User-accessible memory (SDIO) and Windows Mobile 5.0 OS. The MC70 is built to an industrial specification in terms of drop, temperature and sealing, giving industrial users and others in harsh operating environments the ultimate in durable connectivity.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification:
    • 48" To Concrete
    • 60" To Concrete73.4°F (23°C)
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • Composite AB
    • Composite C
    • Coupon Code
    • Data Matrix
    • Discrete 2 of 5
    • Dutch Kix
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • Macro Micro PDF-417
    • Macro PDF-417
    • Micro PDF-417
    • Maxi Code
    • MSI
    • PDF-417
    • QR Code
    • RSS Expanded
    • RSS Limited
    • RSS-14
    • TLC39
    • Trioptic 39
    • UPC/EAN supplementals
    • UPCA
    • UPCE
    • US Planet
    • US Postnet
    • Webcode
    • Australian 4-state
    • Canadian 4-state
    • Japanese 4-state
    • UK 4-state

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC70
  • Product Name: MC70 Mobile Computer

Physical Characteristics

  • Height: 1.5"
  • Width: 3"
  • Length: 6"
  • Weight (Approximate): 11.20 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC70 Mobile Computer
    • Lithium-Ion Battery
    • Battery Cover
    • Hand Strap
    • Tethered Stylus
    • Protective Overlay
    • Regulatory Guide
    • Quick Start Guide
    • MC70 Mobile Computer
    • Lithium-Ion Battery
    • Battery Cover
    • Hand Strap
    • Tethered Stylus
    • Protective Overlay
    • Regulatory Guide
    • Quick Start Guide
  • Certifications & Standards:
    • Environmental Sealing: IP54
    • Electrical Safety:
    • UL / cUL 60950-1
    • IEC / EN60950-1
    • RF Exposure:
    • Canada: RSS-102
    • EU: EN 50360
    • USA:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • Australia:
    • AS/NZ 2772.1
    • ARPANSA
    • WLAN and Bluetooth:
    • Canada: RSS-210
    • Australia: AS/NZS 4268
    • USA:
    • FCC Part 15.247
    • FCC Part 15.407
    • EU:
    • EN 300 328-1
    • EN 301 893
    • Japan:
    • ARIB STD-T33
    • ARIB STD-T66
    • ARIB STD-T71
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
  • Additional Information:
    • Form Factor:Ruggedized Enterprise Digital Assistant (EDA)
    • Communication Option: Audio
    • Region: Worldwide
    • Tumble: 1,000 1.6 ft./.5 m tumbles (2,000 drops)
    • Voice Communication:
    • Integrated Voice-over-IP Ready (P2P, PBX, PTT)
    • Wi-Fi Certified

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit
    • WPA2

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 240 x 320

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Memory

  • Flash Memory: 128 MB
  • Standard Memory: 128 MB
  • Memory Card Slot: Yes

Battery Information

  • Battery Capacity: 3800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Number of Keys: 44
  • Keyboard Layout: QWERTY

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 5.0 Premium Edition

Warranty

  • Limited Warranty: 1 Year

I/O Expansions

  • Expansion Slot Type: SDIO

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model MC70
Style Phone-size
