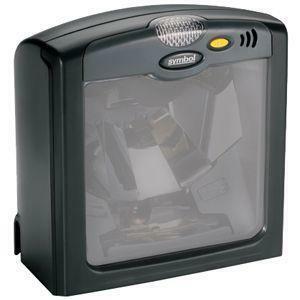

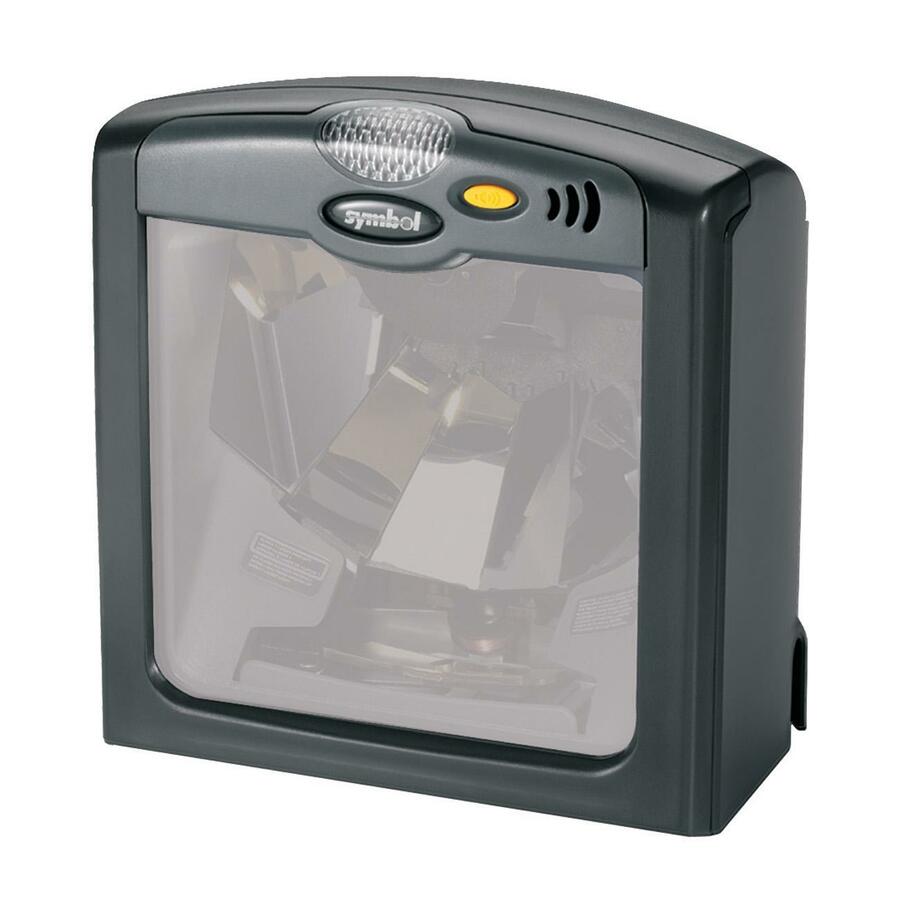

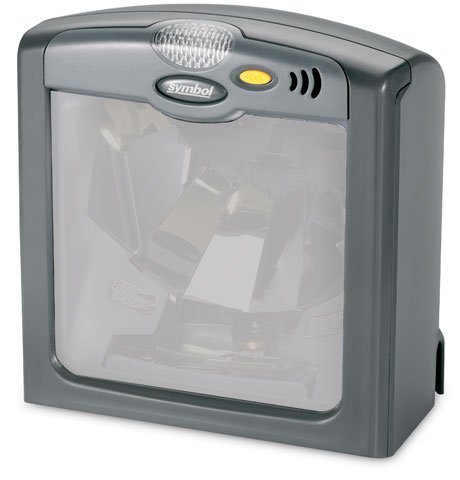

Symbol LS 7708 – Barcode Scanner – 1D

Part Number: LS7708-BENR0100A
Model: LS 7708
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Scanner (Multiple Interface, EAS Antenna, No Plural State Application, RS232 Cable DB9 Female, TxD on 2, 6 ft. Straight 25-32465-20, No Synapse Smart cable, US AC Line Cord and Universal Power Supply 110-250V) - Color: Twilight Black.
Explore all Symbol LS 7708 Barcode Scanners
Add to Quote
Symbol LS7708-BENR0100A Barcode Scanner
Symbol LS7708-BENR0100A Barcode Scanner
Symbol LS7708-BENR0100A Barcode Scanner
Symbol LS7708-BENR0100A Barcode Scanner
Symbol LS7708-BENR0100A Barcode Scanner Symbol LS7708-BENR0100A Barcode Scanner Symbol LS7708-BENR0100A Barcode Scanner Symbol LS7708-BENR0100A Barcode Scanner
Full specifications (PDF)

Symbol LS 7708 Barcode Scanner Model Overview

The LS 7708 mini-slot scanner is the perfect choice for retailers looking for higher throughput and increased productivity. The on-counter LS 7708 is available for presentation or swipe scanning in an attractive form factor. For fast, accurate merchandise scanning at checkout, this easy-to-use, hands-free scanner requires minimal operator effort. Every feature contributes to increased performance for more efficient, rapid customer checkouts.
Symbol LS7708-BENR0100A Barcode Scanner Overview

The on-counter LS7708 is available for presentation or swipe scanning in an attractive form factor. For fast, accurate merchandise scanning at checkout, this easy-to-use, hands-free scanner requires minimal operator effort. Every feature contributes to increased performance for more efficient, rapid customer checkouts.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC/EAN/JAN
  • UPC/EAN with supplementals
  • UCC/EAN 128
  • Code 128
  • ISBT 128
  • Code 39
  • Code 39 TriOptic
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • Code 11
  • Codabar
  • RSS Variants
Light Source:
Laser
Scan Rate:
2400 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0.5" - 2.5"@5mil
  • 0" - 5"@7.8mil
  • 0" - 7.5"@10.4mil
  • 0" - 10"@13mil
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5.5 V DC
Power Supply Included:
Yes
Physical Characteristics
Color:
Black
Height:
6.3"
Width:
6"
Depth:
3.7"
Weight (Approximate):
2 lb
Miscellaneous
Package Contents:
  • Symbol LS 7708 Bar Code Reader
  • EAS antenna
  • 7 feet RS-232 Straight Cable
  • 100/250V Power Supply
  • US AC Line Cord
  • Product CD
Additional Information:

Supported Interfaces:

  • USB
  • Serial
  • IBM 468X/469X
  • Keyboard Wedge

USB Cable separate

Certifications & Standards:

Electrical Safety:

  • UL 1950
  • CSA C22.2 No. 950 EN60825

Laser Safety:

  • CDRH Class IIa Laser Product
  • IEC 60825 Class 1 Laser Product

EMC:

  • CISPR B
  • FCC B
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol LS7708-BENR0100A Barcode Scanner is also known as SYM-LS7708BENR0100A or LS7708BENR0100A.
