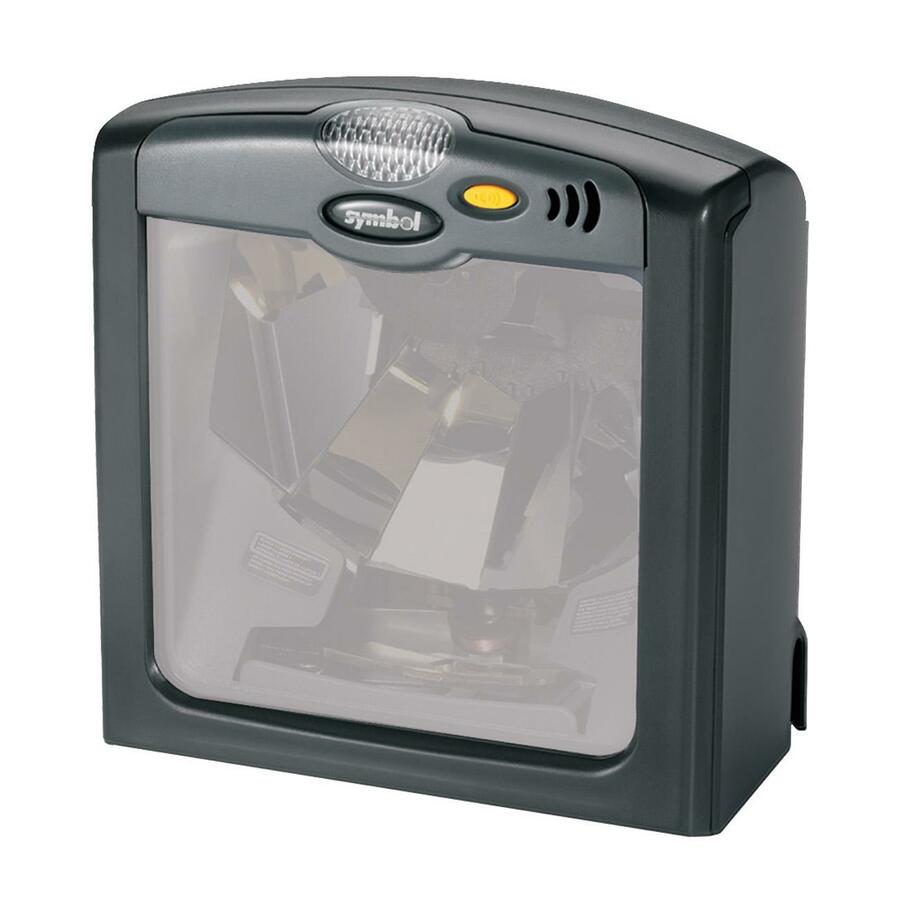

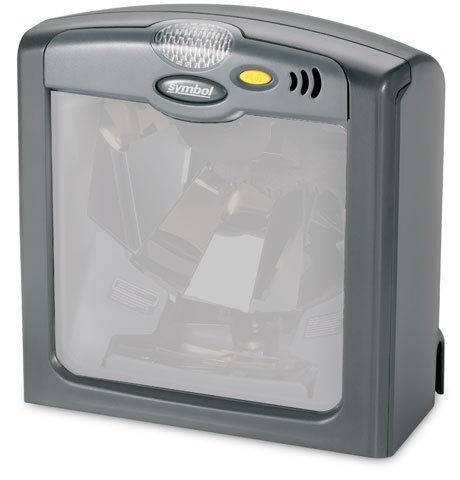

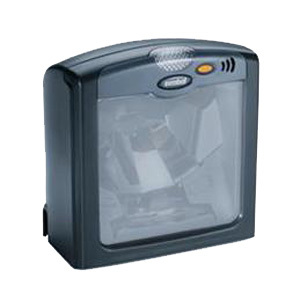

Motorola LS7708-BENR0100AR Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review
Symbol LS 7708 - Scanner (Multiple Interface, EAS Antenna, No Plural State Application, RS-232 Cable DB9 Female, TxD on 2, 6 ft. Straight 25-32465-20, No Synapse Smart cable, US AC Line Cord and Universal Power supply 110-250V) - Color: Twilight Black.
Enhance Customer Service with Faster Checkouts

The LS 7708 mini-slot scanner is the perfect choice for retailers looking for higher throughput and increased productivity. The on-counter LS 7708 is available for presentation or swipe scanning in an attractive form factor. For fast, accurate merchandise scanning at checkout, this easy-to-use, hands-free scanner requires minimal operator effort. Every feature contributes to increased performance for more efficient, rapid customer checkouts.

Technical Information

  • Scan Pattern: Omni-directional
  • Scan Rate: 2400 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN/JAN
    • UPC/EAN Supplementals
    • UCC/EAN 128
    • Code 128
    • ISBT 128
    • Code 39
    • Code 39 TriOptic
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • Code 11
    • RSS Variants
    • Codabar
    • UPC/EAN/JAN
    • UPC/EAN Supplementals
    • UCC/EAN 128
    • Code 128
    • ISBT 128
    • Code 39
    • Code 39 TriOptic
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • Code 11
    • RSS Variants
    • Codabar
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 0.50" - 2.50"@5 mil
    • 0 mil - 5"@7.80 mil
    • 0 mil - 7.50"@10.40 mil
    • 0 mil - 10"@13 mil - 100% UPC/EAN

General Information

  • Product Type: Desktop Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS7708
  • Product Name: Symbol LS 7708 Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 6.3"
  • Width: 6"
  • Depth: 3.7"
  • Color: Black
  • Weight (Approximate): 2 lb

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Symbol LS 7708 Barcode Reader
    • EAS Antenna
    • US AC Line Cord
    • Universal Power Supply 110-250V
    • 6 ' Straight Cable
    • Symbol LS 7708 Barcode Reader
    • EAS Antenna
    • US AC Line Cord
    • Universal Power Supply 110-250V
    • 6 ' Straight Cable
  • Certifications & Standards:
    • RoHS Compliance
    • Electrical Safety:
    • UL 1950
    • CSA C22.2 No. 950
    • EN60825
    • Laser Safety:
    • CDRH Class IIa
    • IEC 60825 Class 1
    • EMC:
    • CISPR B
    • FCC B
  • Platform Supported: PC
  • Additional Information:
    • Supported Interfaces:
    • USB
    • IBM 468X/469X
    • Serial
    • Keyboard Wedge
    • Synapse

Warranty

  • Limited Warranty: 2 Year

Power Description

  • Input Voltage: 5.5 V DC

Full specifications (PDF)



Customer Review Summary

Recommended Accessories for Model: Symbol LS 7708 Scanner

The Symbol LS7708-BENR0100AR is also known as Symbol Technologies SYM-LS7708BENR0100AR or LS7708BENR0100AR .
