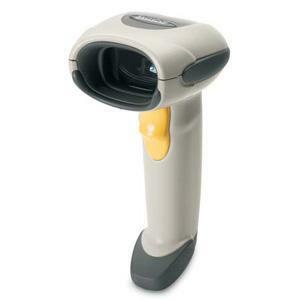

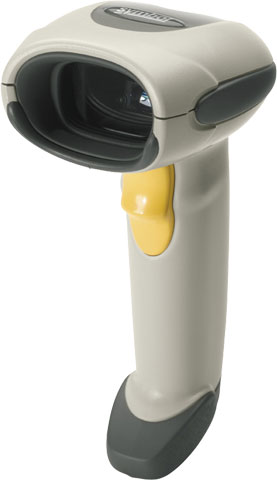

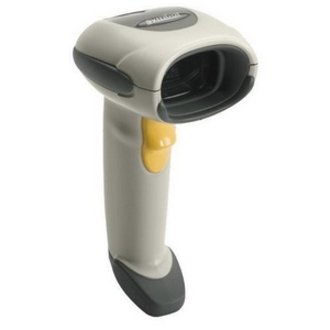

Motorola LS4208-SR20001ZZR Barcode Scanner
The LS4208 is the next generation of Symbol's best selling LS4000 laser scanner series. Designed to increase efficiencies in scan-intensive operations, the LS4208 laser handheld scanner accelerates throughput with productivity-enhancing features never before delivered by a single scanner. It offers continuous, one-pass scanning, allowing novice and advanced users alike to process more items more rapidly and spend less time keying in data. With its innovative multi-line rastering scan pattern, the Symbol LS4208 enables the quick and accurate scanning of all types of one-dimensional (1D) symbologies, including damaged symbols and stacked reduced space symbology (RSS) barcodes. It also provides a wide working range and superior motion tolerance to increase scanning flexibility and performance. Choose from a variety of interfaces, including USB, RS-232 and Keyboard wedge.
Technical Information
- Barcode Dimension: 1D
- Scan Pattern: 2D Raster
- Connectivity Technology: Cable
- Light Source: Laser
- Barcode Symbology Supported:
- UPC/EAN Supplementals
- Code 39
- Code 39 Full ASCII
- Trioptic Code 39
- RSS Variants
- UCC/EAN 128
- Code 128
- Code 128 Full ASCII
- Code 93
- Codabar (NW1)
- Interleaved 2 of 5
- Discrete 2 of 5
- MSI
- Code ll
- IATA
- Bookland EAN
- Code 32
- UPC/EAN Supplementals
- Code 39
- Code 39 Full ASCII
- Trioptic Code 39
- RSS Variants
- UCC/EAN 128
- Code 128
- Code 128 Full ASCII
- Code 93
- Codabar (NW1)
- Interleaved 2 of 5
- Discrete 2 of 5
- MSI
- Code ll
- IATA
- Bookland EAN
- Code 32
- Maximum Scan Resolution: 5 mil
- Depth of Field:
- 1.50" - 5.50"@5 mil - Code 39
- 0 mil - 14"@10 mil - Code 39
- 0 mil - 19"@13 mil - 100% UPC/EAN
- 0 mil - 29"@20 mil - Code 39
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: LS4208
- Product Name: Symbol LS 4208 Barcode Reader
- Product Line: Symbol
Physical Characteristics
- Height: 6.7"
- Width: 2.7"
- Depth: 3.7"
- Color: White
- Weight (Approximate): 6.40 oz
Interfaces/Ports
- Host Interface: Multi-interface
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Certifications & Standards:
- RoHS Compliant
- Electrical safety:
- UL1950
- CSA C22.2 No. 950
- EN60950/IEC950
- Laser safety:
- CDRH Class II
- IEC Class 2
- EMI/RFI:
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Australian SMA
- Additional Information:
- Supported Interfaces:
- Serial
- IBM 468X/469X
- Keyboard Wedge
- USB
- Wand Emulation
Warranty
- Limited Warranty: 5 Year
Power Description
- Input Voltage: 5 V DC
Full specifications (PDF)| Brand | Symbol |
| Model | LS4208 |
| Scanner Capability | 1D |
| Scanner Type | Laser |
| Connectivity | Corded |
| Color | White |
| Form Factor | Handheld |
| Included Cables | Scanner Only - No Cable |
| Ruggedness | General Purpose |
|
Motorola Cable (CBA-U01-S07ZAR)
USB Cable, 7ft (2m) Straight, Series A Connector.
:
|
$25.90 + Add to Quote |
|
Symbol Cable (CBA-U12-C09ZAR)
9 feet, USB, Dark gray, Maximum, Coiled
:
|
$28.80 + Add to Quote |
|
Symbol (11-66553-06R)
Wall mount bracket for several Motorola DS and LS barcode scanners. Color: Gray.
:
|
$28.80 + Add to Quote |
|
Symbol Cable (CBA-R02-C09PAR)
Assembly (9 feet, Coiled, RS-232, STD-DB9 Female, TXD on 2). Required power supply not included, see (Part# PWRS-14000-253R).
:
|
$28.90 + Add to Quote |
|
|
Symbol Cable (CBA-U15-S15ZAR)
15' PoweredUSB cable, Straight, Call to purchase.
:
|
$45.10 + Add to Quote |
The Symbol LS4208-SR20001ZZR is also known as Symbol Technologies SYM-LS4208SR20001ZZR or LS4208SR20001ZZR .
