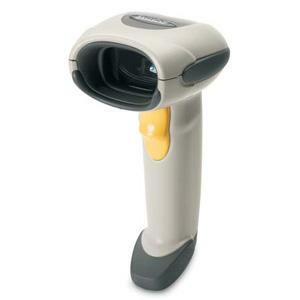

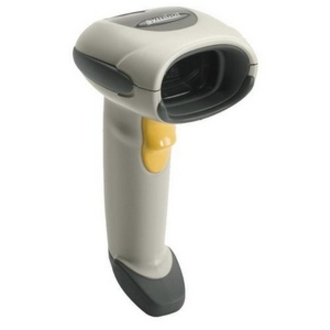

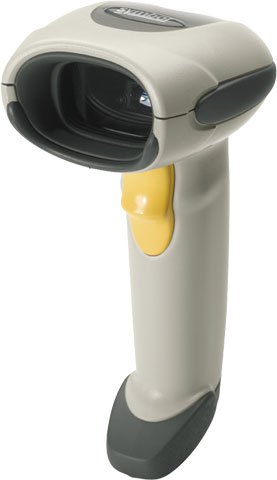

Motorola LS4208-SWZU0100Z Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review
Symbol LS4208 - USB Kit: Includes scanner and USB Series A 7 ft. straight cable - White.
Durable construction for all day, everyday usage.

The LS4208 is the next generation of Symbol's best selling LS4000 laser scanner series. Designed to increase efficiencies in scan-intensive operations, the LS4208 laser handheld scanner accelerates throughput with productivity-enhancing features never before delivered by a single scanner. It offers continuous, one-pass scanning, allowing novice and advanced users alike to process more items more rapidly and spend less time keying in data. With its innovative multi-line rastering scan pattern, the Symbol LS4208 enables the quick and accurate scanning of all types of one-dimensional (1D) symbologies, including damaged symbols and stacked reduced space symbology (RSS) barcodes. It also provides a wide working range and superior motion tolerance to increase scanning flexibility and performance. Choose from a variety of interfaces, including USB, RS-232 and Keyboard wedge.

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: 2D Raster
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Code ll
    • IATA
    • Bookland EAN
    • Code 32
    • UPC/EAN Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Code ll
    • IATA
    • Bookland EAN
    • Code 32
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 1.50" - 5.50"@5 mil - Code 39
    • 0 mil - 14"@10 mil - Code 39
    • 0 mil - 19"@13 mil - 100% UPC/EAN
    • 0 mil - 29"@20 mil - Code 39

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS4208
  • Product Name: Symbol LS 4208 Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 6.7"
  • Width: 2.7"
  • Depth: 3.7"
  • Color: White
  • Weight (Approximate): 6.40 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • Symbol LS 4208 Barcode Reader
    • 7ft USB Type A Straight Cable
    • Symbol LS 4208 Barcode Reader
    • 7ft USB Type A Straight Cable
  • Certifications & Standards:
    • Electrical safety:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • Laser safety:
    • CDRH Class II
    • IEC Class 2
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
  • Platform Supported: PC
  • Additional Information:
    • Supported Interfaces:
    • SerialIBM 468X/469XKeyboard WedgeUSBWand Emulation

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC

Full specifications (PDF)
