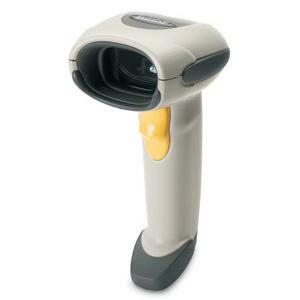

Symbol LS4208-PR20007ZZR Barcode Scanner

Zebra DS2208-SR00007ZZWW Barcode Scanner A newer version of this item is available.
It is replaced by the Zebra DS2208-SR00007ZZWW Barcode Scanner.
Symbol LS4208 - SCANNER ONLY, 1D Laser, PDF417 decoding capability. Cables and accessories must be purchased separately. Color: Black. For the full kit purchase (Part# LS4208-PBZU0100ZR).
  • Speed up customer's checkout experience
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Symbol LS4208 Barcode Scanner Model Overview
The LS4208 is the next generation of Symbol's best selling LS4000 laser scanner series. Designed to increase efficiencies in scan-intensive operations, the LS4208 laser handheld scanner accelerates throughput with productivity-enhancing features never before delivered by a single scanner. It offers continuous, one-pass scanning, allowing novice and advanced users alike to process more items more rapidly and spend less time keying in data. With its innovative multi-line rastering scan pattern, the Symbol LS4208 enables the quick and accurate scanning of all types of one-dimensional (1D) symbologies, including damaged symbols and stacked reduced space symbology (RSS) barcodes. It also provides a wide working range and superior motion tolerance to increase scanning flexibility and performance. Choose from a variety of interfaces, including USB, RS232 and Keyboard Wedge.
Symbol LS4208-PR20007ZZR Barcode Scanner Overview

With Symbol's LS4208 handheld laser Bar Code Reader, user is able to effortlessly speed throughput, even with bar codes in poor condition. Wherever need to quickly capture and process data such as at the retail checkout counter, in pharmacies and hospitals, and in light warehouse environments this ergonomically designed scanner helps to increase accuracy, improve productivity, cut maintenance costs and reduce the risk of downtime.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN Supplementals
  • Code 39
  • Code 39 Full ASCII
  • Trioptic Code 39
  • RSS Variants
  • UCC/EAN 128
  • Code 128
  • Code 128 Full ASCII
  • Code 93
  • Codabar (NW1)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • MSI
  • Code ll
  • IATA
  • Bookland EAN
  • Code 32
  • PDF 417
  • Micro PDF
  • Composite Codes
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1.5" - 5.5"@5mil - Code 39
  • 0" - 14"@10mil - Code 39
  • 0" - 19"@13mil - 100% UPC/EAN
  • 0" - 29"@20mil - Code 39
Scan Pattern:
2D Raster
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Black
Height:
6.7"
Width:
2.7"
Depth:
3.7"
Weight (Approximate):
6.40 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • IBM 468X/469X
  • Keyboard Wedge
  • USB
  • Wand Emulation

USB Cable separate

Certifications & Standards:

Electrical safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

Laser safety:

  • CDRH Class II
  • IEC Class 2

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0005012100380, 5052178556600
UPC: 005012100380
EAN: 0005012100380, 5052178556600
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol LS4208-PR20007ZZR Barcode Scanner is also known as SYM-LS4208PR20007ZZR or LS4208PR20007ZZR.
