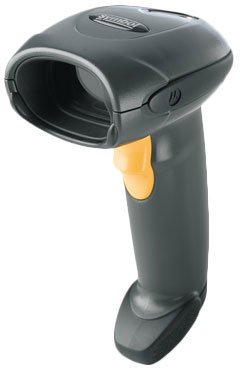

Motorola LS4208-PBZU0100ZR Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review
Symbol LS4208 - USB Kit, 1D Laser, PDF417 decoding capability. Includes USB cable. Color: Black
Durable construction for all day, everyday usage.

The LS4208 is the next generation of Symbol's best selling LS4000 laser scanner series. Designed to increase efficiencies in scan-intensive operations, the LS4208 laser handheld scanner accelerates throughput with productivity-enhancing features never before delivered by a single scanner. It offers continuous, one-pass scanning, allowing novice and advanced users alike to process more items more rapidly and spend less time keying in data. With its innovative multi-line rastering scan pattern, the Symbol LS4208 enables the quick and accurate scanning of all types of one-dimensional (1D) symbologies, including damaged symbols and stacked reduced space symbology (RSS) barcodes. It also provides a wide working range and superior motion tolerance to increase scanning flexibility and performance. Choose from a variety of interfaces, including USB, RS-232 and Keyboard wedge.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: 2D Raster
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Code ll
    • IATA
    • Bookland EAN
    • Code 32
    • PDF 417
    • Micro PDF
    • Composite Codes
    • UPC/EAN Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Code ll
    • IATA
    • Bookland EAN
    • Code 32
    • PDF 417
    • Micro PDF
    • Composite Codes
  • Maximum Scan Resolution: 20 mil
  • Depth of Field:
    • 1.50" - 5.50"@5 mil - Code 39
    • 0 mil - 14"@10 mil - Code 39
    • 0 mil - 19"@13 mil - 100% UPC/EAN
    • 0 mil - 29"@20 mil - Code 39

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS4208
  • Product Name: Symbol LS 4208 Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 6.7"
  • Width: 2.7"
  • Depth: 3.7"
  • Color: Black
  • Weight (Approximate): 6.40 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • Symbol LS 4208 Barcode Reader
    • 7ft USB Type A Straight Cable
    • Symbol LS 4208 Barcode Reader
    • 7ft USB Type A Straight Cable
  • Certifications & Standards:
    • Electrical safety:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • Laser safety:
    • CDRH Class II
    • IEC Class 2
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • IBM 468X/469X
    • Keyboard Wedge
    • USB
    • Wand Emulation

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model LS4208
Scanner Type Laser
Connectivity Corded
Connection USB
Scan Pattern Raster
Communication Range less than 33 ft
Form Factor Handheld
Scanner Capability 1D
Color Black
Included Cables USB
Ruggedness General Purpose
