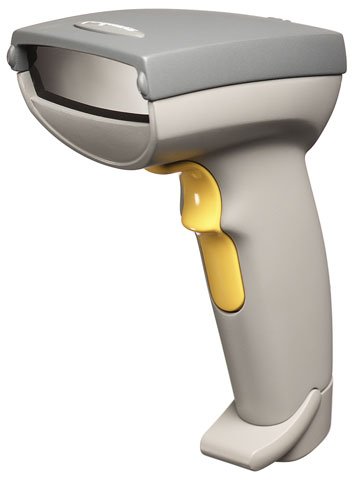

Symbol LS4007 i – Barcode Scanner – 1D

Part Number: LS4007I-I100
Model: LS4007 i

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  USB scanner. Includes product reference guide. Order cables separately. See accessories.

Symbol LS4007 i Barcode Scanner Model Overview

The LS4007 i Series is the result of Symbol's experience in the design of innovative, high-performance scanning solutions. The LS4007 i incorporates a 650 nm laser that provides a bright scan line ensuring easy aiming even in high ambient light conditions. Combine this with a robust working range of contact out to more than 16 in. (40 cm) on 100% UPC codes and barcode data capture is a snap. Plus built-in Adaptive Logic Signal Processing decodes poorly printed and damaged barcodes. System integration is facilitated with Advanced Data Formatting (ADF), a Symbol innovation that enables the barcode data string to be modified before sending it on to the host computer. This enhances compatibility between barcoded data and the applications software by allowing the scanner to be programmed rather than modifying the host application which could be costly. The LS4007 i also features a USB interface, allowing for quick and easy out-of-the-box operation. All units ship with one product reference guide. All units feature Symbol's 5 year warranty.
Symbol LS4007I-I100 Barcode Scanner Overview

The LS 4007i incorporates a 650 nm laser that provides a bright scan line ensuring easy aiming even in high ambient light conditions. Combine this with a robust working range of contact out to more than 16 in. (40 cm) on 100% UPC codes and bar code data capture is a snap. Plus built-in Adaptive Logic Signal Processing decodes poorly printed and damaged bar codes.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN
  • Code 39
  • Code 39 Full ASCII
  • Trioptic Code 39
  • Code 93
  • Codabar
  • Interleaved 2 of 5
  • Code 128
  • Discrete 2 of 5
  • UCC/EAN 128
  • Bookland EAN
  • MSI/PLESSEY
  • PDF 417
  • UPC/EAN Supplementals
Light Source:
Laser
Maximum Scan Resolution:
6.60 mil
Depth of Field:
  • 1" - 4.75"@5mil
  • 0.5" - 9"@7.5mil
  • 0" - 16"@100% UPC/EAN
  • 1" - 26"@20mil
  • 3" - 45"@55mil
  • 1" - 5"@6.6mil - PDF417
  • 2" - 15"@15mil - PDF417
Interfaces/Ports
Host Interface:
USB
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Height:
6.3"
Width:
5"
Depth:
2.8"
Weight (Approximate):
6 oz
Miscellaneous
Additional Information:

USB Cable separate

Certifications & Standards:

Electrical Safety:

  • Certified to UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

Laser Safety:

  • CDRH Class II
  • IEC Class 2

EMI/RFI:

  • FCC Part 15 Class A
  • ICES-003 Class A
  • European Union EMC Directive
  • Australian SMA
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Scanner Accessories (3)

Recommended Accessories for Model: Symbol LS4007I-I100 Barcode Scanner

Top Scanner Accessories Purchased With Symbol LS4007I-I100

Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol LS4007I-I100 Barcode Scanner is also known as SYM-LS4007I or LS4007II100.
