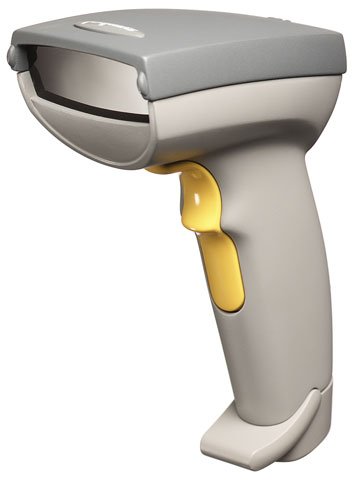

Symbol LS4007I-I100-0100Z Barcode Scanner

The Symbol LS4007I-I100-0100Z Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Symbol LS4007 i - USB kit: Scanner, 10ft USB cable & product reference guide.
  • Perfect for applications that require direct association with a workstation or a notebook
  • Laser scan engine guarantees rapid error free data entry
Read More
Discontinued Need Assistance?
Add to Quote
Symbol LS4007 i Barcode Scanner Model Overview
The LS4007 i Series is the result of Symbol's experience in the design of innovative, high-performance scanning solutions. The LS4007 i incorporates a 650 nm laser that provides a bright scan line ensuring easy aiming even in high ambient light conditions. Combine this with a robust working range of contact out to more than 16 in. (40 cm) on 100% UPC codes and barcode data capture is a snap. Plus built-in Adaptive Logic Signal Processing decodes poorly printed and damaged barcodes. System integration is facilitated with Advanced Data Formatting (ADF), a Symbol innovation that enables the barcode data string to be modified before sending it on to the host computer. This enhances compatibility between barcoded data and the applications software by allowing the scanner to be programmed rather than modifying the host application which could be costly. The LS4007 i also features a USB interface, allowing for quick and easy out-of-the-box operation. All units ship with one product reference guide. All units feature Symbol's 5 year warranty.
Symbol LS4007I-I100-0100Z Barcode Scanner Overview

For superior bar code scanning performance with maximum user comfort at a highly attractive price, the LS 4007i Scanner from Symbol Technologies establishes an award-winning standard of excellence that's backed by a 5 Year Plus warranty.The LS 4007i is the result of Symbol's experience in the design of innovative, high-performance scanning solutions.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN
  • Code 39
  • Code 39 Full ASCII
  • Trioptic Code 39
  • Code 93
  • Codabar
  • Interleaved 2 of 5
  • Code 128
  • UCC/EAN 128
  • Discrete 2 of 5
  • MSI/PLESSEY
  • PDF 417
  • Bookland EAN
  • UPC/EAN Supplementals
Light Source:
Laser
Maximum Scan Resolution:
6.60 mil
Depth of Field:
  • 1" - 4.75"@5mil
  • 0" - 16"@100% UPC/EAN
  • 1" - 26"@20mil
  • 0.5" - 9"@7.5mil
  • 3" - 45"@55mil
  • 1" - 5"@6.6mil - PDF417
  • 2" - 15"@15mil - PDF417
Interfaces/Ports
Host Interface:
USB
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Height:
6.3"
Width:
2.8"
Depth:
5"
Weight (Approximate):
6 oz
Miscellaneous
Package Contents:
  • Symbol LS 4007i Bar Code Reader
  • Cable: USB (Series A Connector, 9ft. Coiled) (25-42751-20 )
  • Product Reference Guide (70-37898-03)
Additional Information:
  • Roll (Skew): +/- 25°
  • Pitch: +/- 55°
  • Yaw: +/- 55°

USB Cable separate

Platform Supported:
  • PC
  • Mac
Certifications & Standards:

Electrical Safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

Laser Safety:

  • CDRH Class II
  • IEC Class 2

EMI/RFI:

  • FCC Part 15 Class A
  • ICES-003 Class A
  • European Union EMC Directive
  • Australian SMA
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol LS4007I-I100-0100Z Barcode Scanner is also known as SYM-LS4007I0100Z or LS4007II1000100Z.
