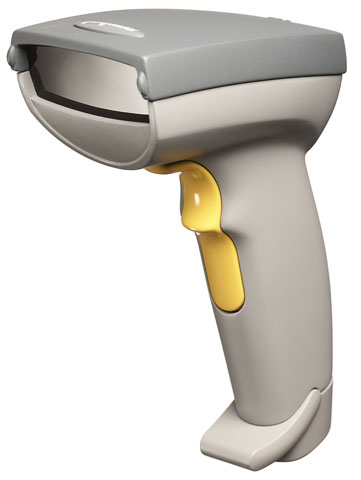

Symbol LS4006I-I100-7805Z Barcode Scanner

The Symbol LS4006I-I100-7805Z Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Symbol LS4006 i - Keyboard Wedge kit with 20 ft. Adapter Cable, PS2 Synapse Cable and Programming Manual
  • Perfect for applications that require direct association with a workstation or a notebook
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Read More
Discontinued Need Assistance?
Add to Quote
Symbol LS4006 i Barcode Scanner Model Overview
The LS4006 i Series is the result of Symbol's experience in the design of innovative, high-performance scanning solutions. The LS4006 i incorporates a 650 nm laser that provides a bright scan line ensuring easy aiming even in high ambient light conditions. Combine this with a robust working range of contact out to more than 16 in. (40 cm) on 100% UPC codes and barcode data capture is a snap. Plus built-in Adaptive Logic Signal Processing decodes poorly printed and damaged barcodes. System integration is facilitated with Advanced Data Formatting (ADF), a Symbol innovation that enables the barcode data string to be modified before sending it on to the host computer. This enhances compatibility between barcoded data and the applications software by allowing the scanner to be programmed rather than modifying the host application which could be costly. All units ship with one product reference guide. All units feature Symbol's 5 year warranty.
Symbol LS4006I-I100-7805Z Barcode Scanner Overview

For superior bar code scanning performance with maximum user comfort at a highly attractive price, the LS 4006i Scanner from Symbol Technologies establishes an award-winning standard of excellence that's backed by a 5 Year Plus warranty.The LS 4006i is the result of Symbol's experience in the design of innovative, high-performance scanning solutions.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN
  • Code 39
  • Code 39 Full ASCII
  • Trioptic Code 39
  • Code 93
  • Codabar
  • Interleaved 2 of 5
  • Code 128
  • UCC/EAN 128
  • Discrete 2 of 5
  • MSI/PLESSEY
  • PDF 417
  • Bookland EAN
  • UPC/EAN Supplementals
Light Source:
Laser
Depth of Field:
  • 1" - 4.75"@5mil
  • 3" - 45"@55mil
  • 0" - 16"@100% UPC/EAN
  • 1" - 26"@20mil
Scanning Distance:
16"
Interfaces/Ports
Host Interface:
Keyboard Wedge
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Height:
6.3"
Width:
2.8"
Depth:
5"
Weight (Approximate):
6 oz
Miscellaneous
Package Contents:
  • Symbol LS 4006i Bar Code Reader
  • CBL ASSY:SYNAPSE DGM 20 FT ( 25-16458-21)
  • Cables for Synapse (STI80-0200)
  • Module PS/2 Keyboard Wedge
  • Product Reference Guide (70-37898-03)
Additional Information:
  • Roll (Skew): ± 25°
  • Pitch: ± 55°
  • Yaw: ± 55°
  • Cable Support: Removable rubber cable boot for superior cable and strain relief

USB Cable separate

Certifications & Standards:

Electrical Safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

Laser Safety:

  • CDRH Class II
  • IEC Class 2

EMI/RFI:

  • FCC Part 15 Class A
  • ICES-003 Class A
  • European Union EMC Directive
  • Australian SMA
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol LS4006I-I100-7805Z Barcode Scanner is also known as SYM-LS4006I7805Z
