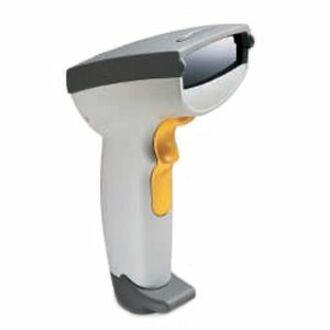

Symbol LS4006I-I100-1500Z Barcode Scanner

The Symbol LS4006I-I100-1500Z Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Symbol LS4006 i - keyboard wedge kit. Includes AT/XT 'Y' cable & product reference guide.
  • Perfect for applications that require direct association with a workstation or a notebook
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • Laser scan engine guarantees rapid error free data entry
Read More
Discontinued Need Assistance?
Add to Quote

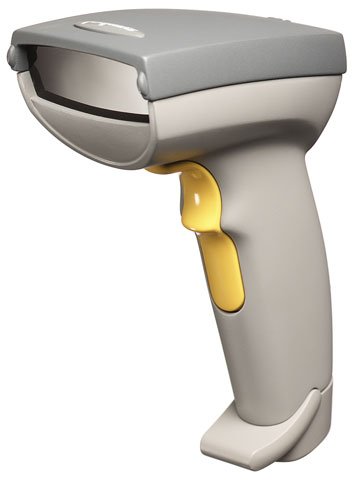

Symbol LS4006 i Barcode Scanner Model Overview
The LS4006 i Series is the result of Symbol's experience in the design of innovative, high-performance scanning solutions. The LS4006 i incorporates a 650 nm laser that provides a bright scan line ensuring easy aiming even in high ambient light conditions. Combine this with a robust working range of contact out to more than 16 in. (40 cm) on 100% UPC codes and barcode data capture is a snap. Plus built-in Adaptive Logic Signal Processing decodes poorly printed and damaged barcodes. System integration is facilitated with Advanced Data Formatting (ADF), a Symbol innovation that enables the barcode data string to be modified before sending it on to the host computer. This enhances compatibility between barcoded data and the applications software by allowing the scanner to be programmed rather than modifying the host application which could be costly. All units ship with one product reference guide. All units feature Symbol's 5 year warranty.
Symbol LS4006I-I100-1500Z Barcode Scanner Overview

The LS 4006i Bar Code Reader is the result of Symbol's experience in the design of innovative, high-performance scanning solutions. It has built-in Adaptive Logic Signal Processing decodes poorly printed and damaged bar codes. To maximize user comfort, the LS 4006i Bar Code Reader features a lightweight design with the handle optimized to fit comfortably into hands of all sizes. Reduced finger fatigue, even over extended periods of use, is achieved with a patented two-finger trigger.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN Supplementals
  • Code 39
  • Code 39 Full ASCII
  • Trioptic Code 39
  • Code 93
  • Codabar
  • Interleaved 2 of 5
  • Code 128
  • UCC/EAN 128
  • Discrete 2 of 5
  • MSI/PLESSEY
  • Bookland EAN
  • PDF 417
  • UPC/EAN
Light Source:
Laser
Depth of Field:
  • 1" - 4.75"@5mil
  • 0.5" - 9"@7.5mil
  • 0" - 11"@80% UPC/EAN
  • 0" - 16"@100% UPC/EAN
  • 1" - 26"@20mil
  • 2" - 35"@40mil
  • 3" - 45"@55mil
Interfaces/Ports
Host Interface:
Keyboard Wedge
Power Description
Input Voltage:
14 V DC
Physical Characteristics
Height:
6.3"
Width:
2.8"
Depth:
5"
Weight (Approximate):
6 oz
Miscellaneous
Package Contents:
  • LS 4006i Bar Code Reader
  • Keyboard PS/2, 8ft Straight Cable (25-35988-20)
  • Adapter Connector for PS/2 to AT/XT (Set) - Keyboard Wedge (KT-32903-01)
  • Product Refrence Guide (70-37898-03)
Additional Information:

USB Cable separate

Certifications & Standards:

Electrical Safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

Laser Safety:

  • CDRH Class II
  • IEC Class 2IEC Class 2

EMI/RFI:

  • FCC Part 15 Class A
  • ICES-003 Class A
  • European Union EMC Directive
  • Australian SMA
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 7426100960922
EAN: 7426100960922
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol LS4006I-I100-1500Z Barcode Scanner is also known as SYM-LS4006IAT
