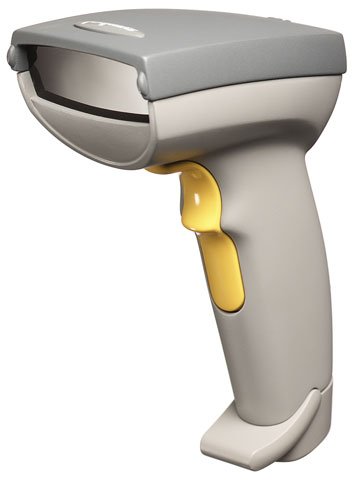

Symbol LS4006 i – Barcode Scanner – 1D

Part Number: LS4006I-I100-1400A
Model: LS4006 i

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Keyboard Wedge kit with PS2 Direct Connect Cable, Power Supply and Programming Manual

Symbol LS4006 i Barcode Scanner Model Overview

The LS4006 i Series is the result of Symbol's experience in the design of innovative, high-performance scanning solutions. The LS4006 i incorporates a 650 nm laser that provides a bright scan line ensuring easy aiming even in high ambient light conditions. Combine this with a robust working range of contact out to more than 16 in. (40 cm) on 100% UPC codes and barcode data capture is a snap. Plus built-in Adaptive Logic Signal Processing decodes poorly printed and damaged barcodes. System integration is facilitated with Advanced Data Formatting (ADF), a Symbol innovation that enables the barcode data string to be modified before sending it on to the host computer. This enhances compatibility between barcoded data and the applications software by allowing the scanner to be programmed rather than modifying the host application which could be costly. All units ship with one product reference guide. All units feature Symbol's 5 year warranty.
Symbol LS4006I-I100-1400A Barcode Scanner Overview

The Benchmark in Handheld Laser Scanners:

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN
  • Codabar
  • Code 39 Full ASCII
  • Coupon Code
  • Code 39
  • Code 93
  • Code 128
  • Trioptic Code 39
  • Interleaved 2 of 5
  • UCC/EAN 128
  • Discrete 2 of 5
  • MSI/PLESSEY
  • PDF 417
  • Bookland EAN
  • UPC/EAN Supplementals
Light Source:
Laser
Depth of Field:
  • 3" - 45"@55mil
  • 0" - 16"@100% UPC/EAN
  • 1" - 4.75"@5mil
  • 1" - 26"@20mil
Scanning Distance:
16"
Interfaces/Ports
Host Interface:
Keyboard Wedge
Power Description
Input Voltage:
14 V DC
Power Supply Included:
Yes
Physical Characteristics
Form Factor:
Handheld
Height:
6.3"
Width:
2.8"
Depth:
5"
Weight (Approximate):
6 oz
Miscellaneous
Package Contents:
  • Symbol LS 4006i Bar Code Reader
  • Keyboard PS/2 (25-35988-20), 8ft Straight Cable
  • USA Power Supply (50-14000-008)
  • Product Reference Guide (70-37898-03)
Additional Information:
  • Roll (Skew): ± 25°
  • Pitch: ± 55°
  • Yaw: ± 55°
  • Cable Support: Removable rubber cable boot for superior cable and strain relief

USB Cable separate

Certifications & Standards:

Electrical Safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

Laser Safety:

  • CDRH Class II
  • IEC Class 2

EMI/RFI:

  • FCC Part 15 Class A
  • ICES-003 Class A
  • European Union EMC Directive
  • Australian SMA
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
