Symbol LS4005I-I100-0200Z Barcode Scanner

The Symbol LS4005I-I100-0200Z Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Symbol LS4004 i - RS232 Cable and Product Reference Guide.
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

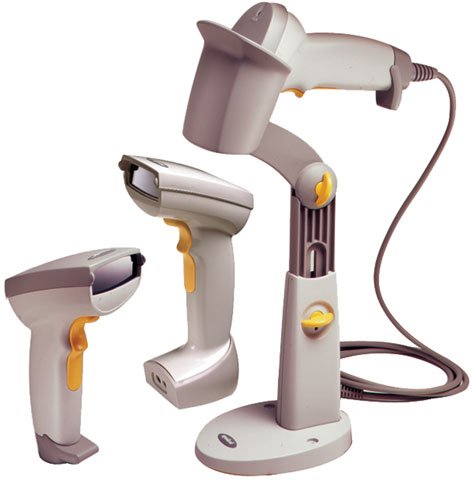

Symbol LS4004 i Barcode Scanner Model Overview
The LS4004 i Series is the result of Symbol's experience in the design of innovative, high-performance scanning solutions. The LS4004 i incorporates a 650 nm laser that provides a bright scan line ensuring easy aiming even in high ambient light conditions. Combine this with a robust working range of contact out to more than 16 in. (40 cm) on 100% UPC codes and barcode data capture is a snap. Plus built-in Adaptive Logic Signal Processing decodes poorly printed and damaged barcodes. System integration is facilitated with Advanced Data Formatting (ADF), a Symbol innovation that enables the barcode data string to be modified before sending it on to the host computer. This enhances compatibility between barcoded data and the applications software by allowing the scanner to be programmed rather than modifying the host application which could be costly. All units ship with one product reference guide. All units feature Symbol's 5 year warranty.
Symbol LS4005I-I100-0200Z Barcode Scanner Overview

For superior bar code scanning performance with maximum user comfort at a highly attractive price, the LS 4005i Scanner from Symbol Technologies establishes an award-winning standard of excellence that's backed by a 5 Year Plus warranty.The LS 4005i is the result of Symbol's experience in the design of innovative, high-performance scanning solutions.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN
  • Code 39
  • Code 39 Full ASCII
  • Trioptic Code 39
  • Code 93
  • Codabar
  • Interleaved 2 of 5
  • Code 128
  • UCC/EAN 128
  • Discrete 2 of 5
  • MSI/PLESSEY
  • PDF 417
  • Bookland EAN
  • UPC/EAN Supplementals
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1" - 4.75"@5mil
  • 0" - 16"@100% UPC/EAN
  • 1" - 26"@20mil
  • 0.5" - 9"@7.5mil
  • 3" - 45"@55mil
  • 1" - 5"@6.6mil - PDF417
  • 2" - 15"@15mil - PDF417
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Height:
6.3"
Width:
2.8"
Depth:
5"
Weight (Approximate):
6 oz
Miscellaneous
Package Contents:
  • LS4005i Bar Code Reader
  • IBM 468X/9X (Port 9b) 9ft Coiled cable (25-16460-20)
  • Product Reference Guide (70-37898-03 )
Additional Information:

Supported Interface:

  • IBM 468X/469X

USB Cable separate

Certifications & Standards:

Electrical Safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

Laser Safety:

  • CDRH Class II
  • IEC Class 2

EMI/RFI:

  • FCC Part 15 Class A
  • ICES-003 Class A
  • European Union EMC Directive
  • Australian SMA
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol LS4005I-I100-0200Z Barcode Scanner is also known as SYM-LS4005I0200Z
