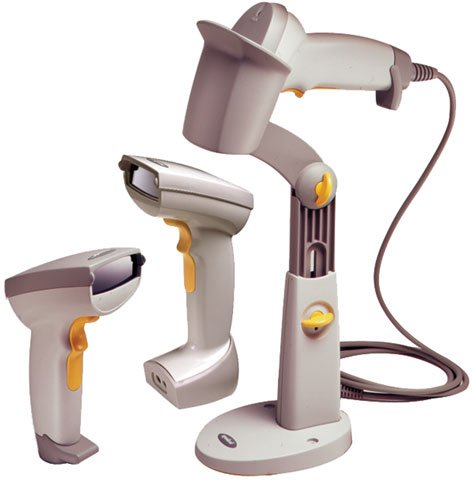

Symbol LS4004I-I100-7700Z Barcode Scanner

The Symbol LS4004I-I100-7700Z Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Symbol LS4004 i - 1D/PDF, 9-Foot Coiled Synapse Adapter Cable-25-16458-20 and Product Reference Guide-25-16458-20.
  • Perfect for applications that require direct association with a workstation or a notebook
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Read More
Discontinued Need Assistance?
Add to Quote
Symbol LS4004 i Barcode Scanner Model Overview
The LS4004 i Series is the result of Symbol's experience in the design of innovative, high-performance scanning solutions. The LS4004 i incorporates a 650 nm laser that provides a bright scan line ensuring easy aiming even in high ambient light conditions. Combine this with a robust working range of contact out to more than 16 in. (40 cm) on 100% UPC codes and barcode data capture is a snap. Plus built-in Adaptive Logic Signal Processing decodes poorly printed and damaged barcodes. System integration is facilitated with Advanced Data Formatting (ADF), a Symbol innovation that enables the barcode data string to be modified before sending it on to the host computer. This enhances compatibility between barcoded data and the applications software by allowing the scanner to be programmed rather than modifying the host application which could be costly. All units ship with one product reference guide. All units feature Symbol's 5 year warranty.
Symbol LS4004I-I100-7700Z Barcode Scanner Overview

The LS 4004i incorporates a 650 nm laser that provides a bright scan line ensuring easy aiming even in high ambient light conditions. Combine this with a robust working range of contact out to more than 16 in. (40 cm) on 100% UPC codes and bar code data capture is a snap. Plus built-in Adaptive Logic Signal Processing decodes poorly printed and damaged bar codes.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN
  • Code 39
  • Code 39 Full ASCII
  • Trioptic Code 39
  • Code 93
  • Codabar
  • Interleaved 2 of 5
  • Code 128
  • Discrete 2 of 5
  • UCC/EAN 128
  • MSI/PLESSEY
  • Bookland EAN
  • PDF 417
  • UPC/EAN Supplementals
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1" - 4.75"@5mil
  • 0" - 16"@100% UPC/EAN
  • 1" - 26"@20mil
  • 0.5" - 9"@7.5mil
  • 3" - 45"@55mil
  • 1" - 5"@6.6mil - PDF417
  • 2" - 15"@15mil - PDF417
Interfaces/Ports
Host Interface:
Serial
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Height:
6.3"
Width:
5"
Depth:
2.8"
Weight (Approximate):
6 oz
Miscellaneous
Package Contents:
  • Symbol LS 4004i Bar Code Reader
  • Synapse Cable Assy (25-16458-20)
  • Product Reference Guide (70-37898-03)
Additional Information:
  • Roll (Skew): +/- 25°
  • Pitch: +/- 55°
  • Yaw: +/- 55°

USB Cable separate

Platform Supported:
PC
Certifications & Standards:

Electrical Safety:

  • Certified to UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

Laser Safety:

  • CDRH Class II
  • IEC Class 2

EMI/RFI:

  • FCC Part 15 Class A
  • ICES-003 Class A
  • European Union EMC Directive
  • Australian SMA
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol LS4004I-I100-7700Z Barcode Scanner is also known as SYM-LS4004I7700Z or LS4004II1007700Z.
