Symbol LS4004-I049 Barcode Scanner

The Symbol LS4004-I049 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Symbol LS4004 i - ISBT 128 Symbology - Scanner Only.
  • Minimizes your manual entry and provides reliable scanning in a durable form factor
  • Perfect for applications that require direct association with a workstation or a notebook
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • Laser scan engine guarantees rapid error free data entry
Read More
Discontinued Need Assistance?
Add to Quote

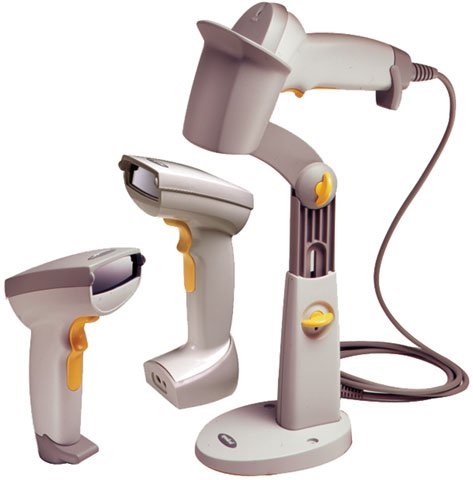

Symbol LS4004 i Barcode Scanner Model Overview
The LS4004 i Series is the result of Symbol's experience in the design of innovative, high-performance scanning solutions. The LS4004 i incorporates a 650 nm laser that provides a bright scan line ensuring easy aiming even in high ambient light conditions. Combine this with a robust working range of contact out to more than 16 in. (40 cm) on 100% UPC codes and barcode data capture is a snap. Plus built-in Adaptive Logic Signal Processing decodes poorly printed and damaged barcodes. System integration is facilitated with Advanced Data Formatting (ADF), a Symbol innovation that enables the barcode data string to be modified before sending it on to the host computer. This enhances compatibility between barcoded data and the applications software by allowing the scanner to be programmed rather than modifying the host application which could be costly. All units ship with one product reference guide. All units feature Symbol's 5 year warranty.
Symbol LS4004-I049 Barcode Scanner Overview

The LS 4004i incorporates a 650 nm laser that provides a bright scan line ensuring easy aiming even in high ambient light conditions. Combine this with a robust working range of contact out to more than 16 in. (40 cm) on 100% UPC codes and bar code data capture is a snap. Plus built-in Adaptive Logic Signal Processing decodes poorly printed and damaged bar codes.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN
  • Code 39
  • Code 39 Full ASCII
  • Trioptic Code 39
  • Code 93
  • Codabar
  • Interleaved 2 of 5
  • Code 128
  • UCC/EAN 128
  • Discrete 2 of 5
  • MSI/PLESSEY
  • Bookland EAN
  • PDF 417
  • UPC/EAN Supplementals
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1" - 4.75"@5mil
  • 0" - 16"@100% UPC/EAN
  • 1" - 26"@20mil
  • 3" - 45"@55mil
Interfaces/Ports
Host Interface:
Serial
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Height:
6.3"
Width:
5"
Depth:
2.8"
Weight (Approximate):
6 oz
Miscellaneous
Additional Information:

USB Cable separate

Certifications & Standards:

Electrical Safety:

  • Certified to UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

Laser Safety:

  • CDRH Class II
  • IEC Class 2

EMI/RFI:

  • FCC Part 15 Class A
  • ICES-003 Class A
  • European Union EMC Directive
  • Australian SMA
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol LS4004-I049 Barcode Scanner is also known as SYM-LS4004I049A or LS4004I049.
