Motorola LS2208-SR20401R Barcode Scanners


0.0

(No reviews)

Be the first to

Write a Review
Symbol LS2208 - SCANNER ONLY, 1D Laser, Scottish Blood Service - ISBT-128 decoding. Color: White. Purchased interface cables separately. See accessories.
High performance 1D linear scanner increases productivity, resulting in shorter check-out lines and better customer service.

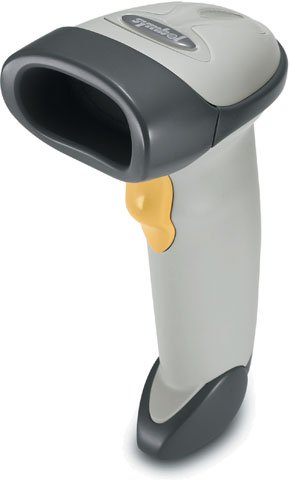

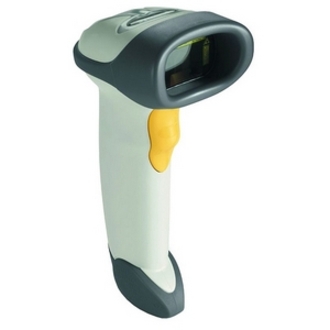

The Symbol LS2208 handheld barcode scanner offers high performance scanning at a moderate price point. From the retail point-of-sale and backroom to the patient bedside or school book checkout, the LS2208 provides fast, reliable scanning in a durable, lightweight form factor, delivering enhanced productivity and efficiency while reducing your total cost of ownership (TCO). With aggressive scanning capabilities and a wide working range, the LS2208 accurately captures data fast, helping employees work quickly and efficiently. And you'll be up and running fast, because the Symbol LS2208 is easy to deploy and use, thanks to a plug-and-play installation and intuitive, user-friendly design that requires little or no training. Plus the ergonomic, balanced form factor reduces user fatigue to maximize user comfort. All scanners read RSS codes & feature a 5 year warranty for NEW scanners only.

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Bi-directional
  • Scan Rate: 100 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • IATA
    • RSS Variants
    • Chinese 2 of 5
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • IATA
    • RSS Variants
    • Chinese 2 of 5
  • Depth of Field: 17"@ - 100% UPC/EAN

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS2208
  • Product Name: Symbol LS2208 Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 6"
  • Width: 2.5"
  • Depth: 3.3"
  • Weight (Approximate): 5.15 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • Electrical Safety:
    • Certified to UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • Taiwan EMC
    • Japan VCCI/MITI/Dentori
    • Laser Safety:
    • CDRH Class II
    • IEC Class 2
    • Environmental:
    • Compliant with RoHS directive 2002/95/EEC
  • Additional Information:
    • Supported Interfaces:
    • USB
    • Keyboard Wedge
    • Synapse
    • IBM 468X/469X
    • Serial

Warranty

  • Limited Warranty: 5 Year

Full specifications (PDF)
