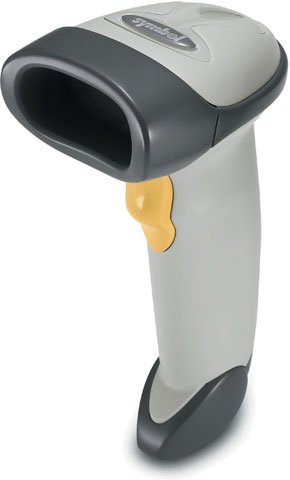

Symbol LS2208-SR20261R Barcode Scanner

The Symbol LS2208-SR20261R Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Symbol LS2208 - SCANNER ONLY, 1D Laser, Class II. Color: White. Custom Configuration for Pyxis/Cardinal Health. Cables and accessories must be purchased separately. See accessories.
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Scan barcodes with a staggering speed of 100 scan/s
Read More
Discontinued Need Assistance?
Add to Quote

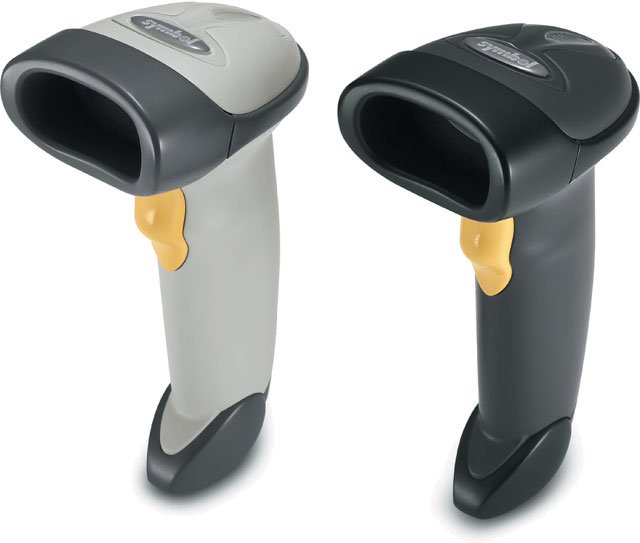

Symbol LS2208 Barcode Scanner Model Overview
With over eight million sold, the LS2208 remains Zebra's best selling handheld laser scanner. The LS2208 has it all ? enterprise class scanning in a very ergonomic and durable lightweight design that delivers all day comfort, an extra-long read range for easy scanning, plus support for everyday 1D bar codes, including high-density. With multiple interfaces, a universal cable and support for keyboards in 97 languages, the LS2208 delivers plug-and-play simplicity in virtually every corner of the world. The LS2208 ? the well-proven scanner powering the checkout lines all around the world.
Symbol LS2208-SR20261R Barcode Scanner Overview

This high-performance, affordable handheld scanner will help you increase productivity at the retail point of sale and in the stockroom, manage medications and control inventory, or help you track assets and inventory without breaking the bank. It offers an impressive range of contact along with a high-speed scan rate, having lightweight, ergonomic design. Even Multiple on-board interfaces are present that allow user with different host systems.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN with Supplementals
  • UCC/EAN 128
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • IATA
  • RSS Variants
  • Chinese 2 of 5
Light Source:
Laser
Image Sensor Type:
Linear
Scan Rate:
100 scan/s
Scan Pattern:
Bi-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
White
Height:
6"
Width:
2.5"
Depth:
3.3"
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • IBM 468X/469X
  • USB
  • Platform Supported:
    PC
    Certifications & Standards:

    Electrical Safety:

    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950

    EMI/RFI:

    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • Taiwan EMC
    • Japan VCCI/MITI/Dentori

    Laser Safety:

    • CDRH Class II
    • IEC Class 2

    Environmental:

    • RoHS directive 2002/95/EEC
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    GTIN: 0777786323998
    UPC: 777786323998
    EAN: 0777786323998
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Symbol LS2208-SR20261R Barcode Scanner is also known as SYM-LS2208SR20261R or LS2208SR20261R.
