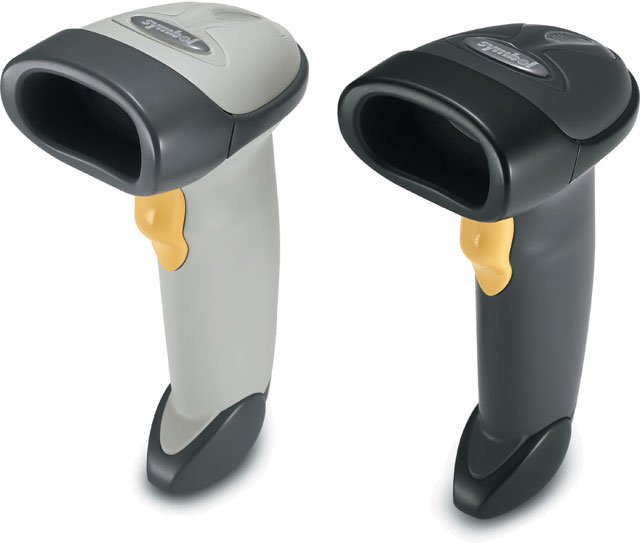

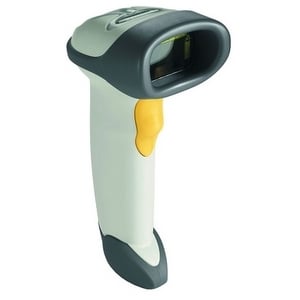

Motorola LS2208-1AZU0100S Barcode Scanner

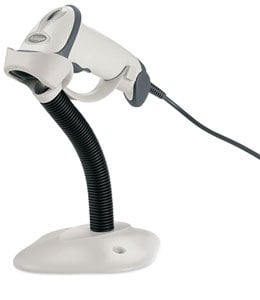

Symbol LS2208 - USB kit, White. Includes USB cable, gooseneck stand, & product reference guide.
High performance 1D linear scanner increases productivity, resulting in shorter check-out lines and better customer service.

The Symbol LS2208 handheld barcode scanner offers high performance scanning at a moderate price point. From the retail point-of-sale and backroom to the patient bedside or school book checkout, the LS2208 provides fast, reliable scanning in a durable, lightweight form factor, delivering enhanced productivity and efficiency while reducing your total cost of ownership (TCO). With aggressive scanning capabilities and a wide working range, the LS2208 accurately captures data fast, helping employees work quickly and efficiently. And you'll be up and running fast, because the Symbol LS2208 is easy to deploy and use, thanks to a plug-and-play installation and intuitive, user-friendly design that requires little or no training. Plus the ergonomic, balanced form factor reduces user fatigue to maximize user comfort. All scanners read RSS codes & feature a 5 year warranty for NEW scanners only.

Technical Information

  • Scan Pattern: Bi-directional
  • Scan Rate: 100 scan/s
  • Connectivity Technology: Cable
  • Scanning Distance: 17"
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • Code 11
    • Code 11
    • IATA
    • RSS Variants
    • China Post 2 of 5
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • Code 11
    • Code 11
    • IATA
    • RSS Variants
    • China Post 2 of 5
  • Depth of Field:
    • 2.50" - 6"@5 mil
    • 1.50" - 10"@7.50 mil
    • 1" - 14.50"@10 mil
    • 0 mil - 17"@ - 100% UPC
    • 0 mil - 23"@20 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS2208
  • Product Name: Symbol LS2208 Barcode Reader
  • Product Line: Symbol
  • Package Type: Retail

Physical Characteristics

  • Height: 6"
  • Width: 2.5"
  • Depth: 3.3"
  • Color: White
  • Weight (Approximate): 5.15 oz

Interfaces/Ports

  • Host Interface:
    • Serial
    • Keyboard Wedge
    • USB
    • Multi-interface

Other

  • Package Contents:
    • Symbol LS2208 Barcode Reader
    • Intellistand (20-61019-01 or 02)
    • USB Series A Connector, 6ft Straight Cable (25-53492-22)
    • CD ROM (SW-61077-02)
    • Symbol LS2208 Barcode Reader
    • Intellistand (20-61019-01 or 02)
    • USB Series A Connector, 6ft Straight Cable (25-53492-22)
    • CD ROM (SW-61077-02)
  • Certifications & Standards:
    • Electrical Safety:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • Taiwan EMC
    • Japan VCCI/MITI/Dentori
    • Laser Safety:
    • CDRH Class II
    • IEC Class 2
  • Additional Information:
    • Supported Interfaces:
    • SerialKeyboard WedgeIBM 468X/469XWand EmulationUSB

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC

Full specifications (PDF)
