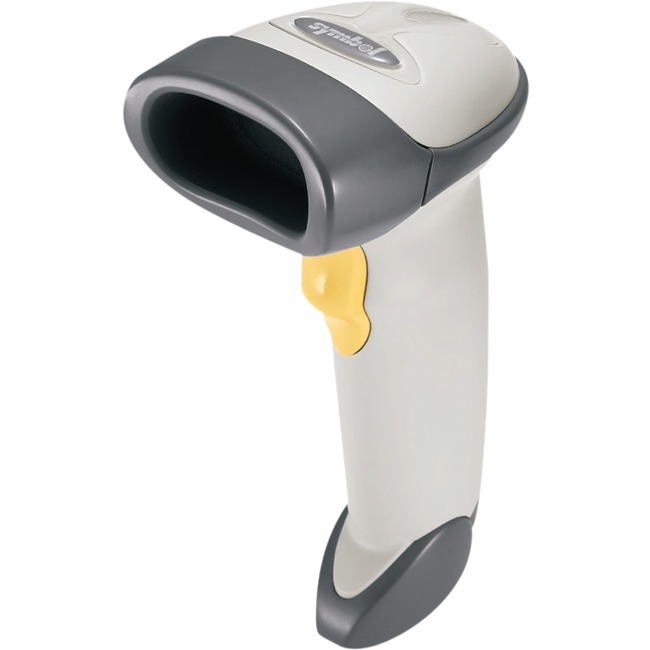

Symbol LS2208-1AZR0100ER Barcode Scanner

The Symbol LS2208-1AZR0100ER Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

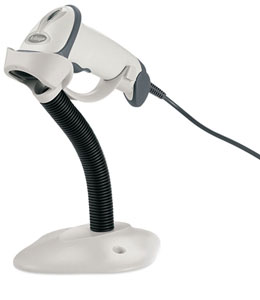

Symbol LS2208 - RS-232 kit, White. Includes 9ft RS-232 cable, 220V, Intellistand. RoHS Compliant.
  • Speed up customer's checkout experience
  • Perfect for applications that require direct association with a workstation or a notebook
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Scan barcodes with a staggering speed of 100 scan/s
Read More
Discontinued Need Assistance?
Add to Quote
Symbol LS2208 Barcode Scanner Model Overview
With over eight million sold, the LS2208 remains Zebra's best selling handheld laser scanner. The LS2208 has it all ? enterprise class scanning in a very ergonomic and durable lightweight design that delivers all day comfort, an extra-long read range for easy scanning, plus support for everyday 1D bar codes, including high-density. With multiple interfaces, a universal cable and support for keyboards in 97 languages, the LS2208 delivers plug-and-play simplicity in virtually every corner of the world. The LS2208 ? the well-proven scanner powering the checkout lines all around the world.
Symbol LS2208-1AZR0100ER Barcode Scanner Overview

The LS2208 handheld scanner from Symbol Technologies offers high performance scanning at a moderate price point. From the retail point-of-sale and back-room to the patient bedside or school book checkout, the LS2208 provides fast, reliable scanning in a durable, lightweight form factor, delivering enhanced productivity and efficiency while reducing your total cost of ownership (TCO).

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN Supplementals
  • UCC/EAN 128
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • IATA
  • RSS Variants
  • Chinese 2 of 5
Light Source:
Laser
Image Sensor Type:
Linear
Scan Rate:
100 scan/s
Scan Pattern:
Bi-directional
Stand Included:
Yes
Interfaces/Ports
Host Interface:
Serial
Power Description
Input Voltage:
5 V DC
Power Supply Included:
Yes
Physical Characteristics
Color:
White
Height:
6"
Width:
2.5"
Depth:
3.3"
Miscellaneous
Package Contents:
  • Symbol LS2208 Bar Code Reader
  • RS-232 Assembly Cable
  • Documentation CD
  • 220 VAC Power Supply
  • Gooseneck Stand
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • Wand Emulation
  • IBM 468X/469X
  • USB
  • Synapse
  • Certifications & Standards:
    • Environmental: RoHS 2002/95/EEC

    Electrical Safety:

    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950

    EMI/RFI:

    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • Taiwan EMC
    • Japan VCCI/MITI/Dentori

    Laser Safety::

    • CDRH Class II
    • IEC Class 2
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Symbol LS2208-1AZR0100ER Barcode Scanner is also known as SYM-LS22081AZR0100ER or LS22081AZR0100ER.
