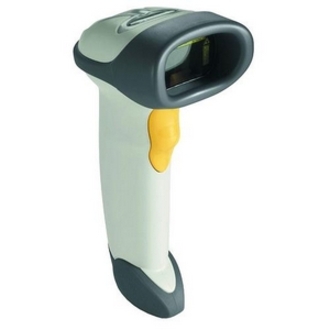

Symbol LS2208-1AZK0100S Barcode Scanner

Zebra LS2208-SR20001R-KR Barcode Scanner A newer version of this item is available.
It is replaced by the Zebra LS2208-SR20001R-KR Barcode Scanner.
Symbol LS2208 - keyboard wedge kit. Includes PS/2 'Y' cable, gooseneck stand, & product reference guide. Color: white. Eligible for Advanced Exchange Program.
  • Speed up customer's checkout experience
  • Perfect for applications that require direct association with a workstation or a notebook
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Scan barcodes with a staggering speed of 100 scan/s
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Symbol LS2208 Barcode Scanner Model Overview
With over eight million sold, the LS2208 remains Zebra's best selling handheld laser scanner. The LS2208 has it all ? enterprise class scanning in a very ergonomic and durable lightweight design that delivers all day comfort, an extra-long read range for easy scanning, plus support for everyday 1D bar codes, including high-density. With multiple interfaces, a universal cable and support for keyboards in 97 languages, the LS2208 delivers plug-and-play simplicity in virtually every corner of the world. The LS2208 ? the well-proven scanner powering the checkout lines all around the world.
Symbol LS2208-1AZK0100S Barcode Scanner Overview

The innovative LS 2208 hand-held Bar Code Reader from Symbol Technologies delivers performance features at an affordable price to make your buying decision easier than ever. If you're seeking investment protection and great value in a small, light scanner that assures maximum productivity, then the LS 2208 is the ideal scanner for you. From the checkout line to the back room, the LS 2208 helps you make the most of your application-specific solution in a variety of ways.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN Supplementals
  • Code 39
  • Code 39 Full ASCII
  • Trioptic Code 39
  • Code 128
  • Code 128 Full ASCII
  • Codabar
  • Code 93
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • MSI
  • Code 11
  • IATA
  • IATA
  • RSS Variants
  • China Post 2 of 5
Light Source:
Laser
Scan Rate:
100 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 23"@20mil
  • 2.5" - 6"@5mil
  • 1.5" - 10"@7.5mil
  • 1" - 14.5"@10mil
  • 0" - 17"@100% UPC
Scan Pattern:
Bi-directional
Scanning Distance:
17"
Stand Included:
Yes
Interfaces/Ports
Host Interface:
  • Serial
  • Keyboard Wedge
  • USB
  • Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
White
Height:
6"
Width:
2.5"
Depth:
3.3"
Weight (Approximate):
5.15 oz
Miscellaneous
Package Contents:
  • Symbol LS2208 Bar Code Reader
  • Intellistand (20-61019-01)
  • PS/2 6ft Straight Cable (25-62417-20)
  • CD ROM (SW-61077-02)
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • Wand Emulation
  • IBM 468X/469X
  • USB
  • Certifications & Standards:

    Electrical Safety:

    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950

    EMI/RFI:

    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • Taiwan EMC
    • Japan VCCI/MITI/Dentori

    Laser Safety:

    • CDRH Class II
    • IEC Class 2
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Symbol LS2208-1AZK0100S Barcode Scanner is also known as SYM-LS2208AZK or LS22081AZK0100S.
