Socket Mobile MS5105-1108 Check Reader

Part Number: MS5105-1108

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Magnetic Stripe Track Configuration
Single Track
Magnetic Stripe Track Number
Track 1Track 2Track 3
Minimum Swipe Speed
3 in/s
Maximum Swipe Speed
50 in/s

Product Description:

  Socket SoMo 655 Mag Stripe Reader Plug-In 4E, Type II - Single Track - 50in/s

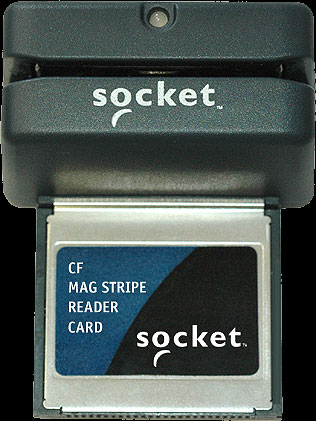

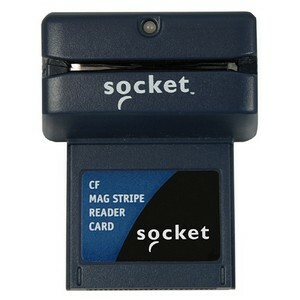

Socket Mobile CF Mag Stripe Reader 4E Accessory Model Overview

The Socket CF Mag Stripe Reader 4E reads data from one, two, or three track magnetic stripes on ID cards, driver's licenses or credit cards. It plugs into the CompactFlash card slot of your Pocket PC, laptop, or tablet PC. CF Mag Stripe Reader 4E can be used in conjunction with a cellular or Wi-Fi network to perform credit card authorizations on the go, turning your mobile device into a POS terminal. SocketScan software enters data directly into any Windows application as if it were manually typed, and requires no custom programming. The SocketScan SDK can be used for creating more complex applications using parsed or encrypted data.
Socket Mobile MS5105-1108 Check Reader Overview
Turn Your SoMo into a Mobile Point of Sale (POS) Terminal

Increase worker productivity, improve customer satisfaction, and minimize wait time in the checkout line with a portable, easy-to-use POS system
Technical Information
Magnetic Stripe Track Configuration:
Single Track
Magnetic Stripe Track Number:
  • Track 1
  • Track 2
  • Track 3
Minimum Swipe Speed:
3 in/s
Maximum Swipe Speed:
50 in/s
Physical Characteristics
Height:
1.3"
Width:
2.2"
Length:
2.7"
Weight (Approximate):
1.52 oz
Miscellaneous
Package Contents:
  • Socket CF Mag Stripe Reader Card with Flexible Rubber Collar
  • Restraining Bracket
  • Software and Documentation
Additional Information:
  • Interface Standards: CompactFlash Type II

Operating System Support:

  • Windows Mobile 2003 for Pocket PC
  • Windows Mobile2003SE for Pocket PC
  • Windows Mobile 5.0 for Pocket PC
  • Windows Mobile 6.0/6.1 Classic (PDA)
  • Windows XP Professional/Tablet PC (SP1, SP2, SP3)
  • Windows Vista Business/Ultimate (SP1)
Certifications & Standards:
  • FCC: Part 15 Class B
  • CE: EN55024:1998
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0758497051059
UPC: 758497051059
EAN: 0758497051059
UNSPSC: 43211702
Questions? Get help from
a POS Expert!

What is your POS application?

The Socket Mobile MS5105-1108 Check Reader is also known as SOC-MS51051108 or MS51051108.
