Socket Mobile IS5308-1197 Barcode Scanner

The Socket Mobile IS5308-1197 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Socket Mobile SD Scan Card 3P - Socket SDSC 3E2 Modular Bar Code Reader - DISCONTINUED - Plug-in Card Connectivity - 100 scan/s - 10.50" Scan Distance - 1D - Laser - Bi-directional - SDIO
  • Features Plug-in Card connectivity
  • Powerful laser scan source provides 100 scan/s decode rate
  • Scan barcodes with a staggering speed of 100 scan/s
Read More
Discontinued Need Assistance?
Add to Quote
Socket Mobile SD Scan Card 3P Accessory Model Overview

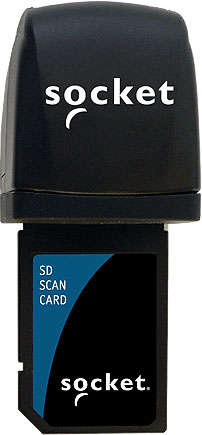

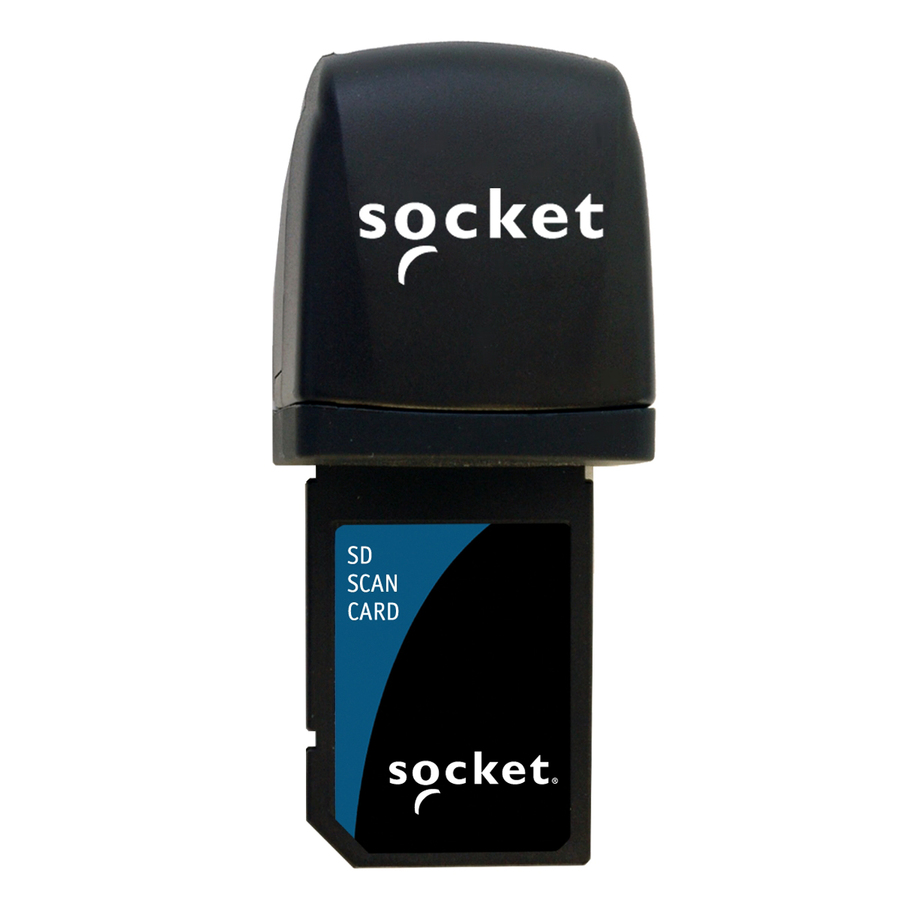

Socket's SD Scan Card 3P is a miniature barcode scanner integrated with an SDIO plug-in card. It is only 32mm long weighs only 8 grams. SD Scan Card 3P turns your Palm PDA or Pocket PC into a high-performance mobile barcode scanner. SD Scan Card 3P features a powerful Symbol SE-955 Class-2 laser scan engine, ideal for large volume, long distance and high speed scanning. SD Scan Card 3P can even read VIN barcodes through windshields in bright sun. It automatically decodes most popular barcode symbologies, including UPC, EAN, Code 39, Code 128, Interleaved 2 of 5, Code 93 and more. It is also designed with battery-friendly technology for hours of operation without having to replace or recharge PDA batteries.
Socket Mobile IS5308-1197 Barcode Scanner Overview

SDIO Scan Card 3E2, Class 1 Laser

The Secure Digital Scan Card (SDSC) 3E2 offers a convenient solution for the mobile professional to input bar code data into mobile computers quickly, easily and accurately.

Socket SDSC 3E2 is equipped with a powerful Class 1 laser bar code scanning engine, and is able to handle large volume and high speed scanning. Its state-of-the-art laser technology enables the reading of damaged, poor quality and hard to read bar codes, even on curved and reflective surfaces and in dim environments.

Technical Information
Connectivity Technology:
Plug-in Card
Scanning Capability:
1D
Barcode Symbology Supported:
  • Chinese 2 of 5
  • Codabar
  • Code 11
  • Code 128
  • Code 39
  • Code 93
  • D 2 of 5
  • GS1-128 (UCC-128/EAN-128)
  • GS1 DataBar (RSS)
  • I 2 of 5
  • MSI
  • UPC/EAN
Light Source:
Laser
Scan Rate:
100 scan/s
Scan Pattern:
Bi-directional
Scanning Distance:
10.50"
Interfaces/Ports
Host Interface:
SDIO
Power Description
Input Voltage:
3.3 V DC
Physical Characteristics
Weight (Approximate):
0.60 oz
Miscellaneous
Package Contents:
  • Secure Digital Scan Card
  • CD with Software and User Documentation
Additional Information:

USB Cable separate

Platform Supported:
  • Smartphone
  • PC
Certifications & Standards:
EMI/RFI FCC:
  • Part 15, Class B
  • CISPR 22
  • ICES-003 Class B
  • CE: EN55024:2003
  • Japan VCCI Class B
  • AS 3548
  • C-TICK: s.182
Laser Safety:
  • 21 CFR 1040.10
  • 21 CFR 1040.11
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0758497053084
UPC: 758497053084
EAN: 0758497053084
UNSPSC: 43211701
Questions? Get Help from
a Mobile Expert!

What is your operating system?

The Socket Mobile IS5308-1197 Barcode Scanner is also known as SOC-IS5308-1197 or IS53081197.
