Socket Mobile IS5302-466 Spare Parts

The Socket Mobile IS5302-466 Spare Parts has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Socket Mobile SD Scan Card 3E - Socket Communications In-Hand Scan Card SDIO Slot Modular Bar Code Reader - DISCONTINUED - Docking - CMOS
Discontinued Need Assistance?
Add to Quote

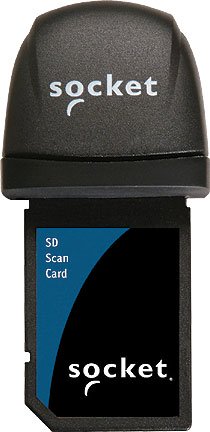

Socket Mobile SD Scan Card 3E Accessory Model Overview
Socket's SD Scan Card 3E is a miniature barcode scanner integrated with an SDIO plug-in card. It is only 32mm long and weighs only 8 grams. SD Scan Card 3E turns your Palm PDA and Pocket PC into a high-performance mobile barcode scanner. SD Scan Card 3E features a state-of-the-art Linear CMOS Imaging technology in the smallest barcode scan engine available today. It can automatically decode most popular barcode symbologies, such as UPC, EAN, Code 39, Code 128, Interleaved 2 of 5, Code 93 and more. It is also designed with battery-friendly technology for hours of operation without recharging.
Socket Mobile IS5302-466 Spare Parts Overview

Turn Your Palm PDA or Pocket PC 2003 into a High Performance Mobile Bar Code Scanner If you're a mobile professional using a Palm PDA or Pocket PC 2003 with an SDIO slot for an application requiring extensive data entry, Socket's SDIO In-Hand Scan Card may provide an incredible increase in productivity. Using manual or virtual keyboards is the slowest, most error-prone method of entering data into mobile computers. If the data to be entered is bar coded, using a bar code scanner is 50 times faster and 10,000 times more accurate than manual data entry.

Technical Information
Connectivity Technology:
Plug-in Card
Barcode Symbology Supported:
  • UPC/EAN
  • Code 128
  • Code 39
  • I 2of5
  • D 2of5
  • Code 93
  • Codabar
  • MSI/Plessey
  • Code 11
  • Web Code
Image Sensor Type:
CMOS
Scanning Distance:
24"
Interfaces/Ports
Host Interface:
SDIO
Power Description
Input Voltage:
3.3 V DC
Physical Characteristics
Height:
1.1"
Width:
1.2"
Depth:
0.6"
Weight (Approximate):
0.28 oz
Miscellaneous
Package Contents:
  • Secure Digital Scan Card 3E
  • SocketScan Software
  • Installation Utility
Additional Information:
  • SocketScan SDK for Palm OS or Windows available for developers

USB Cable separate

Platform Supported:
  • PC
  • Smartphone
Certifications & Standards:
  • FCC: Part 15, Class B
  • CE: EN55024:1998
  • CE C-TICK s.182
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0758497053022
UPC: 758497053022
EAN: 0758497053022
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Socket Mobile IS5302-466 Spare Parts is also known as IS5302466
