Socket Mobile CM7100-510 Mobile Handheld Computer

Overview

Full specifications (PDF)

Socket Mobile Cordless 56K Modem V.92 Wireless Router Model Overview

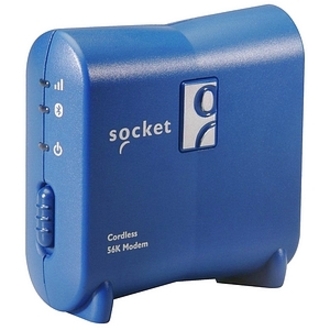

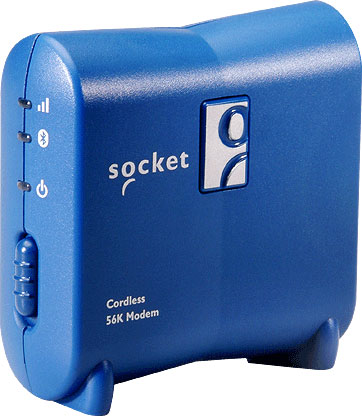

Cordless 56K Modem V.92 from Socket is a cordless 56K V.92 modem card with Bluetooth wireless technology, which provides a reliable and convenient way to access the Internet from your Pocket PC, Windows notebook or tablet computer. It gives you 100m wireless freedom of high-speed Internet access, email and faxing from any analog phone line. It works with almost any Bluetooth enabled computer that supports a Dial-up Networking client without any special drivers or software installation. Cordless 56K Modem V.92 features V.90 and V.92 advanced modem technologies for faster data and quicker connections.

Socket Mobile CM7100-510 Spare Parts Overview

Why sit confined at a desk when you can check email and surf the Internet while lounging in bed? Socket's Cordless 56K Modem lets you comfortably access the Internet from your Pocket PC, Palm PDA, notebook or tablet computer without any cables tying you down. Plus, the modem features V.90 and V.92 advanced modem technologies for faster data and quicker connections.

Detailed Specs

Full specifications (PDF)

Technical Information

Fax Technology:

Class 1

Modulation:

ITU-T V.92
ITU-T V.90
ITU-T V.34
ITU-T V.32bis
ITU-T V.32
ITU-T V.23
ITU-T V.22bis
ITU-T V.21
Bell 212A
Bell 103
ITU-T V.29
ITU-T V.27ter

Features:

Modem-on-hold

Interfaces/Ports

Number of Phone Line (RJ-11) Ports:

Media & Performance

Fax Transmission Data Rate:

33.6 kbit/s

Modem Transmission Data Rate:

56 kbit/s

Physical Characteristics

Form Factor:

Desktop

Height:

2.9"

Width:

1.1"

Depth:

3.1"

Weight (Approximate):

3.20 oz

Miscellaneous

Package Contents:

Socket Cordlesss 56K Modem
AC charger with plugs for U.S
Retractable RJ-11 cable
Installation CD with optional software and user documentation
Rechargeable lithium-ion battery
Nylon travel pouch

Additional Information:

Bluetooth Characteristics

Profiles: Dial-up Networking, Serial Port, Fax, Service Discovery, General Access
Protocol: Bluetooth 2.45 GHz ISM band frequency hopping
Antenna: Integrated
Radio Range: Maximum 328 ft (100 m), depending on environment
Connection: Point-to-point
Main Chip: CSR BlueCore 2
Security: Encrypted link
RF Power Output: 100 Milliwatt (Class 1)

Compatibility:

Any Bluetooth enabled computer with support for a Dial-up Networking client, including:

Pocket PCs and Palm PDAs
Windows and Mac OS notebooks
Windows XP tablet computers

Certifications & Standards:

FCC Parts 15, 68
Safety: ETL + ETLc
Industry Canada: CE, CTR21, ETS
TELEC and JATE: Bluetooth 1.1
RoHS

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0758497071002, 0818285168960

UPC: 758497071002, 818285168960

EAN: 0758497071002, 0818285168960

UNSPSC: 43222628
