SATO CL6NX Plus – Barcode Label Printer – 305 dpi – Thermal Transfer

Part Number: WWCLPB001-WAN
Model: CL6NX Plus
3-year Premium Plus ($704.20)
3-year Premium ($550.20)
No Support
Add to My Shopping List Add to Compare
$3,986.25
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Bluetooth, Ethernet, Parallel, USB, Serial
Print Resolution
305 dpi

Product Description:

  Industrial Label Printer, SATO CL6NX Plus, Thermal Transfer, 305 dpi, 8 ips, 6.6" Max Print Width, 3" Core, 10" Outer Diameter, USB/Ethernet/Bluetooth/Serial/Parallel/NFC/EXT (External Signal Interface)/Wi-Fi. Base Model
Explore all SATO CL6NX Plus Barcode Label Printers
Add to Quote
SATO WWCLPB001-WAN Barcode Label Printer
SATO WWCLPB001-WAN Barcode Label Printer
SATO WWCLPB001-WAN Barcode Label Printer
SATO WWCLPB001-WAN Barcode Label Printer SATO WWCLPB001-WAN Barcode Label Printer SATO WWCLPB001-WAN Barcode Label Printer
Frequently Purchased Together
Total: $00.00
Full specifications (PDF)

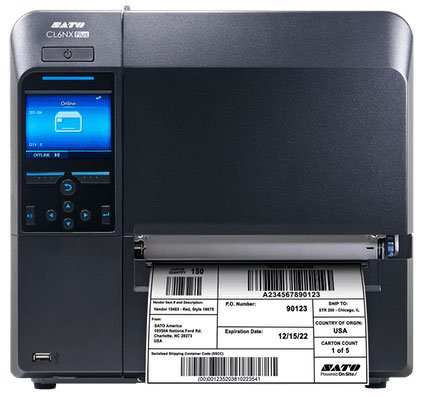

SATO CL6NX Plus Barcode Label Printer Model Overview

The CL6NX Plus printer offers a vast array of standard features that are unequaled by its competition. Printer setups, operation, and maintenance are supremely easy and intuitive.

Key Features
  • Full color interactive LCD with Intuitive Menu Navigation
  • On-board Help Videos
  • Tool-less Maintenance
  • 8.6-inch media supply (Face-in/Face-out wind) and 600m ribbon (CSI/CSO) supported
  • Multiple Interfaces - Auto Switching
  • Auto Switching Emulation Languages (SBPL, SEPL, SZPL, SDPL, SIPL or STCL)
  • Micro Label Print Mode
  • Print speeds up to 10 ips
  • UHF RFID module
  • Smart Print Head and Pure Line Platen Roller

SATO's CL6NX Plus Printer sets a new and innovative industry standard for ease of use, intelligence, on-board industry emulations, connectivity, speed of processing data streams, user activity interface, and so much more.

Ease of Use
Built with integrity, designed with the operator and productivity in mind, CL6NX Plus is the next evolution in this product series and will surpass your expectations of today’s printing technology. With the support of up to 8.6-inch (218mm) OD of media and 1968-foot (600m) ribbon and incorporating Smart Print head technology to keep track of usage specific to the print head installed. The platen roller with the Pure Line indicator provides a visual wear indicator so users can be proactive when it is necessary to change this critical component. Speaking of consumable components, the CL6NX Plus is still one of the easiest industrial tabletop printer models to replace the print head and platen roller with no tools required.

Micro Label Print Mode
The Micro Label Print Mode provides higher print accuracy for small pitch labels and can even dispense labels as small as 10mm. Using SATO Application Enabled Printing (AEP), you can create custom standalone applications that can be run directly on the printer independent of host software and connect peripheral devices directly to the printer such as keyboards, weigh scales, barcode scanner for data input.

RFID
Businesses can save labor, speed up their operations and enjoy many advantages from using the CLNX Plus RFID Series of printers. The CL6NX Plus can print text and barcodes on UHF tags/labels and encode data in their embedded chips at the same time. In addition to being equipped with on-screen menus that save users the trouble of adjusting antenna position manually, the printer is capable of checking RFID chips prior to encoding to verify their readiness to use and prevent failures.
Registering commonly used settings, can save up to 10 write/read tags/labels types. The user can now select and load these store settings to encode multiple media with the same printer. Having compatibility with specialty RFID labels/tags supports the encoding of various RFID labels/tags including tags used with metals.

60° Wide Print Head Opening with Pure Line Platen Roller
Best in class head opening of 60° will allow easier access to load media and perform routine maintenance. This Pure Line wear indicator on the platen roller provides a visual gauge as to when the platen needs to be replaced.

Micro Label Print Mode
Higher tolerance (+/-0.7 mm) for Increased print image accuracy when using small label sizes (<53mm length).

Fast batch printing
Print speeds up to 10 ips.

UHF RFID module
CL6NX Plus can print text and barcodes on UHF tags/labels and encode data in their embedded chips at the same time.

SATO Application Enabled Printing (AEP)
SATO’s Application Enabled Printing (AEP) Platform is a powerful on-board intelligence which enables customization of the printer operation to significantly simplify labeling operations and reduce business costs.

PDF Direct Print
Enable swift, accurate and time-saving label printing from PDFs with SATO's PDF Direct Print.

Industries Served:
Aerospace, Automotive, Education, Food Service, Government, Healthcare, Manufacturing, Retail, Supply Chain, track & trace, Transportation and logistics, Utilities, Wholesale

Full specifications (PDF)
Brand
SATO
Model
CL6NX Plus
Max Print Width
6.5 inch
Printer Type
Industrial
Printing Technology
Thermal Transfer
Print Resolution
305 dpi
Interface Options
Bluetooth, Ethernet, Parallel, USB, Serial

Recommended Accessories

Category

  • Printer Accessories (1)
  • SATO Thermal Printhead (1)

Recommended Accessories for Model: SATO WWCLPB001-WAN Barcode Label Printer

Top Printer Accessories Purchased With SATO WWCLPB001-WAN

  • SATO 3CF-RJP-6NX Accessory
    SATO 3CF-RJP-6NX Accessory
    Printer Spare Parts, SATO, RWG500, Joining Plate for CL6NX Plus
    Ships from vendor — chat for lead time
    Please Call for Pricing or to Purchase

Top SATO Thermal Printhead Purchased With SATO WWCLPB001-WAN

Frequently Asked Questions

The SATO CL6NX Plus offers comprehensive connectivity with USB, Ethernet, Bluetooth, Serial, Parallel, NFC, Wi-Fi, and an External Signal Interface (EXT) port. This multi-protocol design ensures seamless integration with warehouse management systems, mobile devices, and legacy equipment. We offer this model ready to deploy across diverse operational environments.

The CL6NX Plus delivers a maximum print width of 6.6 inches at 305 dpi resolution with print speeds up to 8 inches per second. This combination of speed and precision makes it ideal for high-volume barcode label production in industrial settings. Contact us today to discuss throughput requirements for your operation.

Yes, the CL6NX Plus is a thermal transfer printer, enabling durable barcode labels that resist fading, moisture, and abrasion—essential for warehouse and logistics environments. The printer accommodates 3-inch core rolls with up to 10-inch outer diameter capacity, supporting extended print runs without frequent media changes. We stock compatible ribbon and label media for immediate availability.

The CL6NX Plus features intuitive setup, operation, and maintenance procedures that reduce training time and downtime compared to legacy industrial printers. Its straightforward design minimizes user error and simplifies troubleshooting, allowing warehouse teams to focus on productivity rather than equipment management. Visit barcodesinc.com to review detailed specifications and operational guides.

The CL6NX Plus supports multiple connectivity protocols—including Ethernet, USB, and Serial—enabling direct integration with WMS, ERP, and inventory management platforms. The NFC and External Signal Interface options provide additional flexibility for automated workflows and IoT deployments. Our team can assist with configuration and driver support for your specific system architecture.

The printer accommodates label rolls with a 3-inch core diameter and supports outer diameters up to 10 inches, allowing extended print runs for high-volume operations. The 6.6-inch maximum print width is suitable for standard barcode label formats used in shipping, inventory, and asset tracking applications. Contact us today for compatible media recommendations and bulk ordering options.

The SATO WWCLPB001-WAN Barcode Label Printer is also known as SAT-WWCLPB001WAN or WWCLPB001WAN.
