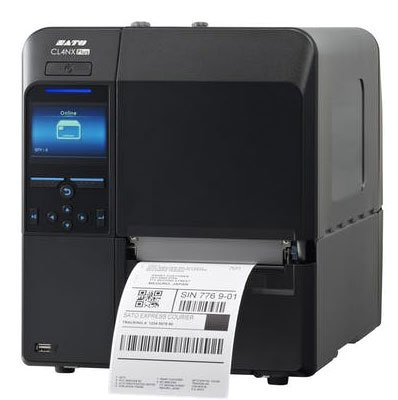

SATO CL4NX Plus – Barcode Label Printer – 609 dpi – Thermal Transfer – Cutter

Part Number: WWCLP3101-WAN
Model: CL4NX Plus
3-year Premium Plus ($654.85)
3-year Premium ($500.85)
No Support
Add to My Shopping List Add to Compare
$4,290.00
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Bluetooth, Ethernet, Parallel, USB, NFC, Serial, EXT
Print Resolution
609 dpi

Product Description:

  Industrial Label Printer, SATO CL4NX Plus, Thermal Transfer, 609 dpi, 6 ips, 4.1" Max Print Width, 3" Core, 10" Outer Diameter, USB/Ethernet/Bluetooth/Serial/Parallel/NFC/EXT (External Signal Interface)/Wi-Fi. Includes: Cutter
Explore all SATO CL4NX Plus Barcode Label Printers
Add to Quote
SATO WWCLP3101-WAN Barcode Label Printer
SATO WWCLP3101-WAN Barcode Label Printer
SATO WWCLP3101-WAN Barcode Label Printer
SATO WWCLP3101-WAN Barcode Label Printer
SATO WWCLP3101-WAN Barcode Label Printer
SATO WWCLP3101-WAN Barcode Label Printer SATO WWCLP3101-WAN Barcode Label Printer SATO WWCLP3101-WAN Barcode Label Printer SATO WWCLP3101-WAN Barcode Label Printer

Frequently Purchased Together
Total: $00.00
Full specifications (PDF)

SATO CL4NX Plus Barcode Label Printer Model Overview

The CL4NX Plus printer offers a vast array of standard features that are unequaled by its competition. Printer setups, operation, and maintenance are supremely easy and intuitive.

Key features:
  • Full color interactive LCD with Intuitive Menu Navigation
  • On-board Help Videos
  • Tool-less Maintenance
  • 10-inch media supply (Face-in/Face-out wind) and 600m ribbon (CSI/CSO) supported
  • Multiple Interfaces - Auto Switching
  • Competitive Emulations On-board - Auto Switching
  • Micro Label Print Mode
  • Print speeds up to 14 ips in either 203 or 305 dpi
  • HF or UHF RFID support
  • Smart Print Head and Pure Line Platen Roller

SATO's CL4NX Plus Printer sets a new and innovative industry standard for ease of use, intelligence, on-board industry emulations, connectivity, speed of processing data streams, user activity interface, and so much more.

Ease of Use
Built with integrity, designed with the operator and productivity in mind, CL4NX Plus is the next evolution in this product series and will surpass your expectations of today’s printing technology. With the support of up to 10-inch (254mm) OD of media and 1968-foot (600m) ribbon and incorporating Smart Print head technology to keep track of usage specific to the print head installed. The platen roller with the Pure Line indicator provides a visual wear indicator so users can be proactive when it is necessary to change this critical component. Speaking of those consumable components, the CL4NX Plus is still one of the easiest industrial tabletop printer models to replace the print head and platen roller with no tools required.

Micro Label Print Mode
The Micro Label Print Mode provides higher print accuracy for small pitch labels and can even dispense labels as small as 10mm. Using SATO Application Enabled Printing (AEP), you can create custom standalone applications that can be run directly on the printer independent of host software and connect peripheral devices directly to the printer such as keyboards, weigh scales, barcode scanner for data input.

RFID
Businesses can save labor, speed up their operations and enjoy many advantages from using the CLNX Plus RFID Series of printers. These RFID Series of printers can print text and barcodes on UHF, HF and NFC tags/labels and encode data in their embedded chips at the same time. In addition to being equipped with on-screen menus that save users the trouble of adjusting antenna position manually, the printer is capable of checking RFID chips prior to encoding to verify their readiness to use and prevent failures. Registering commonly used settings, can save up to 10 write/read tags/labels types. The user can now select and load these store settings to encode multiple media with the same printer. Having compatibility with specialty RFID labels/tags supports the encoding of various RFID labels/tags including tags used with metals.

60° Wide Print Head Opening with Pure Line Platen Roller
Best in class head opening of 60° will allow easier access to load media and perform routine maintenance. This Pure Line wear indicator on the platen roller provides a visual gauge as to when the platen needs to be replaced.

Micro Label Print Mode
Higher tolerance (+/-0.7 mm) for Increased print image accuracy when using small label sizes (<53mm length).

10-inch OD Media Supply and 600m ribbon
More media per roll and longer ribbon lengths means less downtime replenishing supplies.

14 ips print speed at either 203 or 305 dpi!
Up to 14 inches per second for fast batch printing. Best of class print speed at 305 dpi!

HF or UHF RFID modules
SATO RFID Series of printers can print text and barcodes on UHF, HF and NFC tags/labels and encode data in their embedded chips at the same time.

SATO Application Enabled Printing (AEP)
SATO’s Application Enabled Printing (AEP) Platform is a powerful on-board intelligence which enables customization of the printer operation to significantly simplify labeling operations and reduce business costs.

Industries Served:
Aerospace, Automotive, Education, Food Service, Government, Healthcare, Manufacturing, Retail, Supply Chain, track & trace, Transportation and logistics, Utilities, Wholesale

Full specifications (PDF)
Brand
SATO
Model
CL4NX Plus
Printer Options
Cutter
Max Print Width
4 inch
Label Core Size
3 inch
Printer Type
Industrial
Printing Technology
Thermal Transfer
Print Resolution
609 dpi
Interface Options
Bluetooth, Ethernet, Parallel, USB, NFC, Serial, EXT

Recommended Accessories

Category

  • Printer Accessories (7)
  • SATO Thermal Printhead (2)

Recommended Accessories for Model: SATO WWCLP3101-WAN Barcode Label Printer

Top Printer Accessories Purchased With SATO WWCLP3101-WAN

See All Printer Accessories for SATO WWCLP3101-WAN Barcode Label Printer >

Top SATO Thermal Printhead Purchased With SATO WWCLP3101-WAN

Frequently Asked Questions

The SATO CL4NX Plus offers comprehensive connectivity with USB, Ethernet, Bluetooth, Serial, Parallel, NFC, Wi-Fi (802.11b), and External Signal Interface (EXT) ports. This multi-protocol approach ensures seamless integration with your existing warehouse management systems, whether you're running legacy equipment or modern networked infrastructure. We offer this printer with all these connectivity options standard, making it ideal for complex logistics environments.

The SATO CL4NX Plus supports a maximum print width of 4.1 inches and can handle media up to 10 inches in outside diameter with a 3-inch core, plus ribbons up to 1968 feet in length. This substantial capacity reduces changeover frequency in high-volume warehouse operations, improving productivity and reducing downtime. Available from us with these industry-leading specifications.

Yes, the SATO WWCLP3101-WAN comes equipped with an integrated cutter, enabling automatic label separation for streamlined production workflows. This feature eliminates manual cutting steps and improves labeling consistency across your distribution operations. Contact us today for complete details on this included accessory and how it enhances your labeling process.

The SATO CL4NX Plus delivers 6 inches per second (ips) print speed at 609 dots per inch (dpi) resolution, providing fast throughput without compromising label quality. The high resolution ensures crisp barcode readability across all AIDC applications, from warehouse receiving to shipping. We offer this printer as an ideal solution for demanding logistics environments requiring both speed and accuracy.

Micro Label Print Mode is a specialized feature that provides enhanced print accuracy for small pitch labels, enabling the SATO CL4NX Plus to dispense labels as small as 10mm with precision. This capability is essential for pharmaceutical, electronics, and component labeling where space constraints demand accuracy. Available from us for operations requiring high-density labeling on compact products.

The CL4NX Plus incorporates Smart Printhead technology and sets an industry standard with advanced on-board emulations, superior ease of use, and intelligent data stream processing that surpasses previous generations. Its comprehensive connectivity suite and Micro Label Print Mode represent significant innovations in thermal transfer printing. Contact us today to discuss how this next-generation printer can upgrade your labeling infrastructure.

The SATO WWCLP3101-WAN Barcode Label Printer is also known as SAT-WWCLP3101WAN or WWCLP3101WAN.
