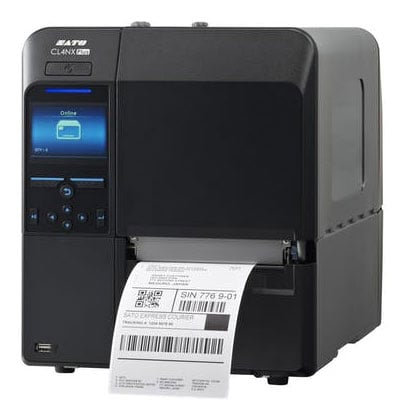

SATO CL4NX Plus Barcode Label Printer Model Overview
The CL4NX Plus printer offers a vast array of standard features that are unequaled by its competition. Printer setups, operation, and maintenance are supremely easy and intuitive.
Key features:
• Full color interactive LCD with Intuitive Menu Navigation
• On-board Help Videos
• Tool-less Maintenance
• 10-inch media supply (Face-in/Face-out wind) and 600m ribbon (CSI/CSO) supported
• Multiple Interfaces - Auto Switching
• Competitive Emulations On-board - Auto Switching
• Micro Label Print Mode
• Print speeds up to 14 ips in either 203 or 305 dpi
• HF or UHF RFID support
• Smart Print Head and Pure Line Platen Roller
SATO's CL4NX Plus Printer sets a new and innovative industry standard for ease of use, intelligence, on-board industry emulations, connectivity, speed of processing data streams, user activity interface, and so much more.
Ease of Use
Built with integrity, designed with the operator and productivity in mind, CL4NX Plus is the next evolution in this product series and will surpass your expectations of today’s printing technology. With the support of up to 10-inch (254mm) OD of media and 1968-foot (600m) ribbon and incorporating Smart Print head technology to keep track of usage specific to the print head installed. The platen roller with the Pure Line indicator provides a visual wear indicator so users can be proactive when it is necessary to change this critical component. Speaking of those consumable components, the CL4NX Plus is still one of the easiest industrial tabletop printer models to replace the print head and platen roller with no tools required.
Micro Label Print Mode
The Micro Label Print Mode provides higher print accuracy for small pitch labels and can even dispense labels as small as 10mm. Using SATO Application Enabled Printing (AEP), you can create custom standalone applications that can be run directly on the printer independent of host software and connect peripheral devices directly to the printer such as keyboards, weigh scales, barcode scanner for data input.
RFID
Businesses can save labor, speed up their operations and enjoy many advantages from using the CLNX Plus RFID Series of printers. These RFID Series of printers can print text and barcodes on UHF, HF and NFC tags/labels and encode data in their embedded chips at the same time. In addition to being equipped with on-screen menus that save users the trouble of adjusting antenna position manually, the printer is capable of checking RFID chips prior to encoding to verify their readiness to use and prevent failures. Registering commonly used settings, can save up to 10 write/read tags/labels types. The user can now select and load these store settings to encode multiple media with the same printer. Having compatibility with specialty RFID labels/tags supports the encoding of various RFID labels/tags including tags used with metals.
60° Wide Print Head Opening with Pure Line Platen Roller
Best in class head opening of 60° will allow easier access to load media and perform routine maintenance. This Pure Line wear indicator on the platen roller provides a visual gauge as to when the platen needs to be replaced.
Micro Label Print Mode
Higher tolerance (+/-0.7 mm) for Increased print image accuracy when using small label sizes (<53mm length).
10-inch OD Media Supply and 600m ribbon
More media per roll and longer ribbon lengths means less downtime replenishing supplies.
14 ips print speed at either 203 or 305 dpi!
Up to 14 inches per second for fast batch printing. Best of class print speed at 305 dpi!
HF or UHF RFID modules
SATO RFID Series of printers can print text and barcodes on UHF, HF and NFC tags/labels and encode data in their embedded chips at the same time.
SATO Application Enabled Printing (AEP)
SATO’s Application Enabled Printing (AEP) Platform is a powerful on-board intelligence which enables customization of the printer operation to significantly simplify labeling operations and reduce business costs.
Industries Served:
Aerospace, Automotive, Education, Food Service, Government, Healthcare, Manufacturing, Retail, Supply Chain, track & trace, Transportation and logistics, Utilities, Wholesale
Brand
SATO
Model
CL4NX Plus
Label Core Size
3 inch
Max Print Width
4 inch
Printer Options
Real-Time Clock, Rotary Cutter
Printer Type
Industrial
Printing Technology
Thermal Transfer
Print Resolution
305 dpi
Interface Options
Bluetooth, Ethernet, USB, Serial
Questions? Get help from a
Printer Expert!
Printer Expert!
The SATO WWCLP2501-NAR Barcode Label Printer is also known as
SAT-WWCLP2501NAR
