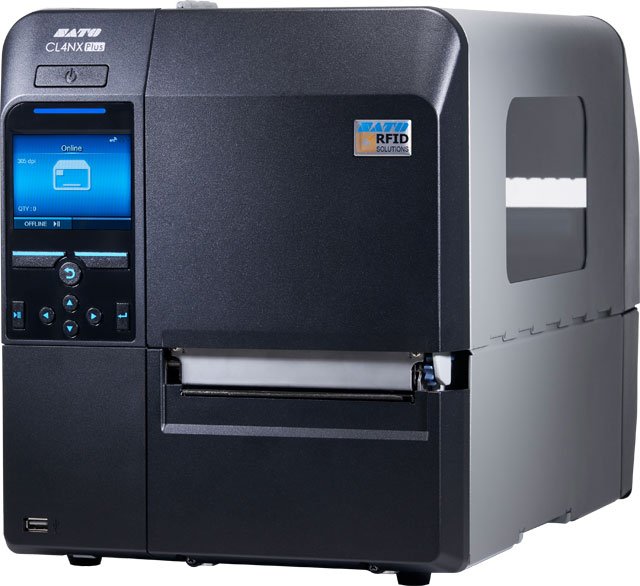

SATO WWCLP1D01-NAR RFID Printer

Part Number: WWCLP1D01-NAR
Model: CL4NX Plus Thermal Printer
3-year Premium Plus ($654.85)
3-year Premium ($500.85)
No Support
Add to My Shopping List Add to Compare
$3,216.75
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial, RFID
Printing Technology
Thermal Transfer
Interface Options
Bluetooth, Ethernet, Parallel, USB, NFC, Serial, EXT
Print Resolution
203 dpi

Product Description:

  Industrial RFID Label Printer, SATO CL4NX Plus, Thermal Transfer, 203 dpi, 14 ips, 4.1" Max Print Width, 3" Core, 10" Outer Diameter, USB/Ethernet/Bluetooth/Serial/Parallel/NFC/EXT (External Signal Interface), HF RFID. Includes: Dispenser & Rewinder, Real-Time Clock
Explore all SATO CL4NX Plus Barcode Label Printers
Add to Quote
SATO WWCLP1D01-NAR RFID Printer
SATO WWCLP1D01-NAR RFID Printer
SATO WWCLP1D01-NAR RFID Printer
SATO WWCLP1D01-NAR RFID Printer
SATO WWCLP1D01-NAR RFID Printer
SATO WWCLP1D01-NAR RFID Printer
SATO WWCLP1D01-NAR RFID Printer SATO WWCLP1D01-NAR RFID Printer SATO WWCLP1D01-NAR RFID Printer SATO WWCLP1D01-NAR RFID Printer SATO WWCLP1D01-NAR RFID Printer

Frequently Purchased Together
Total: $00.00
Full specifications (PDF)

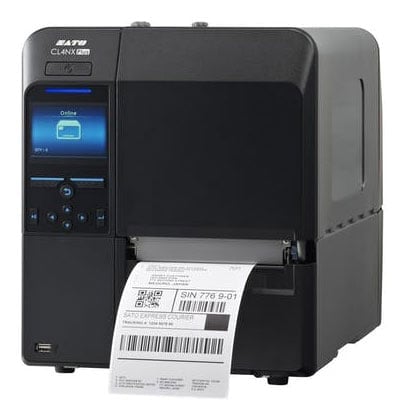

SATO CL4NX Plus Barcode Label Printer Model Overview

The CL4NX Plus printer offers a vast array of standard features that are unequaled by its competition. Printer setups, operation, and maintenance are supremely easy and intuitive.

Key features:
  • Full color interactive LCD with Intuitive Menu Navigation
  • On-board Help Videos
  • Tool-less Maintenance
  • 10-inch media supply (Face-in/Face-out wind) and 600m ribbon (CSI/CSO) supported
  • Multiple Interfaces - Auto Switching
  • Competitive Emulations On-board - Auto Switching
  • Micro Label Print Mode
  • Print speeds up to 14 ips in either 203 or 305 dpi
  • HF or UHF RFID support
  • Smart Print Head and Pure Line Platen Roller

SATO's CL4NX Plus Printer sets a new and innovative industry standard for ease of use, intelligence, on-board industry emulations, connectivity, speed of processing data streams, user activity interface, and so much more.

Ease of Use
Built with integrity, designed with the operator and productivity in mind, CL4NX Plus is the next evolution in this product series and will surpass your expectations of today’s printing technology. With the support of up to 10-inch (254mm) OD of media and 1968-foot (600m) ribbon and incorporating Smart Print head technology to keep track of usage specific to the print head installed. The platen roller with the Pure Line indicator provides a visual wear indicator so users can be proactive when it is necessary to change this critical component. Speaking of those consumable components, the CL4NX Plus is still one of the easiest industrial tabletop printer models to replace the print head and platen roller with no tools required.

Micro Label Print Mode
The Micro Label Print Mode provides higher print accuracy for small pitch labels and can even dispense labels as small as 10mm. Using SATO Application Enabled Printing (AEP), you can create custom standalone applications that can be run directly on the printer independent of host software and connect peripheral devices directly to the printer such as keyboards, weigh scales, barcode scanner for data input.

RFID
Businesses can save labor, speed up their operations and enjoy many advantages from using the CLNX Plus RFID Series of printers. These RFID Series of printers can print text and barcodes on UHF, HF and NFC tags/labels and encode data in their embedded chips at the same time. In addition to being equipped with on-screen menus that save users the trouble of adjusting antenna position manually, the printer is capable of checking RFID chips prior to encoding to verify their readiness to use and prevent failures. Registering commonly used settings, can save up to 10 write/read tags/labels types. The user can now select and load these store settings to encode multiple media with the same printer. Having compatibility with specialty RFID labels/tags supports the encoding of various RFID labels/tags including tags used with metals.

60° Wide Print Head Opening with Pure Line Platen Roller
Best in class head opening of 60° will allow easier access to load media and perform routine maintenance. This Pure Line wear indicator on the platen roller provides a visual gauge as to when the platen needs to be replaced.

Micro Label Print Mode
Higher tolerance (+/-0.7 mm) for Increased print image accuracy when using small label sizes (<53mm length).

10-inch OD Media Supply and 600m ribbon
More media per roll and longer ribbon lengths means less downtime replenishing supplies.

14 ips print speed at either 203 or 305 dpi!
Up to 14 inches per second for fast batch printing. Best of class print speed at 305 dpi!

HF or UHF RFID modules
SATO RFID Series of printers can print text and barcodes on UHF, HF and NFC tags/labels and encode data in their embedded chips at the same time.

SATO Application Enabled Printing (AEP)
SATO’s Application Enabled Printing (AEP) Platform is a powerful on-board intelligence which enables customization of the printer operation to significantly simplify labeling operations and reduce business costs.

Industries Served:
Aerospace, Automotive, Education, Food Service, Government, Healthcare, Manufacturing, Retail, Supply Chain, track & trace, Transportation and logistics, Utilities, Wholesale

Full specifications (PDF)
Brand
SATO
Model
CL4NX Plus
Printer Options
Dispenser, Real-Time Clock, Rewinder
Max Print Width
4 inch
Label Core Size
3 inch
Printer Type
Industrial, RFID
Printing Technology
Thermal Transfer
Print Resolution
203 dpi
Interface Options
Bluetooth, Ethernet, Parallel, USB, NFC, Serial, EXT

Recommended Accessories

Category

  • Printer Accessories (7)
  • SATO Thermal Printhead (2)

Recommended Accessories for Model: SATO WWCLP1D01-NAR RFID Printer

Top Printer Accessories Purchased With SATO WWCLP1D01-NAR

See All Printer Accessories for SATO WWCLP1D01-NAR RFID Printer >

Top SATO Thermal Printhead Purchased With SATO WWCLP1D01-NAR

Frequently Asked Questions

The SATO CL4NX Plus RFID printer delivers industrial-grade performance with 203 dpi resolution, 14 inches per second print speed, and a 4.1-inch maximum print width. It features Smart Printhead technology, supports media up to 10-inch outer diameter with 1968-foot ribbon capacity, and includes integrated Micro Label Print Mode for precise labels as small as 10mm. The printer comes equipped with a built-in dispenser, rewinder, and real-time clock for comprehensive label production workflows.

This RFID printer offers extensive connectivity with USB, Ethernet, Bluetooth, Serial, Parallel, NFC, and an External Signal Interface (EXT) port. This multi-protocol approach ensures seamless integration with your existing warehouse management systems, mobile devices, and legacy equipment without requiring additional hardware adapters.

Yes, the CL4NX Plus is specifically designed for precision small label applications through its Micro Label Print Mode, which enables accurate printing of labels as small as 10mm. Combined with 203 dpi resolution and Smart Printhead technology, this printer delivers exceptional clarity and accuracy for high-density barcode and RFID tag labeling in warehouse and logistics environments.

The CL4NX Plus sets a new industry standard with unequaled standard features including advanced on-board industry emulations, superior connectivity options, faster data stream processing, and an intelligent user activity interface. The addition of Micro Label Print Mode and Smart Printhead technology represents a significant advancement in print accuracy and operational efficiency compared to earlier SATO generations.

Yes, the SATO WWCLP1D01-NAR is an HF RFID-enabled printer, allowing you to print and encode RFID tags directly on labels in a single pass. This integrated capability streamlines your labeling process and is ideal for asset tracking, inventory management, and supply chain applications that require both barcode and RFID identification.

The printer accommodates media rolls up to 10-inch outer diameter and supports ribbon lengths up to 1968 feet, providing extended operational periods between media changes. This high-capacity design reduces downtime in high-volume warehouse and distribution environments, making it ideal for continuous labeling operations.

The SATO WWCLP1D01-NAR RFID Printer is also known as SAT-WWCLP1D01NAR
