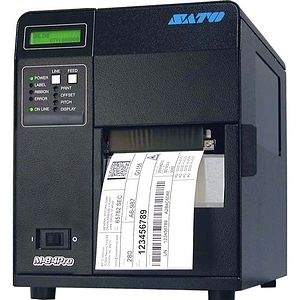

SATO WM8460141 Barcode Label Printer

SATO M84Pro - Industrial Label Printer, SATO M84Pro, Thermal Transfer, 609 dpi, 6 ips, 4.1" Max Print Width, 3" Core, 8.6" Outer Diameter, Ethernet. Includes: Cutter
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet
Print Resolution
609 dpi
Printer Options
Cutter
Max Print Width
4 inch
Label Core Size
3 inch
Ribbon Core Size
1 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • 609 maximum print resolution (dpi) for your convenience and easy usage
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Enjoy the optimal performance in today's on-demand labeling applications
  • Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
  • 5" maximum label width for dependable, desired results
  • 14" maximum label length for dependable, desired results
  • Supports fanfold media type for maximum feasibility and better accommodation of your requirements
  • Comes with 16 MB standard memory to ensure maximum efficiency with great quality printing results
  • Custom Size media size for better reliance and maximum usability
Read More
$4,219.50
3-year Premium Plus ($884.00)
3-year Premium ($730.00)
No Support
Add to Quote
SATO M84Pro(6) Barcode Label Printer Model Overview
The M84Pro(6) delivers 4.1" print width at rapid 10 inches per second with virtually Zero-Compile time by using the latest generation of 32-bit RISC 133 MHz CPU. The M84Pro(6) has a 609 dots-per-inch print resolution, which can be changed to either 203 or 305 dpi simply by switching printheads. All resolutions support the full 4.1" print width. All SATO Pro Series printers come with a minimum of 16MB RAM and 2MB Flash for storage of forms, fonts and graphics. Optional Flash module or PCMCIA memory card expands the printer storage capabilities even further. The M84Pro(6) is available with a vast array of interface connection plug-in modules making integration connectivity issues disappear.
SATO WM8460141 Barcode Label Printer Overview

The M84Pro(6) Label Printer - the rugged industrial generation of high performance printers with high resolution capabilities. The M84Pro(6) Label Printer offers user configurable print resolutions of 609 dpi. The M84Pro(6) Label Printer powerful electronics provide high throughput and print speeds of 6 ips at 609 dpi respectively.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
609
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • ITF-14
  • UCC/EAN 128
  • Code 128
  • Interleaved 2 of 5
  • Code 39
  • RSS
  • POSTNET
  • EAN-13
  • EAN-8
  • Code 93
  • MSI
  • Codabar
  • Bookland
  • Matrix 25
  • Data Matrix
  • Maxi Code
  • PDF-417
  • Micro PDF-417
Memory
Standard Memory:
16 MB
Flash Memory:
2 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Media Types & Handling
Media Type:
  • Fanfold
  • Roll Fed
  • Die-cut Label
  • Continuous Form
  • Direct Thermal Label
  • Synthetic Media
  • Notched
  • Black Mark
  • Tag Stock
  • Thermal Transfer Label
Media Size:
Custom Size
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
8.60"
Maximum Label Width:
5"
Maximum Label Length:
14"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13.4"
Width:
10.4"
Depth:
17.1"
Miscellaneous
Additional Information:
  • Label present sensor
  • Media Width: Max. 5" / Min. 0.87"
  • Reflective sensor for black mark
  • Adjustable transmissive sensor for gap
  • Automatic programmable setting of top of form
Platform Supported:
PC
Certifications & Standards:
  • CE
  • UL
  • CSA
  • TÜV
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
