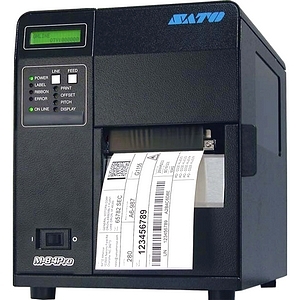

SATO WM8430141 Barcode Label Printer

SATO M84Pro - Industrial Label Printer, SATO M84Pro, Thermal Transfer, 305 dpi, 8 ips, 4.1" Max Print Width, 3" Core, 8.6" Outer Diameter, Ethernet. Includes: Cutter
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet
Print Resolution
305 dpi
Printer Options
Cutter
Max Print Width
5 inch
Ribbon Core Size
1 inch
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 305 maximum print resolution (dpi) for better reliance and added usability
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
  • 5" maximum label width to easily accommodate your needs with added productivity
  • 32.80" maximum label length for your convenience and feasible usability
  • Supports roll fed media type for maximum feasibility and better accommodation of your requirements
  • Comes with 16 MB standard memory to make you productive with the direct thermal/thermal transfer printer smooth performance
  • Custom Size media size for dependable, efficient results with maximum productivity
Read More

Need a different version? See all SATO M84Pro(3) Barcode Label Printers

$3,642.00
Recommended TrueSupport Coverage (/mo.)
Add to Quote
Add to My Shopping List Add to Compare
SATO WM8430141 Barcode Label Printer
SATO WM8430141 Barcode Label Printer SATO WM8430141 Barcode Label Printer SATO WM8430141 Barcode Label Printer
SATO WM8430141 Barcode Label Printer
SATO WM8430141 Barcode Label Printer
SATO WM8430141 Barcode Label Printer
Full specifications (PDF)
SATO M84Pro(3) Barcode Label Printer Model Overview
The M84Pro(3) delivers 4.1" print width at rapid 10 inches per second with virtually Zero-Compile time by using the latest generation of 32-bit RISC 133 MHz CPU. The M84Pro(3) has a 305 dots-per-inch print resolution, which can be changed to either 203 or 609 dpi simply by switching printheads. All resolutions support the full 4.1" print width. All SATO Pro Series printers come with a minimum of 16MB RAM and 2MB Flash for storage of forms, fonts and graphics. Optional Flash module or PCMCIA memory card expands the printer storage capabilities even further. The M84Pro(3) is available with a vast array of interface connection plug-in modules making integration connectivity issues disappear.
SATO WM8430141 Barcode Label Printer Overview

The M84Pro(3) Label Printer - the rugged industrial generation of high performance printers with high resolution capabilities. The M84Pro(3) Label Printer offers user configurable print resolutions of 305 dpi. The M84Pro(3) Label Printer powerful electronics provide high throughput and print speeds of 8 ips at 305 dpi respectively.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
305
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • ITF-14
  • UCC/EAN 128
  • Code 128
  • Interleaved 2 of 5
  • Code 39
  • RSS
  • POSTNET
  • EAN-13
  • EAN-8
  • Code 93
  • MSI
  • Codabar
  • Bookland
  • Matrix 25
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
Memory
Standard Memory:
16 MB
Flash Memory:
2 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Form
  • Direct Thermal Label
  • Thermal Transfer Label
  • Synthetic Media
  • Tag Stock
  • Black Mark
  • Notched
Media Size:
Custom Size
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
8.60"
Maximum Label Width:
5"
Maximum Label Length:
32.80"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13.4"
Width:
10.4"
Depth:
17.1"
Miscellaneous
Additional Information:
  • Label present sensor
  • Media Width: Max. 5" / Min. 0.87"
  • Reflective sensor for black mark
  • Adjustable transmissive sensor for gap
  • Automatic programmable setting of top of form
Platform Supported:
PC
Certifications & Standards:
  • CE
  • UL
  • CSA
  • TÜV
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
