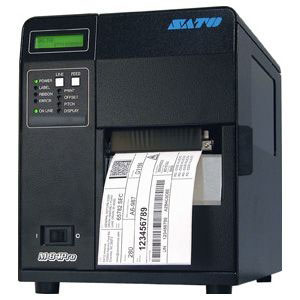

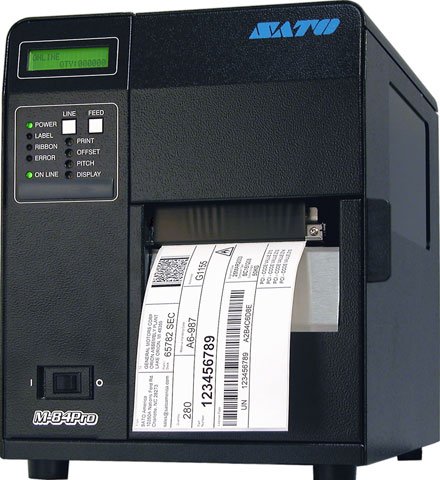

SATO WM8430021 Barcode Label Printer
The M84Pro(3) delivers 4.1" print width at rapid 10 ips with virtually Zero-Compile time by using the latest generation of 32-bit RISC 133 MHz CPU. The M84Pro(3) has a 305 dots-per-inch print resolution, which can be changed to either 203 or 609 dpi simply by switching printheads. All resolutions support the full 4.1" print width. All SATO Pro Series printers come with a minimum of 16MB RAM and 2MB Flash for storage of forms, fonts and graphics. Optional Flash module or PCMCIA memory card expands the printer storage capabilities even further. The M84Pro(3) is available with a vast array of interface connection plug-in modules making integration connectivity issues disappear.
Technical Information
- Maximum Mono Print Speed: 8 in/s
- Maximum Print Resolution: 305 dpi
- Print Color: Monochrome
- Maximum Print Width: 4.10"
- Recommended Use: Label Print
- Barcode Symbology Supported:
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- Code 39
- Code 93
- Code 128
- Codabar
- MSI
- Bookland
- Industrial 2 of 5
- Interleaved 2 of 5
- Matrix 25
- POSTNET
- GS1-128
- GS1 DataBar
- PDF-417
- Micro PDF-417
- Truncated PDF417
- Maxi Code
- Data Matrix
- QR Code
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Product Series: Pro
- Brand Name: Sato
- Manufacturer: Sato Corporation
- Product Model: M84Pro(3)
- Product Name: M84Pro(3) Label Printer
Physical Characteristics
- Height: 13.4"
- Width: 10.4"
- Depth: 17.1"
- Form Factor: Desktop
- Weight (Approximate): 39.68 lb
Interfaces/Ports
- USB: Yes
Media Types & Handling
- Maximum Label Width: 5"
- Media Type:
- Roll Fed
- Continuous Label
- Fanfold
- Die-cut Label
- Synthetic Media
- Tag Stock
- Black Mark
- Gap
- Notch
- Media Sensor:
- Adjustable Media Sensor
- Reflective Media Sensor
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Memory
- Standard Memory: 16 MB
- Flash Memory: 2 MB
Other
- Platform Supported: PC
Warranty
- Limited Warranty: 1 Year
Brand | SATO |
Model | M84Pro(3) |
Print Method | Thermal Transfer |
Print Speed | 8 |
Labels Per Day | 5,001 - 10,000 |
Print Resolution | 305 dpi |
Max Roll Outer Diameter | 8.6 |
Label Core | 3 inches |
Interface Options | USB |
Printer Type | Industrial |
Max Label Width | 5.00 |
Maximum Print Width | 4.10 |
Printer Mobility | Not Mobile |
Ribbon Core | 1 |
SATO Platen Roller (PR0730100)
Replacement Platen Roller for M8490Se, M8485S, M8459S, or M8490S.
|
$128.80 + Add to Quote |
|
SATO (PR7770100)
Label Sensor Assembly - For Use with Sato CL412, CL408E and CL412E, This part is also known as the Pitch Sensor Sub.
|
$152.30 + Add to Quote |
|
SATO (MA0303022)
Pan head screw for CL408E printer
|
$10.40 + Add to Quote |
|
SATO (WWCL45900)
4 MB flash memory kit.
|
Why don't we show the price?
|
|
SATO (WWCL45060)
Parallel plug-in interface card.
|
Why don't we show the price?
|
SATO Label (53S001012)
4" x 2" Thermal transfer paper label. 3000 labels/roll, 4 roll case.
|
$107.50 + Add to Quote |
|
SATO Label (53S005302)
3" x 1" Thermal transfer polyester label. 5800 labels/roll, 4 roll case.
|
$446.10 + Add to Quote |
|
SATO Label (53S002012)
4" x 2" Direct thermal paper label. 3000 labels/roll, 4 roll case. Also available as a roll (Part# 53S002012-R).
|
$189.80 + Add to Quote |
|
SATO Label (53S005313)
4" x 3" Thermal transfer polyester label. 2000 labels/roll, 4 roll case.
|
$557.90 + Add to Quote |
|
SATO Label (53S005124)
6" x 8" Thermal transfer polypropylene label. 750 labels/roll, 4 roll case.
|
$349.00 + Add to Quote |
SATO T110A Premier (12S000112)
4.3" x 1345' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 25, Core Size: 1", Available as a single roll (12S000112-R)
|
$1,114.30 + Add to Quote |
|
SATO T101A Standard (12S000157)
T101A Standard, 4.3" x 1345' Black Wax Ribbon, Compatible with Industrial printers and Paper labels, rolls/case: 24, Core Size: 1", single case. Available as a single roll (12S000157-R)
|
$450.00 + Add to Quote |
|
SATO T101A Standard (12S000160)
3.75" x 1345' Black Wax Ribbon, Compatible with Industrial printers and Paper labels, rolls/case: 24, Core Size: 1", Available as a single roll (12S000160-R)
|
$401.00 + Add to Quote |
|
SATO T101A Standard (12S000159)
6.75" x 1345' Black Wax Ribbon, Compatible with Industrial printers and Paper labels, rolls/case: 12, Core Size: 1", Available as a single roll (12S000159-R)
|
$400.00 + Add to Quote |
|
SATO T101A Standard (12S000158)
5.0" x 1345' Black Wax Ribbon. Compatible with Industrial Printers. 24 ribbon case. Used with paper labels. Also available as a single roll (Part# 12S000158-R).
|
$534.60 + Add to Quote |
SATO M84Pro (2) (WWM845800)
Replacement Printhead Kit, Resolution: 203 dpi, Compatible Printer Model M84Pro (2)
|
$614.00 + Add to Quote |
|
SATO M84Pro (WWM845810)
(2) Replacement Printhead Kit, 300 dpi print resolution, Compatible Printer Model M84Pro
|
$744.00 + Add to Quote |
|
SATO M84PRO (WWM845820)
Replacement Printhead Kit, 609 dpi, Compatible Printer Model M84PRO
|
$1,336.30 + Add to Quote |
support plan options |
![]() |
![]() |
||
---|---|---|---|---|
no support |
oem contract |
true support pro |
true support enterprise |
|
Live Tech Support ( 7:30am - 5pm CST ) | $189 / hr. | $189 / hr. | ✓ | ✓ |
Software /Firmware Updates | ✓ | ✓ | ✓ | |
Comprehensive Repair ( wear & tear ) | ✓ | ✓ | ✓ | |
High Priority Repair | ✓ | ✓ | ||
Device Troubleshooting ( via phone ) | ✓ | ✓ | ||
Device Setup | ✓ | ✓ | ||
Manufacturer RMA portal | ✓ | ✓ | ||
Mobile Device Management | ✓ | |||
$1,043.00 | $1,241.00 |
The SATO WM8430021 is also known as SAT-WM8430021 .
